APCON PS-A / 0209185
Product Description

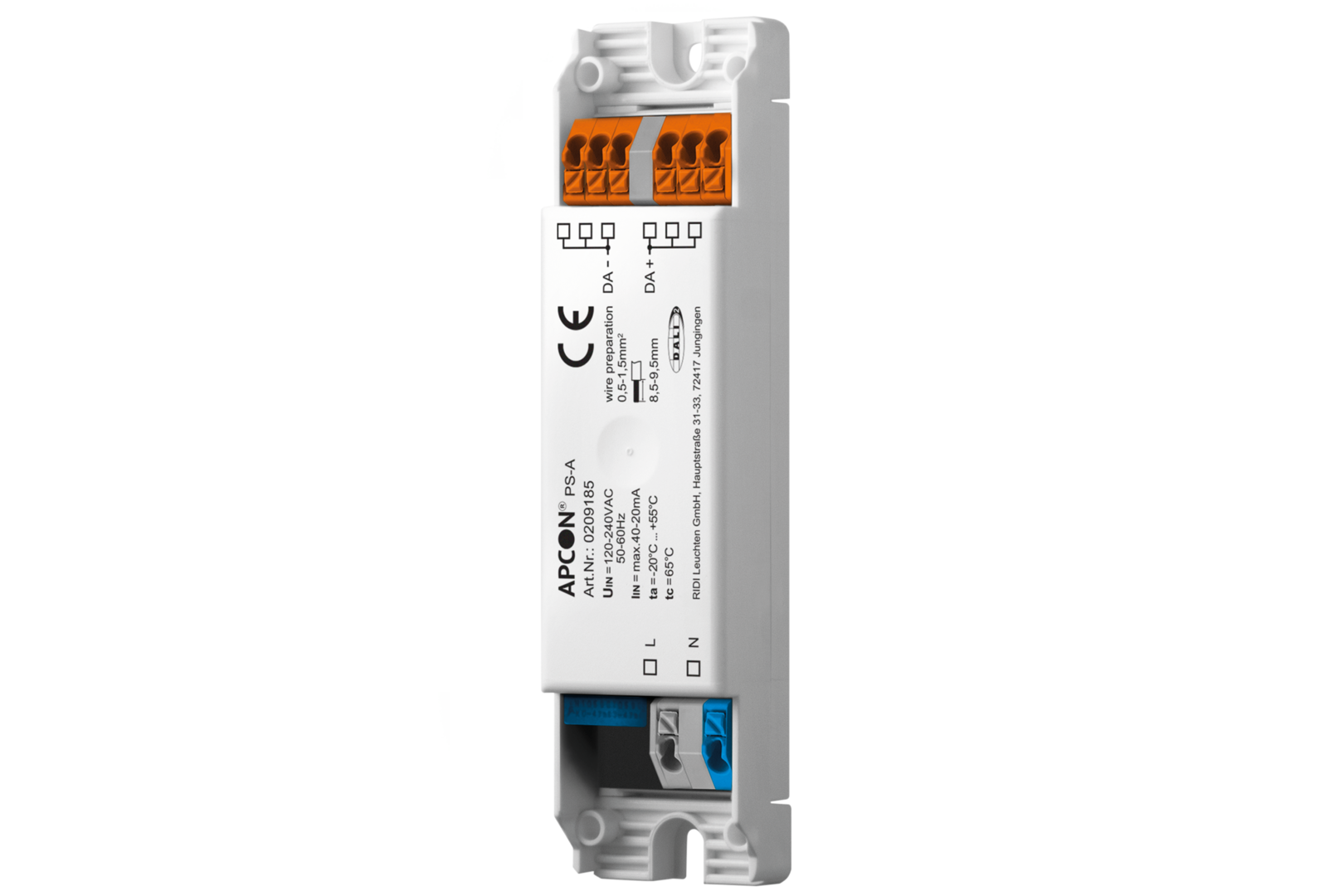

DALI-2 Power supply for supplying a DALI circuit. Plastic, white, similar to RAL 9010. With strain relief and contact hazard protection, suitable for ceiling insertion and device installation.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| GTIN | 4029299536454 |
General
| Product category | System component |
Dimensions
| Dimension L | 120 mm |
| Dimension B | 30 mm |
| Dimension H | 22 mm |
| Net weight | 0.067 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Conductor cross-section | 0.5 - 1.5 mm² |
Housing
| Colour | white, similar to RAL 9010 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–55 °C |
| Housing material | Plastic |
Electrical version
| Nominal voltage | 120–240 V, 50–60 Hz |
| Power consumption | 5.3 W |
| Output voltage | 9.5–22.5 V |
| Output current | 230 mA |
| Protection class | II |
Download Center
Product Description
DALI-2 Power supply for supplying a DALI circuit. Plastic, white, similar to RAL 9010. With strain relief and contact hazard protection, suitable for ceiling insertion and device installation.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Product information
Order Information
| GTIN | 4029299536454 |
General
| Product category | System component |
Dimensions
| Dimension L | 120 mm |
| Dimension B | 30 mm |
| Dimension H | 22 mm |
| Net weight | 0.067 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Conductor cross-section | 0.5 - 1.5 mm² |
Housing
| Colour | white, similar to RAL 9010 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–55 °C |
| Housing material | Plastic |
Electrical version
| Nominal voltage | 120–240 V, 50–60 Hz |
| Power consumption | 5.3 W |
| Output voltage | 9.5–22.5 V |
| Output current | 230 mA |
| Protection class | II |
Download Center
