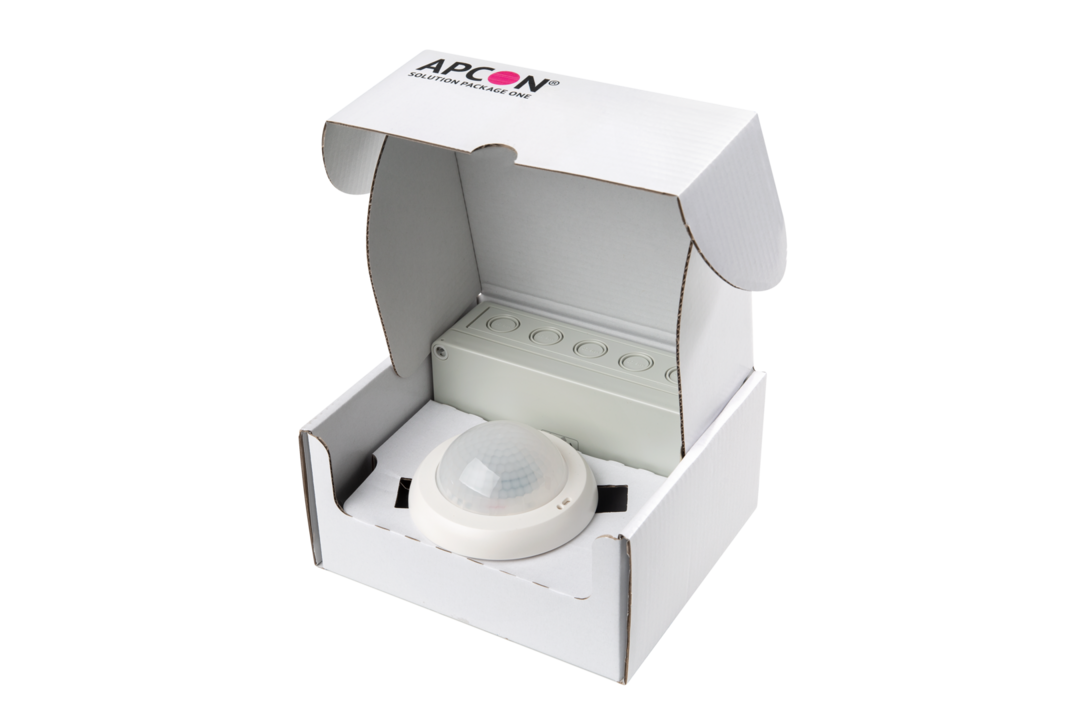

APCON BLE SOLUTION PACKAGE ONE / 0209500
| Product Description |
| Bluetooth Low Energy / BLE room solution package for connecting up to 20 dimmable Device Type 6 (DT6) and Tunable White DALI luminaires Device Type 8 (DT8). Consisting of an APCON hybrid box and a combined light and presence sensor DALI-2 Hybrid box for recessed ceiling installation or surface mounting. Light and presence sensor for recessed ceiling mounting. 14x break-out cable entries M16/20 and 4x double membrane connectors M20 included. Bluetooth Low Energy 2.4-2.483 GHz. The maximum cable length of the push-button input is 5 m. Connection of a daylight sensor and many presence sensors possible up to the power limit of the DALI supply. Room solution package featuring presence detection and daylight-dependent control, as well as the option to connect a push-button switch for switching the connected luminaires on and off and dimming them. Easy-to-maintain broadcast mode; all luminaires behave in the same way. Can be combined and expanded with other control elements such as push-button switches, Push-button couplers and sensors. Configuration and operation via the Casambi app. Daily, weekly and annual schedules for controlling the connected luminaires can be configured. Depending on the luminaire model, connected Tunable White luminaires can be controlled directly to the selected colour temperature within the range of 2700–6500 K. Furthermore, a circadian daylight profile (Human Centric Lighting – HCL) can be individually configured and stored within this range, which the connected luminaires then follow in unison. |
Order Information
|
Item number
|
0209500
|
|
GTIN
|
4029299608526
|
|
Delivery promise
|
2 working days (ex warehouse Jungingen)
i
The specified delivery promise applies to standard commercial quantities. It may vary for larger purchase quantities.
|
General
|
Product category
|
Solution package
|
|
Product sub-category
|
Bluetooth Low Energy / BLE Room Solution Package
|
|
Technology
|
Bluetooth Low Energy (BLE) | Human Centric Lighting (HCL)
|
|
Sensor
|
Light | Movement
|
Mounting
|
Mounting type
|
Attachment | Installation
|
|
Mounting position
|
Ceiling
|
|
Connection type
|
Screw terminal | plug-in terminal
|
|
Conductor cross-section
|
0.5–2.5 mm²
|
Housing
|
Permissible ambient temperature
|
-25–55 °C
|
|
Housing material
|
Plastic
|
Electrical version
|
Type of control
|
DALI-2
|
|
Nominal voltage
|
220–240 V, 0/50–60 Hz
|
|
Output voltage
|
9.5–22.5 V
|
|
Output current
|
50 mA
|
Sensor technology
|
Transverse detection range
|
Ø 24 m
|
|
Frontal detection range
|
Ø 8 m
|
|
Presence detection range
|
Ø 6.4 m
|
|
Angle of coverage
|
360°
|
|
Detection field
|
452 m²
|
|
Optimum mounting height
|
2.5 m
|
|
Maximum mounting height
|
10 m
|
|
Brightness setpoint
|
0 - 4095 lx
|
