Universal recessed luminaire and built-in luminaire for modular ceilings

Product family description and benefits
Filter Close Open
Product category
Length
Width
Height/depth
Range of application
Range of application HACCP
Mounting method
Ceiling type i
1. Mineral and plasterboard ceilings, wood panelled ceilings
2. Ceilings with concealed T-bars and symmetric mineral fibre and plasterboard tiles
3. Ceilings with concealed T-bars and symmetric metal tiles
4. Ceilings with exposed T-bars and lay-in ledged or grooved ceiling boards
5. Ceilings with concealed support rails and asymmetric mineral fibre board
6. Continuous trim strip ceilings with mineral fibreboard or metal tile ceilings
7. Metal plank systems Luminaire mounting parallel to the planks
8. Recessed luminaires for sports halls for Wilhelmi-type mineral fibre board ceilings
9. Recessed luminaires for sports halls for metal plank ceilings, modular dimension 100 (75 + 25 or 84 + 16)
Control
Colour
Luminaire shape
Protection rating
Temperature range
Rated luminous flux
Rated power
Luminaire efficiency
Light emission
Light distribution
Radiation pattern
UGR class
Colour temperature
Colour rendering index Ra
Items in stock
Your selection:

101 Articles in 6 Product series

Delete all filters

EBRME-LED...

Recessed luminaire with interchangeable LED modules, Module 600

Please select a model:

MPO Microprismatic cover with an opal diffuser
RIDI EBRME-LED...MPO

Protection rating: IP40-equivalent on the room side and IP20 on the ceiling side. MPO frame made from extruded aluminium profile with an inset transparent acrylic panel made from UV-stabilised PMMA featuring a microprism structure to reduce glare for suitable screen-based workplace lighting; embossed prismatic elements, external. Additional opal panel made of UV-stabilised PMMA on the inside. Homogeneously illuminated microprism panel.

SELECT MODEL

17

MPS Transparent, microprismatic cover
RIDI EBRME-LED...MPS

Protection rating: IP40-equivalent on the room side and IP20 on the ceiling side. MPS frame made from extruded aluminium profile with an inset transparent acrylic panel of UV-stabilised PMMA featuring a microprism structure to reduce glare, providing screen-compatible workplace lighting; the prisms are on the outside. Visible LED spots are displayed as circles on the microprism panel.

SELECT MODEL

16

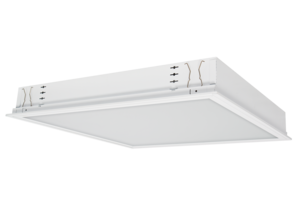

OS Opal-coloured artificial glass cover
RIDI EBRME-LED...OS

Protection rating: IP40-equivalent on the room side and IP20 on the ceiling side. Frame made from extruded aluminium profile with an inset opal acrylic panel made from UV-stabilised PMMA. Panel made from high-quality material, matt-finished on both sides, with a high transmission of 72 per cent. Homogenous illumination with no visible LED spots.

SELECT MODEL

12

EBRME6-R...

Recessed luminaire for replaceable LED lamps: RIDI-TUBE, Module 600

Please select a model:

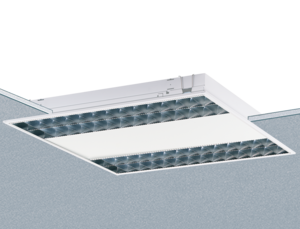

SM Matt parabolic mirror louvre
RIDI EBRME6-R...SM

SM parabolic mirror louvre made from high-reflectance, satin-finish anodised super-purity aluminium with a silver coating. For RIDI-TUBE lamps.

SELECT MODEL

12

EBRME6-R...-2...(E-DUO)

Recessed luminaire for replaceable LED lamp RIDI-TUBE, Module 600

Please select a model:

SM Matt parabolic mirror louvre
RIDI EBRME6-R...-2...SM

SM parabolic mirror louvre made from high-reflectance, satin-finish anodised super-purity aluminium with a silver coating. For use with RIDI-TUBE lamps (to be ordered separately).

SELECT MODEL

4

SM Matt parabolic mirror louvre, matt finish, including lamp
RIDI EBRME6-R...-2...SM-SET

SM parabolic mirror louvre made from high-reflectance, satin-finish anodised super-purity aluminium with a silver coating. Includes RIDI-TUBE lamp.

SELECT MODEL

4

EBRME9-R...

Recessed luminaire for replaceable LED lamp RIDI-TUBE, Module 600

Please select a model:

OS Opal-coloured artificial glass cover
RIDI EBRME9-R...OS

Frame (OS) made from aluminium profiles with an inset opal acrylic panel made of UV-stabilised PMMA, light transmission 82 per cent. For use with RIDI-TUBE lamps. Note: IP40 during mounting in enclosed ceilings. Protection rating on the ceiling side: IP20.

SELECT MODEL

10

EBRME-LED...OSD/MPOD/MPSD

Recessed luminaire with interchangeable LED modules, Module 600

Please select a model:

MPO Microprismatic cover with opal diffuser, IP54
RIDI EBRME-LED...MPOD

MPOD frame made from extruded aluminium profile with an integrated microprism panel, combined with an opal acrylic panel made from UV-stabilised PMMA. The opal panel is made from high-quality material, matt-finished on both sides, with a high transmission of 72 per cent. The microprism panel features prisms embossed inwards. Homogenous illumination with no visible LED spots.

SELECT MODEL

2

MPS Transparent, microprismatic cover, IP54
RIDI EBRME-LED...MPSD

MPSD frame made from extruded aluminium profile with an inset microprism panel made from UV-stabilised PMMA. Microprism panel with prismatic elements embossed outwards. LEDs are visible as circles.

SELECT MODEL

1

OS Opal-coloured art glass cover, IP54
RIDI EBRME-LED...OSD

OSD frame made from extruded aluminium profile with an inset opal acrylic panel made from UV-stabilised PMMA. The panel is made from high-quality material, matt-finished on both sides, with a high transmission of 72 per cent. Homogenous illumination with no visible LED spots.

SELECT MODEL

7

EBRME9-R...OSD/PSD

Recessed luminaire for replaceable LED lamp RIDI-TUBE, Module 600

Please select a model:

OS Opal-coloured art glass cover, IP54
RIDI EBRME9-R...OSD

OSD frame made from extruded aluminium profile with an inset opal acrylic panel made from UV-stabilised PMMA. Fitted with seals to ensure the required protection rating. For use with RIDI-TUBE lamps.

SELECT MODEL

16

Special luminaire for modular ceilings 600 and various suspended ceilings, also available in IP54

The EBRME is a universal recessed and surface-mounted luminaire; in other words, its profile is designed in such a way that it can be installed in the most commonly used types of ceilings or ceiling systems suspended from the raw ceiling. Here, too, a wide variety of optical controls or panels are available. The EBRME is also available with an IP54 protection rating. The EBRME LED variants are available with RIDI LED modules or with the LED RIDI-TUBE. In this design, the luminaires are highly efficient; the LED lamps are optionally replaceable.
  • Recessed or recessed luminaires for modular ceilings
  • Various optical controls and panels
  • Fixing kits for different types of ceiling
  • Variants with IP20 or IP40 protection rating on the room side or IP54 protection rating
  • Featuring RIDI LED technology
