RIDI Function module, Gear tray, Light and motion sensor, Light control, RIDI LINIA continuous row system, Spotlight, Trunking RIDI LINIA EVO: RIDI Leuchten

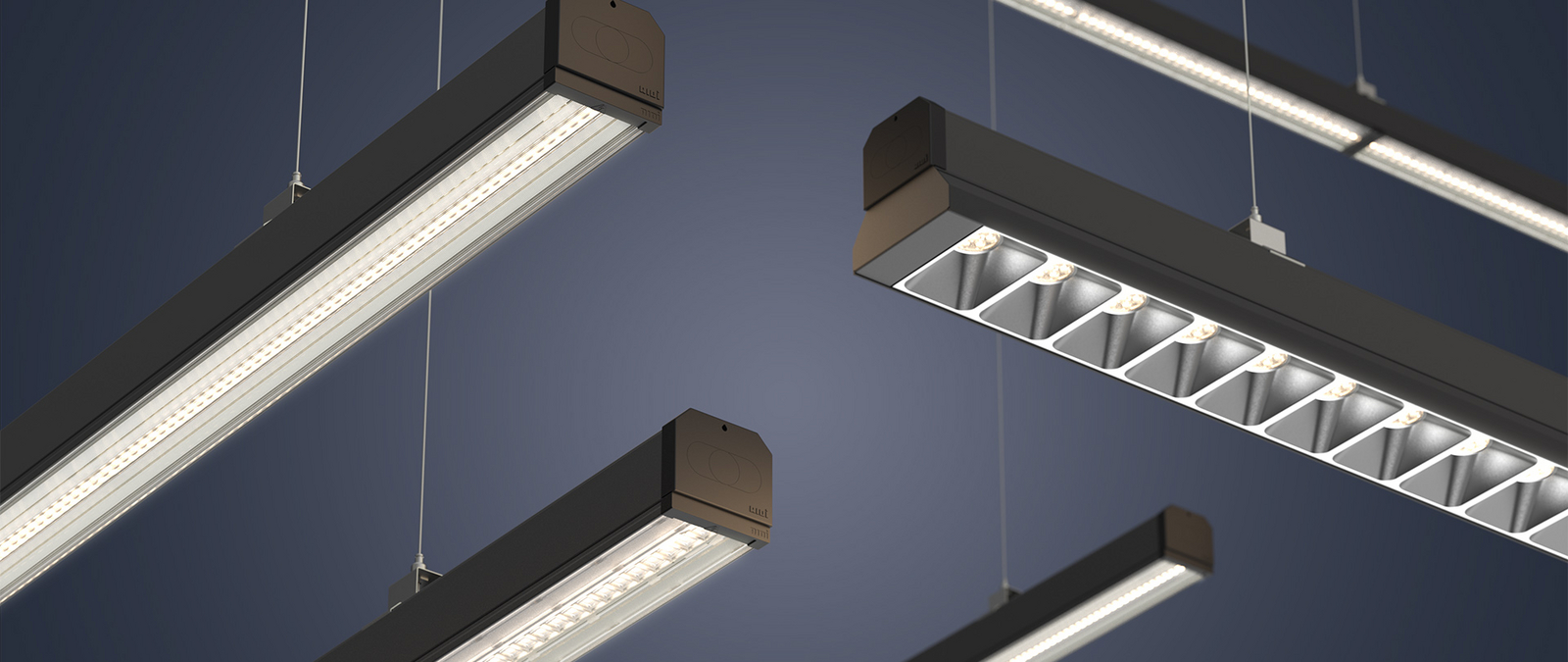

The modular light strip for every application

VL2TM…

RIDI LINIA EVO trunking

Please select a model:

5 Wiring 5 x 2.5 mm²

Can be used for light strips with IP20 and IP54 protection ratings. Flexible tappable through wiring X, length . Continuous blue colour coding.

SELECT MODEL

7 Wiring 7 x 2.5 mm²

Can be used for light strips with IP20 and IP54 protection ratings. Flexible tappable through wiring X, length . Continuous colour coding purple.

SELECT MODEL

13 Wiring 13 x 2.5 mm²

Can be used for light strips with IP20 and IP54 protection ratings. Flexible through wiring X, length , continuous colour coding 1x purple and 1x green.

SELECT MODEL

14 Wiring 14 x 2.5 mm²

Can be used for light strips with IP20 and IP54 protection ratings. Flexible tappable through wiring X, length . 2x purple colour coding throughout.

SELECT MODEL

HACCP Wiring 5/7/13/14 x 2.5 mm²

VL2TM-HACCP RIDI LINIA EVO trunking with a factory-fitted seal on the trunking. Suitable for use in food production areas where high-pressure cleaners are not used. Complies with the applicable requirements for HACCP, IFS and BRC Global Standard for Food certified companies

SELECT MODEL

PERFORMANCE VL2P

Maximum performance and outstanding light quality with a long service life, optimum efficiency, increased CRI and Tunable White – perfect PERFORMANCE. LED gear tray for the RIDI LINIA continuous-row lighting system with a service life of 100,000 hours, a luminous flux of up to 20,000 lumens and an efficiency of up to 206 lumens/watt.

Please select a model:

GL IP20 | IP50 gear tray with lens for the LINIA EVO VL2TM mounting rail system

LED gear tray for RIDI LINIA EVO continuous row system with lens in protection rating IP20. Simple clipping-in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

936

GLS Gear tray IP54 PROTECTED with lens for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO PROTECTED continuous row system with lens in protection rating IP54. Simple clipping-in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

1037

GMS-MP LED gear tray with enlarged light emission surface combined with microprismatic cover and a 24% indirect component, protection rating IP54.

LED gear tray for RIDI LINIA EVO continuous row lighting system with microprismatic cover, wide beam distribution characteristic with a luminous intensity distribution of 76% direct-indirect, protection rating IP54. Easy to clip in for electrical contact and mechanical fastening in the system-specific RIDI LINIA EVO mounting rail system.

SELECT MODEL

GP Gear tray IP20 | IP50 lamp housing with prismatic optics for the LINIA EVO VL2TM mounting rail system

LED gear tray for RIDI LINIA EVO continuous row system with prismatic optics with IP20 protection rating. Simple clipping in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

GPS Gear tray IP54 PROTECTED with prismatic optics for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO PROTECTED continuous row system with prismatic optics with IP54 protection rating. Simple clipping-in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

ML IP20 gear tray with Multilens technology for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system with IP20 protection rating. With innovative Multilens technology. Simple clipping in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

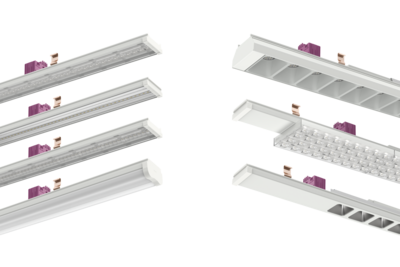

SELECT VL2S

Versatile application possibilities with high performance and reliable service life – the optimal choice: SELECT. LED gear tray for the RIDI LINIA EVO continuous-row lighting system with a service life of 100,000 hours, a luminous flux of up to 17,000 lumens and an efficiency of up to 191 lumens/watt.

Please select a model:

GFS-BQP IP54 gear tray with enlarged light-emitting surface and cross prismatic disc for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system made of extruded aluminium profile, white powder coated with enlarged light emission surface.

SELECT MODEL

GFS-MP IP54 gear tray with enlarged light-emitting surface and microprismatic cover for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system made of extruded aluminium profile, white powder coated with enlarged light emission surface.

SELECT MODEL

GFS-OS IP54 gear tray with enlarged light-emitting surface and opal cover for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system made of extruded aluminium profile, white powder coated with enlarged light emission surface.

SELECT MODEL

GL IP20 | IP50 gear tray with lens for the LINIA EVO VL2TM mounting rail system

SELECT MODEL

807

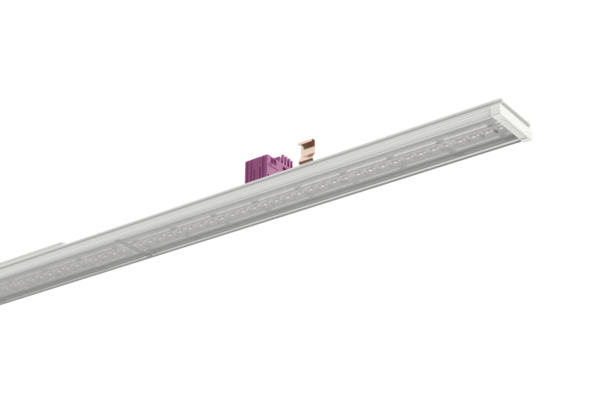

GLS IP54 PROTECTED gear tray with lens for LINIA EVO VL2TM mounting rail system

SELECT MODEL

577

GMS-MP LED gear tray with enlarged light emission surface combined with microprismatic cover and a 24% indirect component, protection rating IP54.

SELECT MODEL

GP Gear tray IP20 | IP50 lamp housing with prismatic optics for the LINIA EVO VL2TM mounting rail system

SELECT MODEL

388

GP-W IP20 gear tray with opal diffuser for the LINIA EVO VL2TM mounting rail system

SELECT MODEL

GPS Gear tray IP54 PROTECTED with prismatic optics for LINIA EVO VL2TM trunking system

SELECT MODEL

574

LEN IP20 gear tray with 4-row lens for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system with lens optic arrays and wide beam characteristics with IP20 protection rating. Simple clipping-in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

ML IP20 gear tray with Multilens technology for LINIA EVO VL2TM trunking system

SELECT MODEL

MRM IP20 gear tray with mini reflector for LINIA EVO VL2TM trunking system

LED gear tray for RIDI LINIA EVO continuous row system with surface-mounted reflectors for efficient light emission and direct wide beam light distribution with IP40 protection rating. Simple clipping-in for electrical contacting and mechanical fixing in the system-bound RIDI LINIA EVO trunking system.

SELECT MODEL

ENTRY VL2E

Tailored product selection for basic projects with an optimal price-performance ratio – easy ENTRY. LED gear tray for the RIDI LINIA EVO continuous-row lighting system with a service life of 50,000 hours, a luminous flux of up to 13,000 lumens and an efficiency of up to 170 lumens/watt.

Please select a model:

GL IP20 | IP50 gear tray with lens for the LINIA EVO VL2TM mounting rail system

SELECT MODEL

GP Gear tray IP20 | IP50 lamp housing with prismatic optics for the LINIA EVO VL2TM mounting rail system

SELECT MODEL

VL2MF-BRITT2

BRITT2 spotlight module for RIDI LINIA EVO VL2TM trunking

Please select a model:

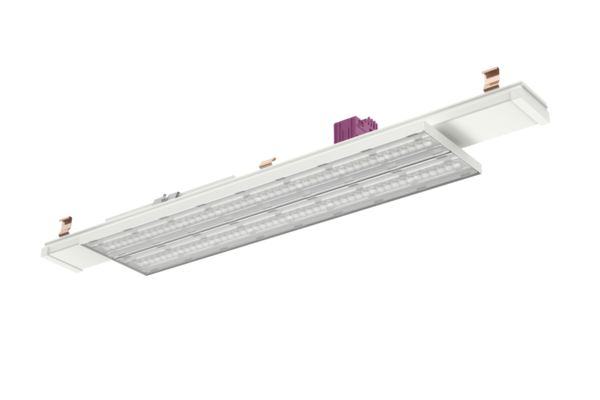

BU Wide beam lens | 2 fields

Slim and efficient panel for easy integration into the LINIA EVO VL2TM mounting rail system.

SELECT MODEL

R Double asymmetrical lens | 2 fields

Slim and efficient panel for easy integration into the LINIA EVO VL2TM mounting rail system.

SELECT MODEL

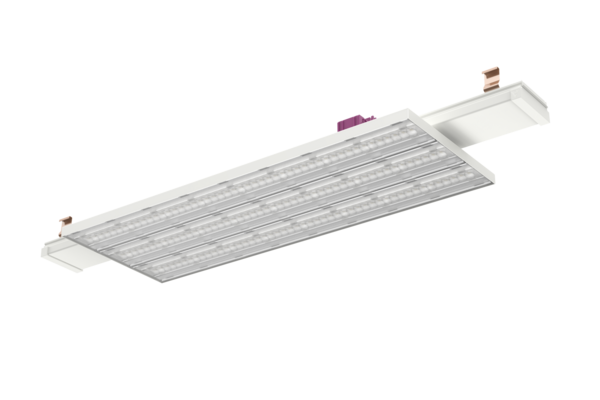

BU Wide beam lens | 3 fields

Slim and efficient panel for easy integration into the LINIA EVO VL2TM mounting rail system.

SELECT MODEL

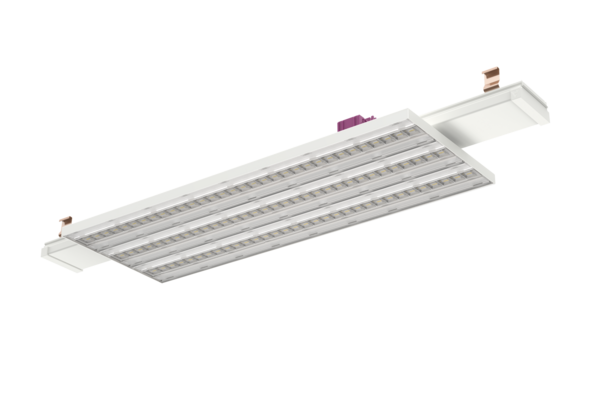

R Double asymmetrical lens | 3 fields

Slim and efficient panel for easy integration into the LINIA EVO VL2TM mounting rail system.

SELECT MODEL

VL2MF-CIRQUA

CIRQUA spotlight module for RIDI LINIA EVO VL2TM trunking

Please select a model:

L1-S Single-beam spotlight with a beam angle of 17°

SELECT MODEL

L1-M Single-beam spotlight with a medium beam angle of 22°

SELECT MODEL

L1-F Single-beam spotlight with a 36° flood beam angle

SELECT MODEL

L1-SF Single-beam spotlight with a 55° super-flood beam angle

SELECT MODEL

L2-S Dual-beam spotlight with a beam angle of 17°

SELECT MODEL

L2-M Dual-beam spotlight with a medium beam angle of 22°

SELECT MODEL

L2-F Dual-beam spotlight with a 36° flood beam angle

SELECT MODEL

L2-SF Twin-beam headlamp with a 55° Super-Flood beam angle

SELECT MODEL

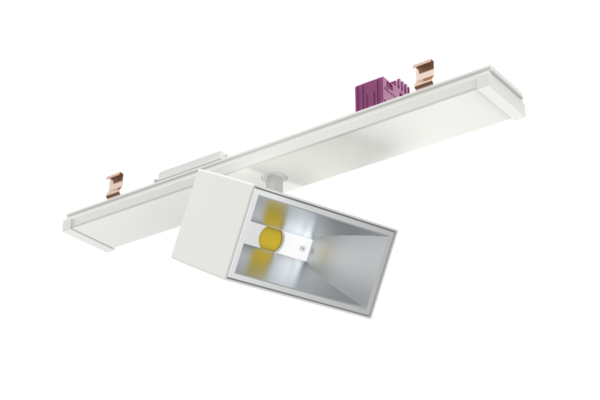

VL2MF-REY-NX

REY-NX spotlight module for RIDI LINIA EVO VL2TM trunking

Please select a model:

TB Suitable for use in aisleways, with a deep, wide beam

SELECT MODEL

VL2MF-TINO

TINO spotlight module for the RIDI LINIA EVO VL2TM trunking

Please select a model:

S Beam angle: Spot 18°

Reflector, specular, made of pure aluminium. Beam angle spot reflector 15°.

SELECT MODEL

M Beam angle: Medium 26°

Reflector, specular, made of pure aluminium. Medium reflector beam angle 24°.

SELECT MODEL

F Beam angle: Flood 36°

Reflector, specular, made of pure aluminium. Beam angle flood reflector 37°.

SELECT MODEL

SF Beam angle: Super-Flood 52°

Reflector, specular, made of pure aluminium. Beam angle Super Flood reflector 52°.

SELECT MODEL

Connection module

Connection module for RIDI LINIA EVO VL2TM trunking, DALI motion detectors, safety and emergency lights, indicator lights and individual consumers up to 4 or 16 amps. 13-pin design.

Please select a model:

13 Module insert connection module

SELECT MODEL

Dummy module

Blind module for use with various electrical components

Please select a model:

B Blind module for the use of various electrical components

SELECT MODEL

Hybrid box module

Hybrid box module for the RIDI LINIA EVO VL2TM mounting rail system. Combines standard DALI gear trays into a single wireless address.

Please select a model:

HB-CAS Hybrid box module for connecting up to 35 DALI gear trays/addresses (DT6 and/or DT8).

Hybrid box module with Bluetooth Low Energy / DALI

SELECT MODEL

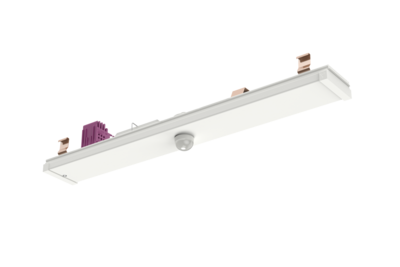

Emergency lighting module

Function module for RIDI LINIA EVO, emergency light modules

Please select a model:

NL 7-core and 13-pin designs

SELECT MODEL

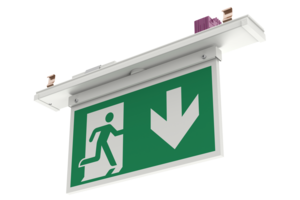

Escape sign module

Function module for RIDI LINIA EVO, emergency exit signage

Please select a model:

HW 7-core and 13-pin designs

SELECT MODEL

Sensor module

Sensor module for RIDI LINIA EVO for the VL2TM mounting rail system

Please select a model:

ON/OFF-M On/Off Master design

RIDI VL2MF-SEN500...APCON EASY (On/Off)...

VL2MF gear tray with master presence sensor for mounting on trunking, switch output for a maximum of 300 W LED power.

SELECT MODEL

ON/OFF-SL On/Off Slave design

RIDI VL2MF-SEN500...APCON EASY (Slave)...

VL2MF gear tray with slave presence sensor for extending the detection field. Mounted on trunking.

SELECT MODEL

DA2-M DALI-2 Master Broadcast design

RIDI VL2MF-SEN500...APCON EASY (DALI-2)...

VL2MF gear tray with DALI-2 master presence sensor for mounting on trunking. DALI-2 output for up to 32 VL2GF gear trays / DALI addresses.

SELECT MODEL

DA2-SL DALI-2 Slave Broadcast design

VL2MF gear tray with slave presence sensor for extending the detection field. For mounting on trunking.

SELECT MODEL

CAS-M DALI-2 / Casambi Master Broadcast design

VL2MF gear tray with Bluetooth Low Energy (BLE) light and presence sensor. Can be used either as a presence sensor and/or as a light sensor in a Casambi network.

SELECT MODEL

CAS-E Casambi Extension Design Version

RIDI VL2MF-SEN500...APCON EASY BLE (Casambi extension)

VL2MF gear tray with DALI-2 master presence sensor for mounting on trunking. DALI-2 output for up to 32 VL2GF gear trays / DALI addresses.

SELECT MODEL

DA2-APC DALI-2 Master design (with application controller)

VL2MF gear tray with a combined DALI-2 light and motion sensor for integration into an APCON INDIVIDUAL DALI light control system.

SELECT MODEL

Socket module

Socket module for variable insertion into RIDI LINIA EVO VL2TM trunking between VL2 gear trays. 5-core design.

Please select a model:

5 Module insert socket

SELECT MODEL

Track module

Busbar module for variable insertion into RIDI LINIA EVO VL2TM trunking between VL2 gear tray for standard 3-phase spotlights

Please select a model:

7 Module insert conductor rail

SELECT MODEL
