VL2S-GLS...

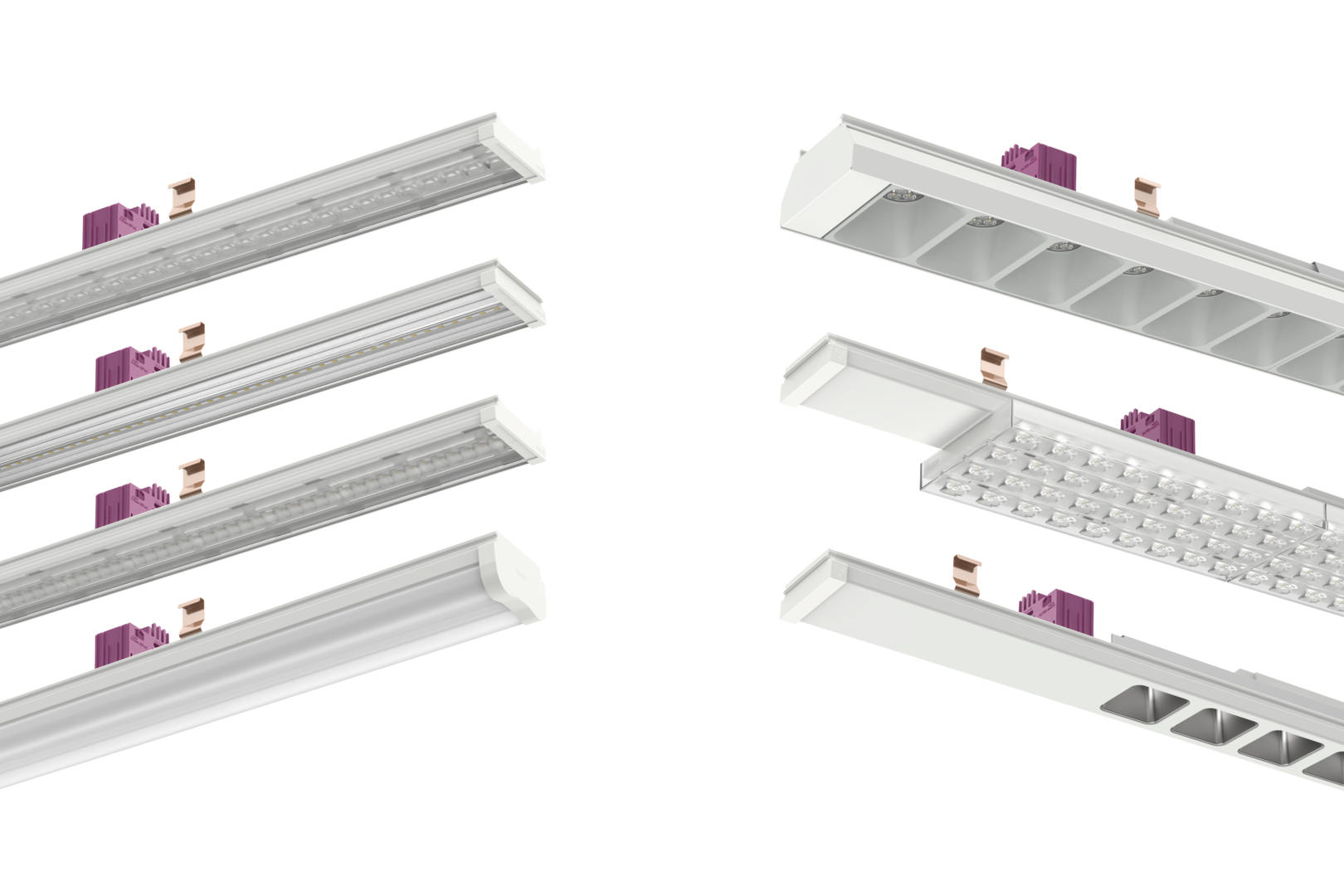

LED gear tray for the RIDI LINIA continuous-row lighting system, constructed from profiled, white galvanised sheet steel. Designed for applications with high technical requirements. Direct light distribution combined with a dual-chip lens made from clear, UV-stabilised PMMA, integrated flush with the gear tray, and offering optimum efficiency with protection rating IP54. Simple clip-in installation for electrical connection and mechanical fixing within the RIDI LINIA EVO trunking system via a 3-in-1 spring steel clip with triple function: retaining clip, fall protection clip and positioning aid for mounting in the trunking (VL2TM). The gear tray is suitable for new installations with continuous power supply through trunking (VL2TM). Toolless mounting; the gear tray can be used flexibly at any position via an electrical adapter, thanks to the continuous power supply through trunking (VL2TM).
2551347 - VL2S-GLS150-5FLWS840B0250
Control:
xFlex
Color temperature:
4000 K
Luminous flux (lm):
2630
Power (W): 15
Efficiency (lm/W): 175
2551348 - VL2S-GLS150-5FLWS830B0250
Control:
xFlex
Color temperature:
3000 K
Luminous flux (lm):
2540
Power (W): 15
Efficiency (lm/W): 169
2551349 - VL2S-GLS150-5FLWS850B0250
Control:
xFlex
Color temperature:
5000 K
Luminous flux (lm):
2630
Power (W): 15
Efficiency (lm/W): 175
2551350 - VL2S-GLS150-5FLWS865B0250
Control:
xFlex
Color temperature:
6500 K
Luminous flux (lm):
2540
Power (W): 15
Efficiency (lm/W): 169
2560367 - VL2S-GLS150-7DAWS830B0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560367SI - VL2S-GLS150-7DASI830B0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560367SW - VL2S-GLS150-7DASW830B0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560373 - VL2S-GLS150-7DAWS840B0400
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560373SI - VL2S-GLS150-7DASI840B0400
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560373SW - VL2S-GLS150-7DASW840B0400
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560379 - VL2S-GLS150-7DAWS850B0400
Control:
DALI-2
Color temperature:
5000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560379SI - VL2S-GLS150-7DASI850B0400
Control:
DALI-2
Color temperature:
5000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560379SW - VL2S-GLS150-7DASW850B0400
Control:
DALI-2
Color temperature:
5000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
2560385 - VL2S-GLS150-7DAWS865B0400
Control:
DALI-2
Color temperature:
6500 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560385SI - VL2S-GLS150-7DASI865B0400
Control:
DALI-2
Color temperature:
6500 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560385SW - VL2S-GLS150-7DASW865B0400
Control:
DALI-2
Color temperature:
6500 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560391 - VL2S-GLS150-7DAWS830TB0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560391SI - VL2S-GLS150-7DASI830TB0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560391SW - VL2S-GLS150-7DASW830TB0400
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3930
Power (W): 22
Efficiency (lm/W): 179
2560397 - VL2S-GLS150-7DAWS840TB0400
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
4080
Power (W): 22
Efficiency (lm/W): 185
