VL2MF-TINO...S...

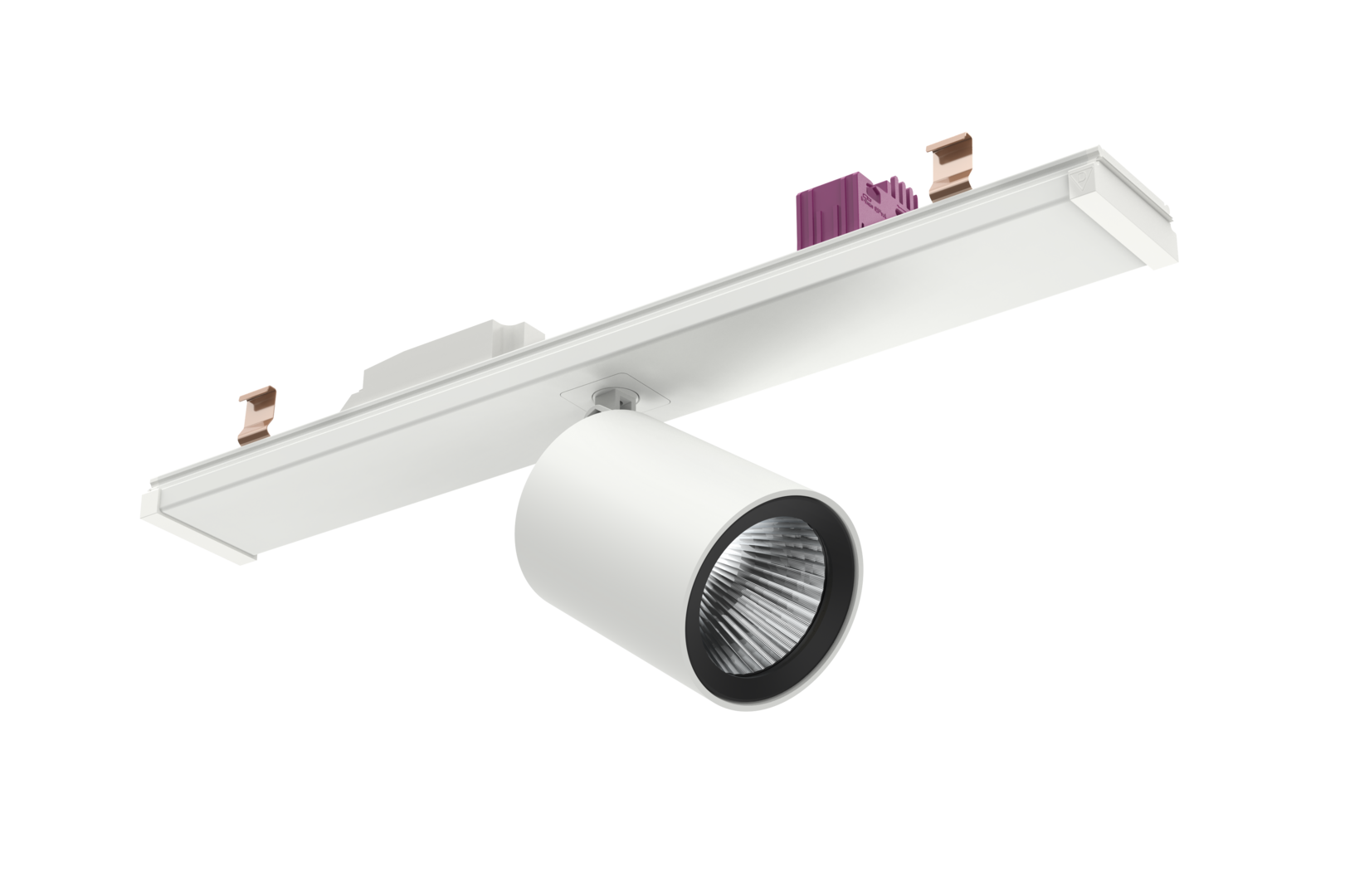

Spotlight module in a modern design for seamless mounting on the RIDI LINIA EVO trunking. Round reflector housing (Ø 92 mm) made of die-cast aluminium with internal cooling fins for maintenance-free passive cooling. The reflector housing is connected to the compact polycarbonate luminaire housing with an integrated LED driver via a swivel/tilt joint. Surfaces are powder coated in white (similar to RAL 9016) or black (FSW; similar to RAL 9005). Reflector, specular, made from pure aluminium. End ring of the reflector housing made of plastic. Reflector housing is adjustable for rotation up to 334° and adjustment up to 110°. COB module fitted. Seamless transition between the busbar and the luminaire housing. Protection rating IP20, protection class I
0326734//696 - VL2MF-TINO-5NDWS830S0350
Control:
On/Off
Color temperature:
3000 K
Luminous flux (lm):
3440
Power (W): 26
Efficiency (lm/W): 132
0326734SW696 - VL2MF-TINO-5NDSW830S0350
Control:
On/Off
Color temperature:
3000 K
Luminous flux (lm):
3440
Power (W): 26
Efficiency (lm/W): 132
0326738//696 - VL2MF-TINO-5NDWS840S0350
Control:
On/Off
Color temperature:
4000 K
Luminous flux (lm):
3620
Power (W): 26
Efficiency (lm/W): 139
0326738SW696 - VL2MF-TINO-5NDSW840S0350
Control:
On/Off
Color temperature:
4000 K
Luminous flux (lm):
3620
Power (W): 26
Efficiency (lm/W): 139
0336734//696 - VL2MF-TINO-7DAWS830S0350
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3440
Power (W): 26
Efficiency (lm/W): 132
0336734SW696 - VL2MF-TINO-7DASW830S0350
Control:
DALI-2
Color temperature:
3000 K
Luminous flux (lm):
3440
Power (W): 26
Efficiency (lm/W): 132
0336738//696 - VL2MF-TINO-7DAWS840S0350
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
3620
Power (W): 26
Efficiency (lm/W): 139
0336738SW696 - VL2MF-TINO-7DASW840S0350
Control:
DALI-2
Color temperature:
4000 K
Luminous flux (lm):
3620
Power (W): 26
Efficiency (lm/W): 139
