A compact lighting system for public spaces and transport areas

Product family description and benefits
Filter Close Open
Product category
Length
Width
Height/depth
Range of application
Mounting method
Ceiling type i
1. Mineral and plasterboard ceilings, wood panelled ceilings
2. Ceilings with concealed T-bars and symmetric mineral fibre and plasterboard tiles
3. Ceilings with concealed T-bars and symmetric metal tiles
4. Ceilings with exposed T-bars and lay-in ledged or grooved ceiling boards
5. Ceilings with concealed support rails and asymmetric mineral fibre board
6. Continuous trim strip ceilings with mineral fibreboard or metal tile ceilings
7. Metal plank systems Luminaire mounting parallel to the planks
8. Recessed luminaires for sports halls for Wilhelmi-type mineral fibre board ceilings
9. Recessed luminaires for sports halls for metal plank ceilings, modular dimension 100 (75 + 25 or 84 + 16)
Control
Colour
Luminaire shape
Protection rating
Temperature range
Rated luminous flux
Rated power
Luminaire efficiency
Light emission
Light distribution
Radiation pattern
Adjustability
UGR class
Colour temperature
Colour rendering index Ra
Emergency lighting
Overvoltage protection
Items in stock
Your selection:

122 Articles in 2 Product series

Delete all filters

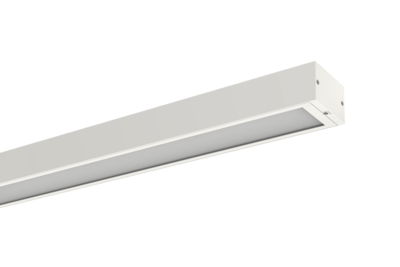

M125-A...

Surface-mounted luminaires for traffic areas with replaceable LED modules, IP65 protection rating

Please select a model:

AESG Satin-finished cover made of single-pane safety glass, with an asymmetric beam pattern
RIDI M125-A...AESGS

Cover: toughened safety glass panel, satin-finished, with an asymmetric frosted finish. Impact resistance: IK08.

SELECT MODEL

12

AS Satin-finish PC cover, with asymmetric light distribution
RIDI M125-A...AS

Satin-finish cover, made of polycarbonate with a wide beam, asymmetric prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

12

AS-US Satin-finish PC cover, asymmetric light distribution, 10 kV surge protection
RIDI M125-A...AS...US

Satin-finished cover, made of polycarbonate with a wide beam, asymmetric prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

3

ESG Satin-finished cover made of toughened safety glass
RIDI M125-A...ESGS

Cover: toughened safety glass panel, satin-finished, with wide beam. Impact resistance: IK08.

SELECT MODEL

12

MPO-US Microprismatic PC cover with opal diffuser, 10 kV surge protection
RIDI M125-A...MPO...US

Microprismatic PC cover with opal diffuser, wide beam. Impact resistance IK08.

SELECT MODEL

3

S Satin-finish PC cover
RIDI M125-A...S

Satin-finished cover, made of polycarbonate with a wide beam, symmetric prismatic profile; vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

12

S-US Satin-finish PC cover, 10 kV surge protection
RIDI M125-A...S...US

Satin-finish cover, made of polycarbonate with a wide beam, symmetrical prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

8

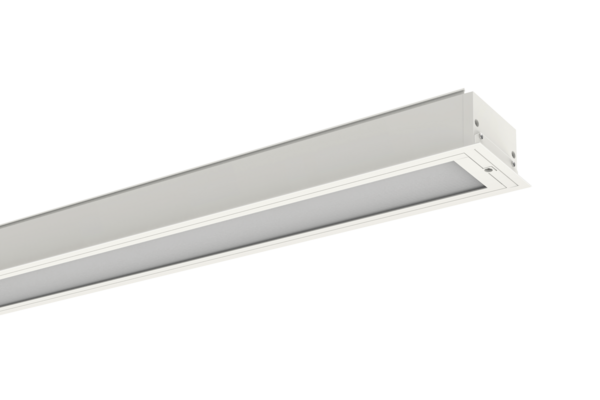

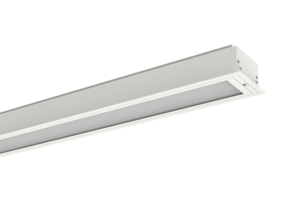

M125-E...

Recessed luminaire for transport areas with replaceable LED modules, IP65 protection rating

Please select a model:

AESG Satin-finished cover made of single-pane safety glass, with an asymmetric beam pattern
RIDI M125-E...AESGS

Cover: toughened safety glass panel, satin-finished, with an asymmetric bevelled edge. Impact resistance: IK08.

SELECT MODEL

12

AS Satin-finish PC cover, with asymmetric light distribution
RIDI M125-E...AS

Satin-finished cover, made of polycarbonate with a wide beam, asymmetric prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

12

AS-US Satin-finish PC cover, asymmetric light distribution, 10 kV surge protection
RIDI M125-E...AS...US

Satin-finished cover, made of polycarbonate with a wide beam, asymmetric prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

3

ESG Satin-finished cover made of single-pane safety glass
RIDI M125-E...ESGS

Cover: toughened safety glass panel, satin-finished, wide beam. Impact resistance: IK08.

SELECT MODEL

12

MPO-US Microprismatic PC cover with opal diffuser, 10 kV surge protection
RIDI M125-E...MPO...US

Microprismatic PC cover with opal diffuser, wide beam. Impact resistance IK08.

SELECT MODEL

3

S Satin-finish PC cover
RIDI M125-E...S

Satin-finish cover, made of polycarbonate with a wide beam, symmetrical prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

12

S-US Satin-finish PC cover, 10 kV surge protection
RIDI M125-E...S...US

Satin-finish cover, made of polycarbonate with a wide beam, symmetrical prismatic profile, vandal-proof. Impact resistance IK11+ 75 J.

SELECT MODEL

6

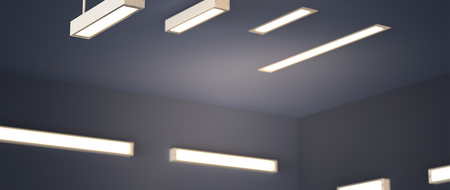

Safe lighting for decades to come!

The M125 is a compact lighting system designed for public areas such as underpasses, multi-storey car parks and traffic zones. Thanks to its exceptional robustness and durability, it is also suitable for prisons and other harsh environments that place the highest demands on a lighting system. The M125 is available in surface-mounted and recessed versions with various optical controls and beam patterns. Highly efficient LED technology and the family’s serviceable design, featuring interchangeable components, ensure long-term reliability in the project.
  • State-of-the-art LED technology
  • High IP65 protection rating
  • High impact resistance of at least IK08
  • Smooth surfaces for easy cleaning
