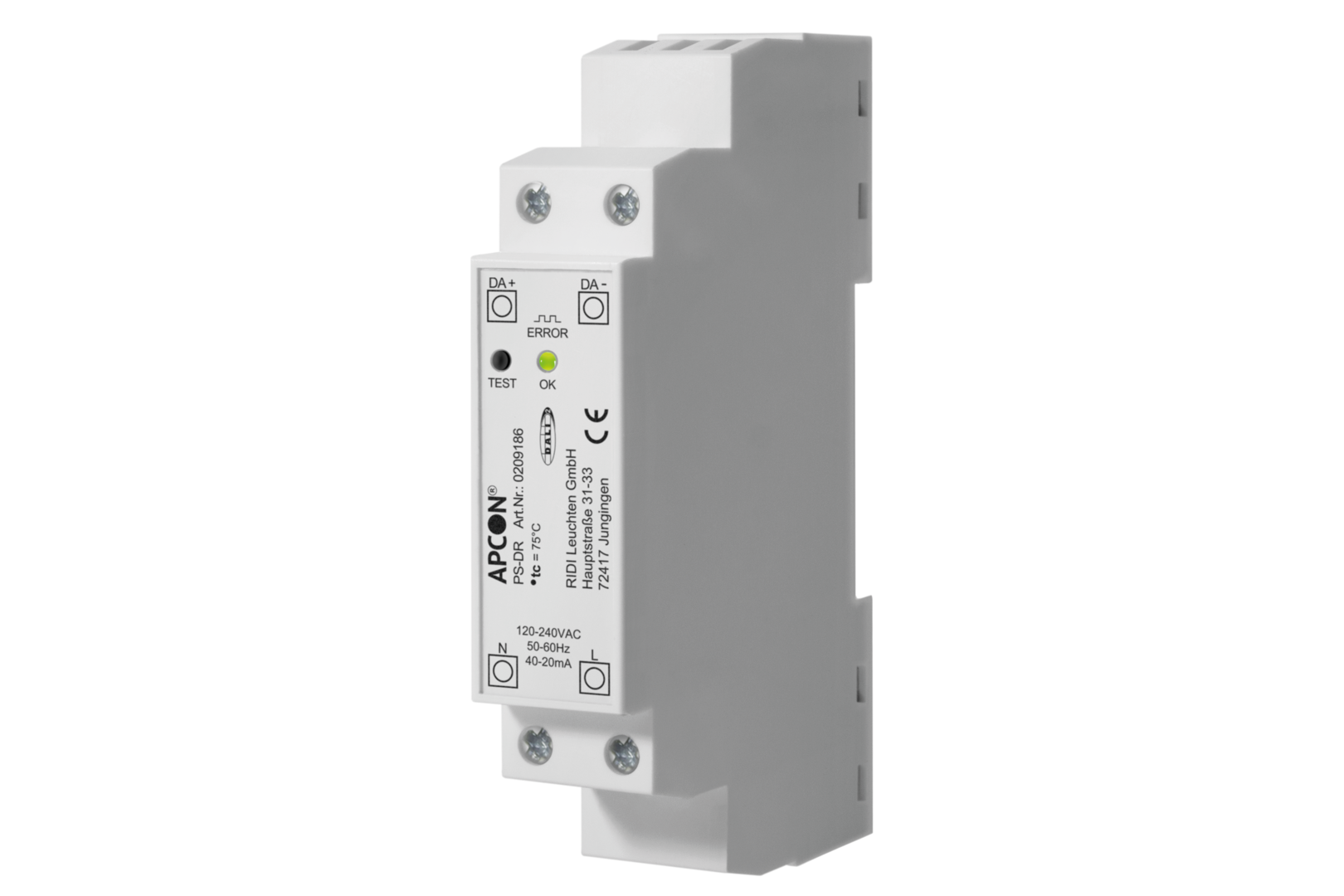

APCON PS-DR | 0209186
Product Description
DALI-2 Power supply for supplying a DALI circuit. Plastic, light grey, similar to RAL 7035. One sub-unit wide, suitable for DIN rail / top-hat rail mounting.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0209186 |
| GTIN | 4029299536461 |
| Delivery commitment | on demand |
General
| Product category | System component |
| Product sub-category | DALI-2 power supply |
Dimensions
| Dimension L | 98 mm |
| Dimension B | 17.5 mm |
| Dimension H | 56 mm |
| Net weight | 0.059 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Top-hat rail |
| Connection type | Screw terminal |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | light grey, similar to RAL 7035 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–55 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI |
| Nominal voltage | 120–240 V, 50–60 Hz |
| Power consumption | 5.3 W |
| Output voltage | 9.5–22.5 V |
| Output current | 250 mA |
| Protection class | II |
