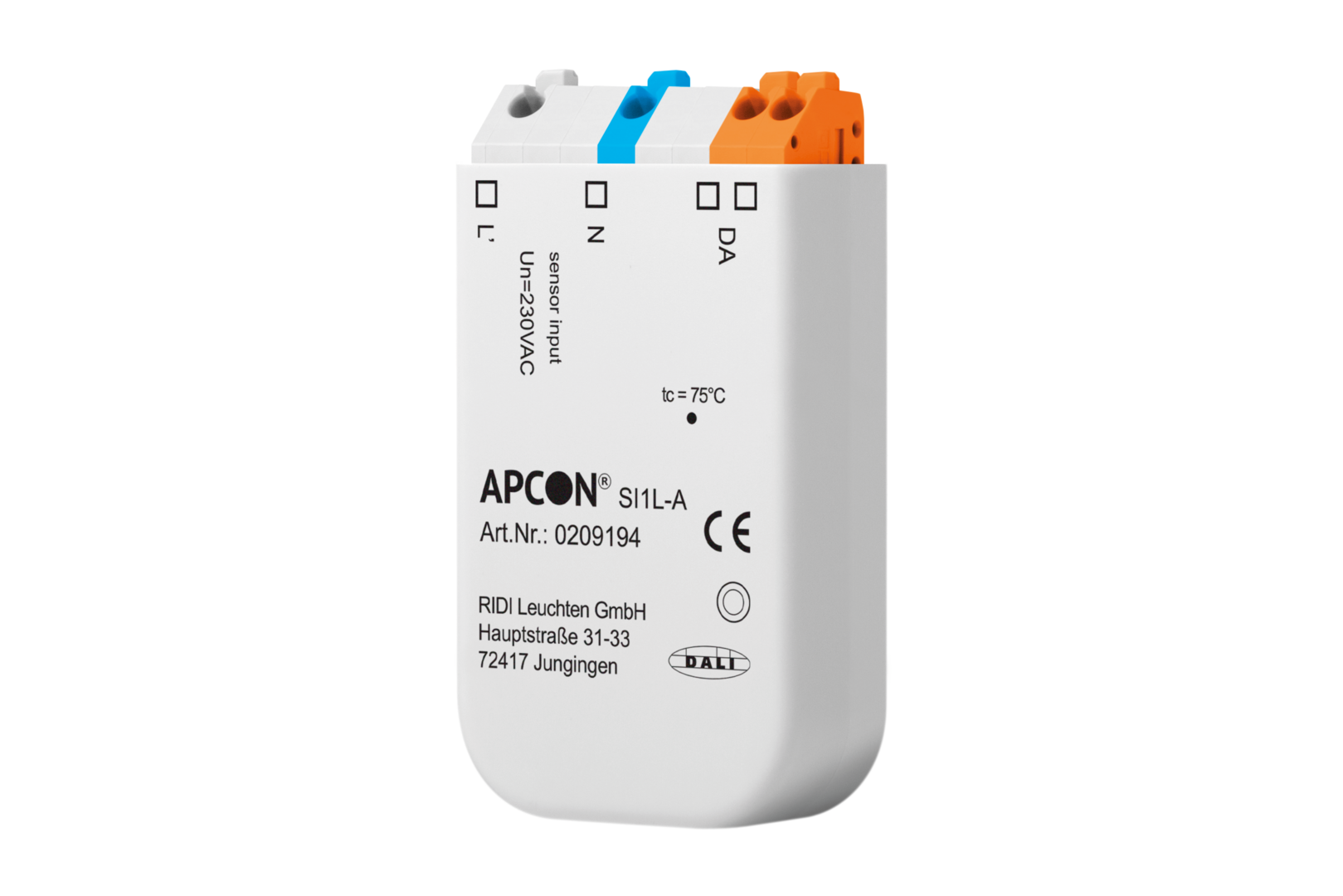

APCON SI1L-A / 0209194
Product Description
DALI module for connecting a 230 V AC switching signal. Converts a 230 V signal, for example from a motion detector, a light barrier or a limit switch, into DALI signals. Plastic, light grey, similar to RAL 7035. Suitable for device installation. Max. Max. cable length switching input 50m. Light values and run-on times can be set via software. Configuration via the "DALI Cockpit" PC software.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0209194 |
| GTIN | 4029299536546 |
General
| Product category | Operating and control element |
Dimensions
| Dimension L | 59 mm |
| Dimension B | 33 mm |
| Dimension H | 15 mm |
| Net weight | 0.014 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Installation box |
| Connection type | plug-in terminal |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| Colour | light grey, similar to RAL 7035 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–75 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI |
| Nominal voltage | 9.5–22.5 V, |
| Protection class | II |
