APCON DISP4W / 0209321
Product Description

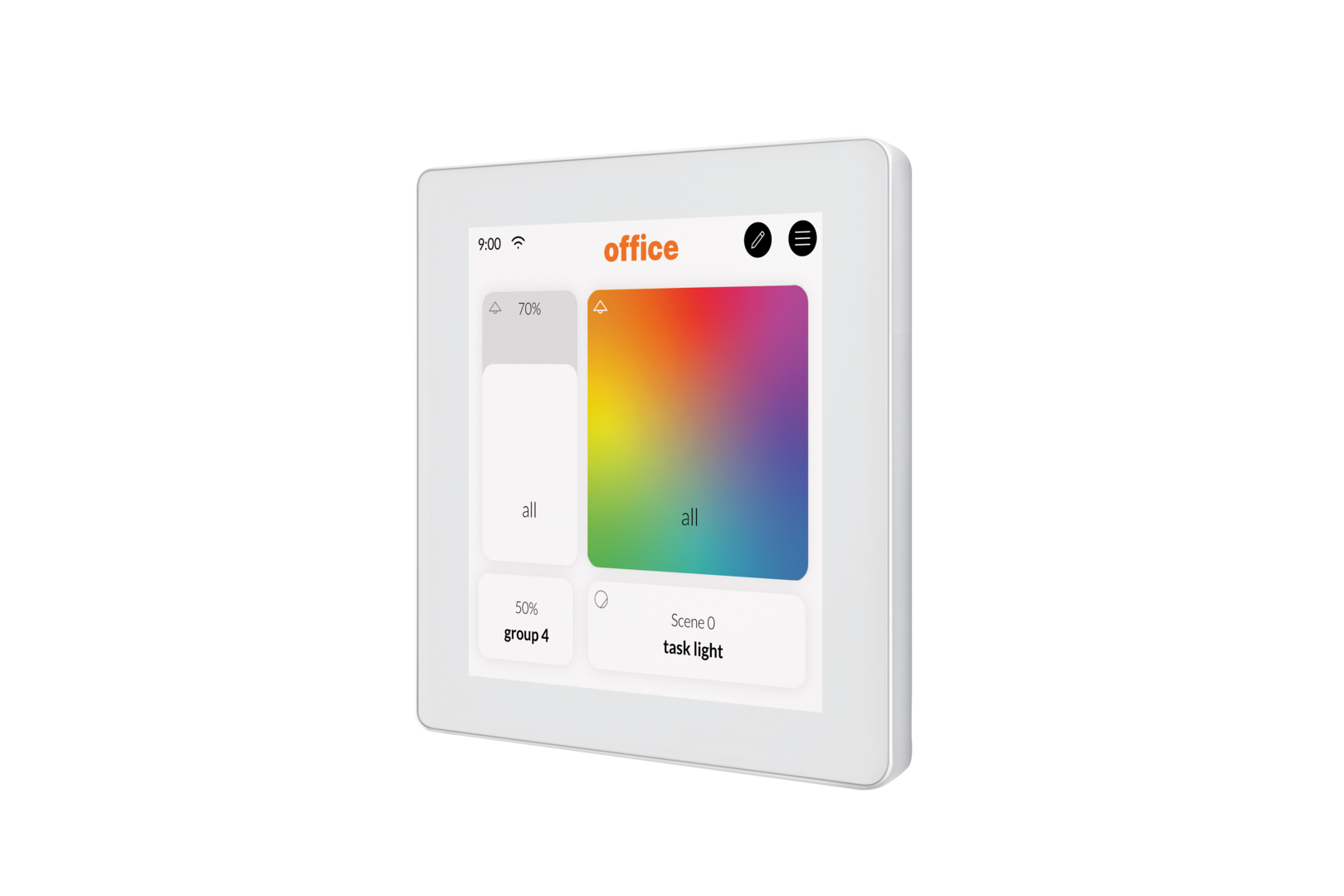

DALI-2 4"/24-bit colour display for configuring, controlling and operating a DALI circuit. Plastic, traffic white, similar to RAL 9016. Wall mounting on installation boxes. Customisable interfaces with numerous widgets for dimming, switching, scene control and RGB and Tunable White/TW colour light control. WLAN for integration into a higher-level building control system and for use as a PC interface.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0209321 |
| GTIN | 4029299554526 |
General
| Product category | Operating and control element |
Dimensions
| Dimension L | 88 mm |
| Dimension B | 88 mm |
| Dimension H | 8.5 mm |
| Net weight | 0.400 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Installation box |
| Connection type | plug-in terminal |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Permissible ambient temperature | -10–50 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 24–56 V, |
| Power consumption | 3.5 W |
| Protection class | II |
