APCON BLE-ASD / 0212530
Product Description

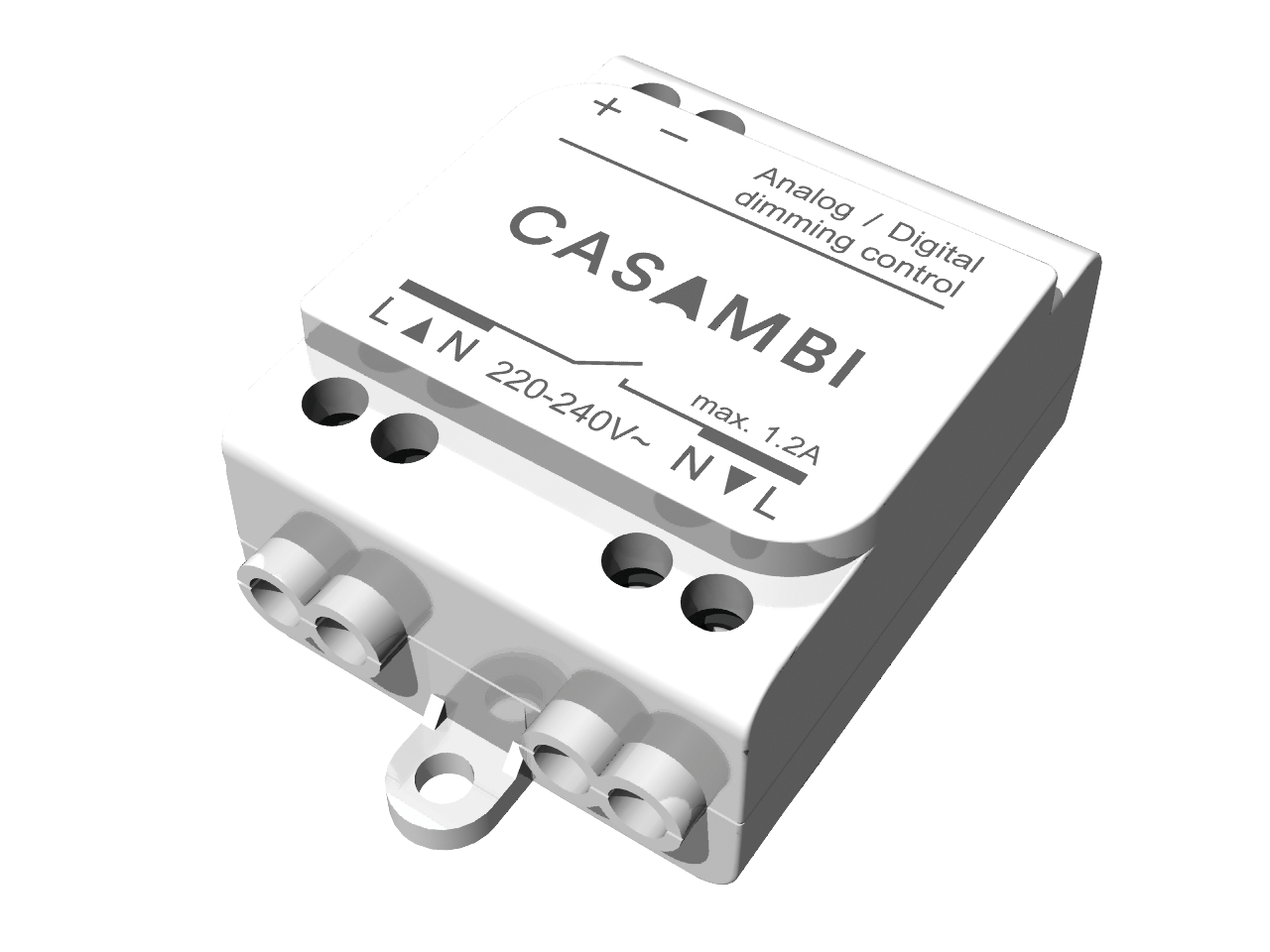

Bluetooth Low Energy radio module The wireless module enables the luminaire to be integrated into a Casambi network.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0212530 |
| GTIN | 4029299431988 |
General
| Product category | System component |
| Technology | Casambi |
Dimensions
| Dimension L | 57 mm |
| Dimension B | 36 mm |
| Dimension H | 23 mm |
| Net weight | 0.020 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Luminaire |
| Connection type | Screw terminal |
| Conductor cross-section | 0.75–2.5 mm² |
Housing
| Protection class | IP20 |
| Permissible ambient temperature | -20–50 °C |
Electrical version
| Type of control | DALI | Casambi |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Output voltage | 9.5–22.5 V |
| Output current | 7 mA |
| Protection class | II |
