VLMF-SEN 500-7 APCON SEN12-SM / 1500193
Product Description

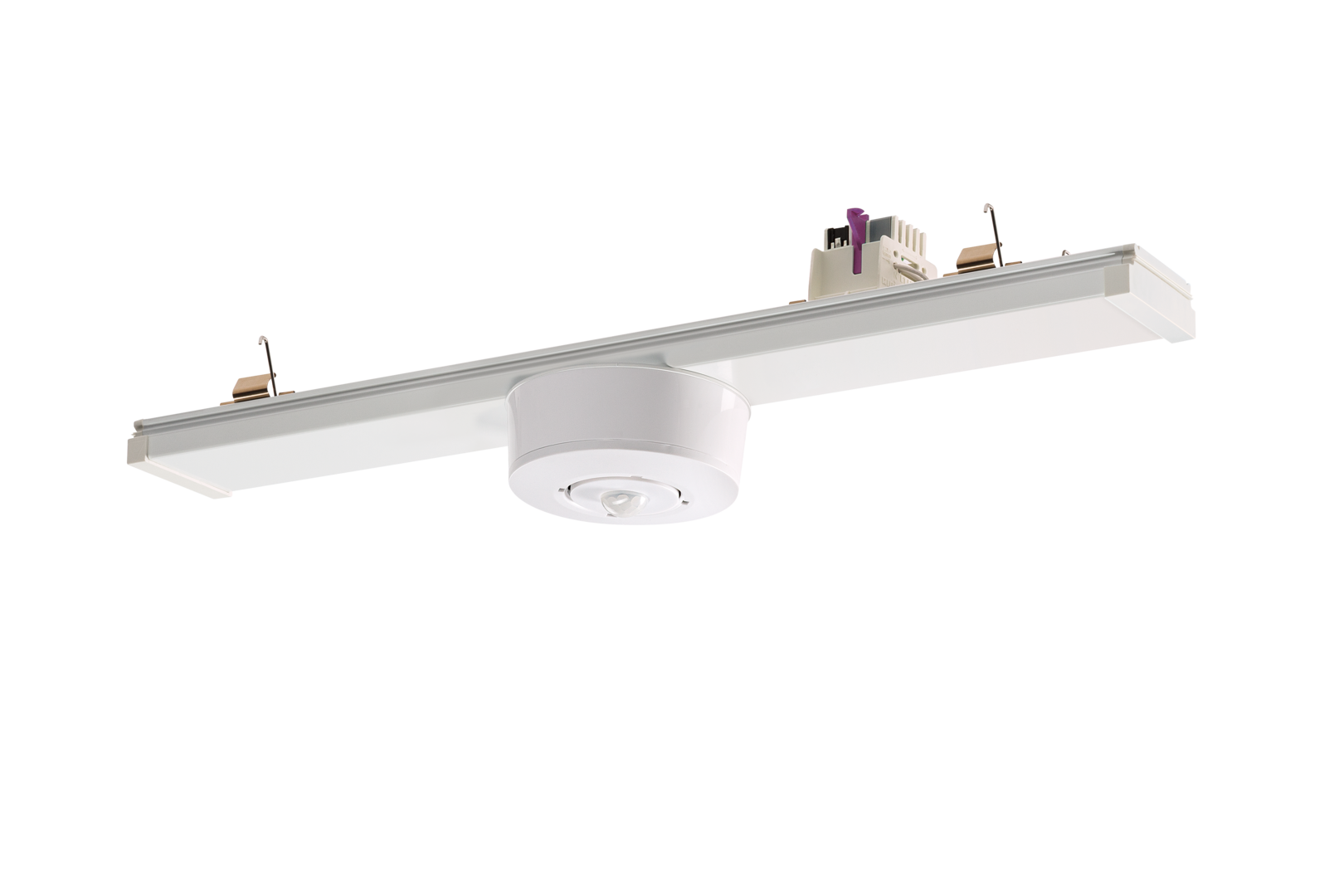

Design: Sensor module insert for mounting in VLTM trunking. VLMF supplementary modules … made of extruded aluminium, powder coated white, silver (-SI) or black (-SW). Spring steel clips for mounting to the trunking. The VLMF modules … can be positioned at variable distances between the VGLF gear trays ….
Electrical adapter allows the point at which current is drawn from the trunking to vary. Colour and optical coding for simple mounting. Mechanical coding to prevent incorrect mounting (reversed polarity protection).
Order Information
| Item number | 1500193 |
| GTIN | 4029299547481 |
General
| Product category | Light and motion sensor |
| Sensor | Light | Movement |

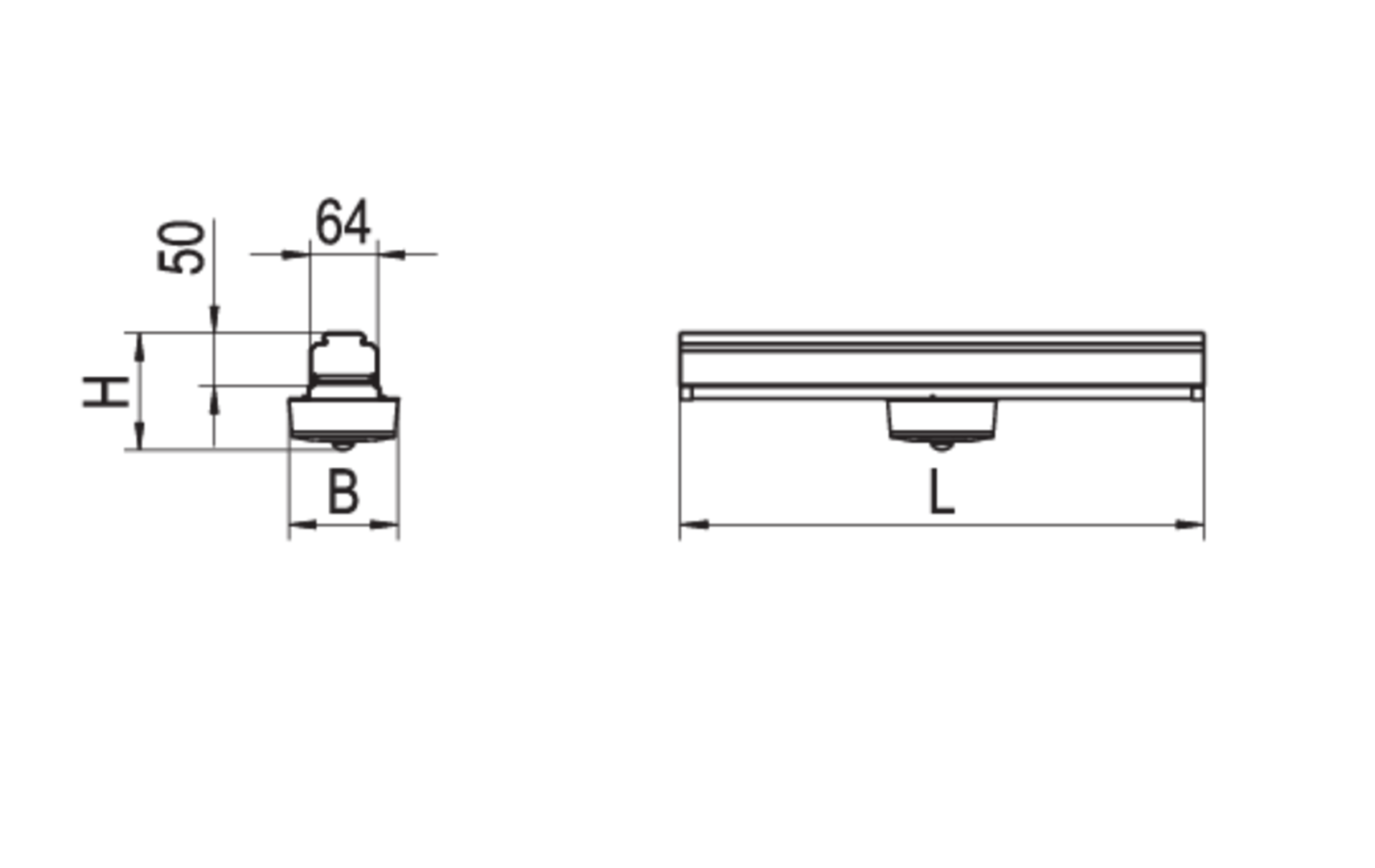

Dimensions
| Dimension L | 500 mm |
| Dimension B | 105 mm |
| Dimension H | 134 mm |
| Net weight | 0.490 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–60 °C |
| Housing material | Aluminium |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 230–230 V, 50–60 Hz |
| Power consumption | 0.1 W |
| Output voltage | 9.5–22.5 V |
| Protection class | I |
Sensor technology
| Transverse detection range | Ø 12 m |
| Angle of coverage | 360° |
| Capture field | 113 m² |
| Optimum mounting height | 8 m |
| Maximum mounting height | 8 m |
| Brightness setpoint | 0 - 2047 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
