BRITT2-3 DAWS840BU0750 / 0336973
Product Description
Ceiling light of the BRITT2 product family. Optical control by Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 7460 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Cover made of PMMA clear. Mounting via 3-circuit lighting track adapter. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336973 |
| GTIN | 4029299940367 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 501 mm |
| Dimension B | 187 mm |
| Dimension H | 102 mm |
| Net weight | 2.823 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
| Connection type | Power rail adapter |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–35 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 43.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

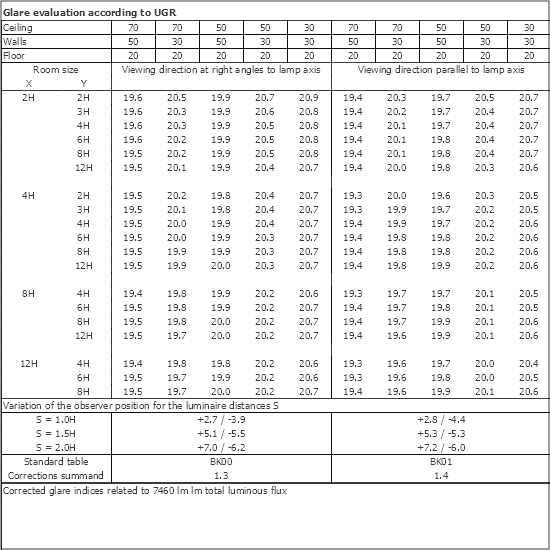

| UGR class | ≤ 22 |
| Rated luminous flux | 7460 lm |
| Luminaire efficiency | 173 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
