EDLR 235/3000-830 W-DALI-ED3 / 0331330//375
Product Description
Downlight from the EDLR product family. Optical control via , beam pattern symmetric, , light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3260 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. In addition to the standard fixing clamps for clamping thicknesses from 0 to 40 mm, special fixing kits such as panel mounting kits, reinforcement plates, concrete casting boxes, plaster rings, angled and semi-recessed mounting kits are available as accessories. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: Luminous flux in emergency mode: app. 500 lm
Order Information
| Item number | 0331330//375 |
| GTIN | 4029299443783 |
General
| Product category | Downlight |
Dimensions
| Dimension H | 115 mm |
| Dimension D | 235 mm |
| Dimension D2 | 235 mm |
| Dimension B1 | 115 mm |
| Dimension DE max | 225 mm |
| Dimension DE min | 223 mm |
| Dimension HE | 135 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Net weight | 1.040 kg |
Mounting
| Mounting type | Installation |
Housing
| System dimension | D 235 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |

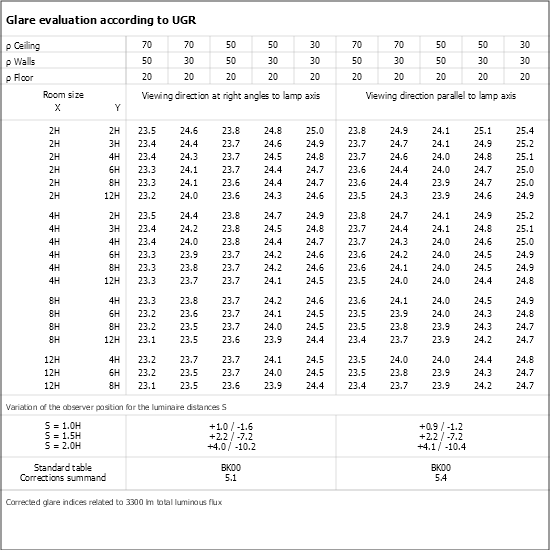

| UGR class | ≤ 25 |
| Rated luminous flux | 3260 lm |
| Luminaire efficiency | 142 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Automatic self-test | Yes |
| Battery type | NiCd |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
