FPL2-EQ0595NDWS830840MPS0400 / 0822975
Product Description
Ceiling light from the FPL product family. Optical control via , beam pattern symmetric, , light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4000 lm in light colour 830/840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , white, protection rating IP40. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0822975 |
| GTIN | 4029299530964 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
Dimensions
| Dimension L | 595 mm |
| Dimension B | 595 mm |
| Dimension H | 15 mm |
| Dimension AE | 570 mm |
| Dimension B4 | 43 mm |
| Dimension H4 | 32 mm |
| Dimension L4 | 240 mm |
| Net weight | 2.1 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK06 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 33.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |

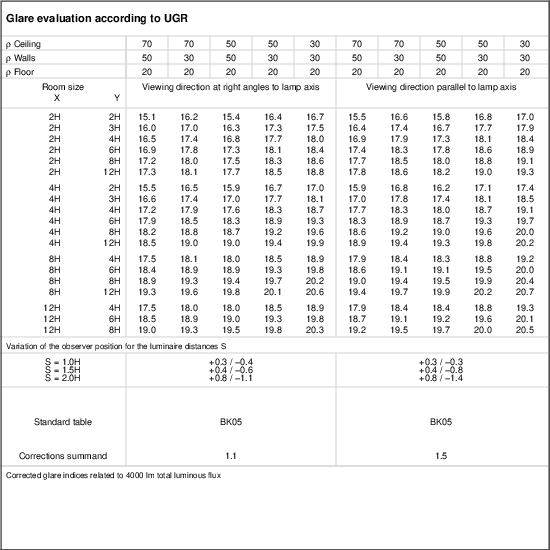

| UGR class | ≤ 19 |
| Rated luminous flux | 4000 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208997 -
ZBS-ER-EQ 595
|
Mounting frame for FPL-EQ 595 |
|
|
0208992 -
ZBS-AR FPL-EQ 595
|
Surface mounting frame for FPL-EQ 595 |
|
|
0206909 -
ZSP-FPL-EQ 1.5M
|
Y’ wire pendant FPL with ceiling fixture, 4xcarabiner, 1.5 m, (1/lum.) |
|
|
0209080 -
ZBS-EKL FPL-EQ
|
Recessed clamp for FPL-EQ, 1 set |
|
|
0209205 -
ZPB-FPL2
|
Pendant fixture and screws for FPL2, 1 set (spare part) |
|
|
0209288 -
ZEL-FPL-EM-BOX-ND
|
3 W power supply box for emergency light |
|
|
Ceiling light from the FPL product family. Optical control via , beam pattern symmetric, , light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4000 lm in light colour 830/840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , white, protection rating IP40. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0822975 |
| GTIN | 4029299530964 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
Dimensions
| Dimension L | 595 mm |
| Dimension B | 595 mm |
| Dimension H | 15 mm |
| Dimension AE | 570 mm |
| Dimension B4 | 43 mm |
| Dimension H4 | 32 mm |
| Dimension L4 | 240 mm |
| Net weight | 2.1 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK06 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 33.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 4000 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Light distribution curve
Approvals:
