HPL-BA 300/11000-840 PM / 0321421
THIS PRODUCT HAS BEEN DISCONTINUED AND CANNOT BE REORDERED.
Product Description
Housing made of , aluminium, protection rating IP20.
Order Information
| Item number | 0321421 |
| GTIN | 4029299451573 |
General
| Product category | Spotlight |
| Range of application | Industry | Retail |
Dimensions
| Dimension H | 300 mm |
| Dimension D | 315 mm |
| Dimension D2 | 315 mm |
| Dimension H1 | 190 mm |
| Net weight | 3.400 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
Housing
| Colour | aluminium |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 87.0 W |
| Protection class | I |
Lighting technology
| Light emission | |
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 10516 lm |
| Luminaire efficiency | 121 lm/W |

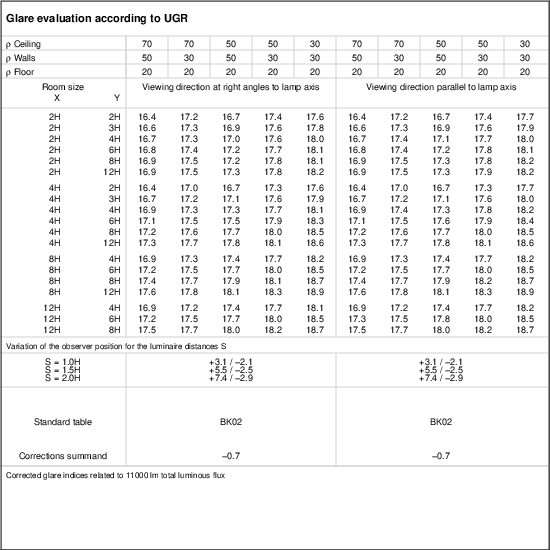

UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
Product Description
Housing made of , aluminium, protection rating IP20.
Product information
Order Information
| Item number | 0321421 |
| GTIN | 4029299451573 |
General
| Product category | Spotlight |
| Range of application | Industry | Retail |
Dimensions
| Dimension H | 300 mm |
| Dimension D | 315 mm |
| Dimension D2 | 315 mm |
| Dimension H1 | 190 mm |
| Net weight | 3.400 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
Housing
| Colour | aluminium |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 87.0 W |
| Protection class | I |
Lighting technology
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 10516 lm |
| Luminaire efficiency | 121 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Light distribution curve
Approvals:
