LUNARO2DASW865BE2200-SEN / 0336988SW437
Product Description
High-bay spotlight of the LUNARO2 product family. Optical control by Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 21320 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 4 SDCM. Housing made of Aluminium, black, protection rating IP65. Cover made of PC clear. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Transverse detection range 10 x 28 m, detection field 220 m². Wireless control via the integrated Bluetooth wireless sensor or the Bluetooth wireless module. Groups of master and slave luminaires can be created. In addition, DALI slave luminaires can be connected via a DALI cable and controlled together with the wireless luminaire, enabling hybrid wireless/DALI configurations. Two slave types are supported: wireless slave luminaires and DALI slave luminaires.
Order Information
| Item number | 0336988SW437 |
| GTIN | 4029299959505 |
General
| Product category | High-bay spotlight |
| Range of application | Industry |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension H | 167 mm |
| Dimension D | 400 mm |
| Dimension H2 | 212 mm |
| Net weight | 3.500 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | black |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -25–50 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 147.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

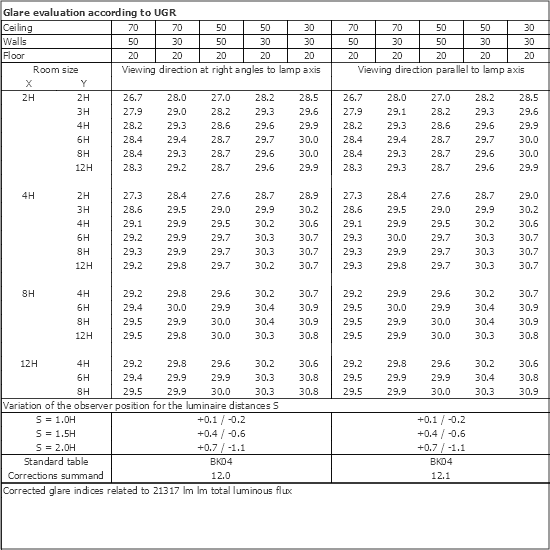

| UGR class | > 25 |
| Rated luminous flux | 21320 lm |
| Luminaire efficiency | 145 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 4 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 85.000 h |
| Rated life L80B10 (tq = 25 °C) | 82.000 h |
Sensor technology
| Transverse detection range | 10 x 28 m |
| Frontal detection range | 10 x 28 m |
| Capture field | 220 m² |
| Optimum mounting height | 15 m |
| Maximum mounting height | 15 m |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
