RUFO 320/1300-840 Z-2K-RS-EDS3 / 0420761//377396
Product Description
Ceiling and wall luminaire from the RUFO product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1210 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 7 m, Erfassungsfeld 38 m².
Note: Luminous flux in emergency mode: 100lm
2K-RS: Two-channel design with two LED drivers per luminaire. Two LED circuits are each actuated by a driver, allowing separate switching (50/50), e.g., for night lighting etc. One channel (50%) is switched to the sensor.Built-in high-frequency sensor (radar) for motion detection. Max. switching capacity: 100 WTransmission power [mW]: < 0.2Frequency band [GHz]: 5.8 ± 0.075
Order Information
| Item number | 0420761//377396 |
| GTIN | 4029299498677 |
General
| Product category | Ceiling and wall luminaire |
| Sensor | Movement | Light |
Dimensions
| Dimension H | 85 mm |
| Dimension D | 300 mm |
| Dimension D2 | 300 mm |
| Dimension A1 | 208 mm |
| Dimension A2 | 180 mm |
| Dimension D1 | 259 mm |
| Net weight | 0.800 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 1210 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 100 lm |
| Automatic self-test | Yes |
| Battery type | NiCd |
Sensor technology
| Transverse detection range | Ø 7 m |
| Angle of coverage | 360° |
| Capture field | 38 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 5 m |
| Brightness setpoint | 2 - 50 lx |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0204489 - WRUFO 320 Z | Replacement diffuser for RUFO 320 Z |
|
|
Ceiling and wall luminaire from the RUFO product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1210 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz. Mit Licht- und Bewegungsmelder. Erfassungsreichweite quer Ø 7 m, Erfassungsfeld 38 m².
Note: Luminous flux in emergency mode: 100lm
2K-RS: Two-channel design with two LED drivers per luminaire. Two LED circuits are each actuated by a driver, allowing separate switching (50/50), e.g., for night lighting etc. One channel (50%) is switched to the sensor.Built-in high-frequency sensor (radar) for motion detection. Max. switching capacity: 100 WTransmission power [mW]: < 0.2Frequency band [GHz]: 5.8 ± 0.075
Order Information
| Item number | 0420761//377396 |
| GTIN | 4029299498677 |
General
| Product category | Ceiling and wall luminaire |
| Sensor | Movement | Light |
Dimensions
| Dimension H | 85 mm |
| Dimension D | 300 mm |
| Dimension D2 | 300 mm |
| Dimension A1 | 208 mm |
| Dimension A2 | 180 mm |
| Dimension D1 | 259 mm |
| Net weight | 0.800 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 1210 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 100 lm |
| Automatic self-test | Yes |
| Battery type | NiCd |
Sensor technology
| Transverse detection range | Ø 7 m |
| Angle of coverage | 360° |
| Capture field | 38 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 5 m |
| Brightness setpoint | 2 - 50 lx |
Download Center

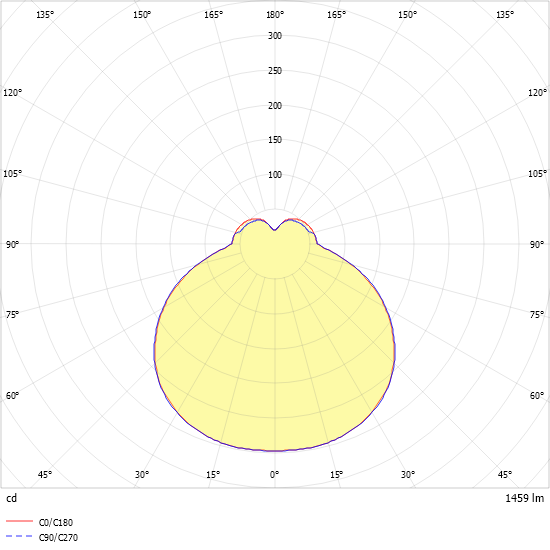

Light distribution curve
