SURVIVOR160DAWS840AS0650-US / 6068090
Product Description
Ceiling light from the SURVIVOR product family. Optical control via Cover longitudinal prismatic, beam pattern asymmetric, angled beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5510 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 6068090 |
| GTIN | 4029299070101 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1600 mm |
| Dimension B | 240 mm |
| Dimension H | 73 mm |
| Dimension A1 | 1562 mm |
| Dimension A2 | 150 mm |
| Net weight | 13.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 100 J |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–45 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | II |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| Rated luminous flux | 5510 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209238 - SURVIVOR BLIND-069WS | Dummy cover, 0.69 m, white |
|
|
| 0209239 - SURVIVOR BLIND-130WS | Dummy cover, 1.3 m, white |
|
|
| 0209240 - SURVIVOR BLIND-160WS | Dummy cover, 1.6 m, white |
|
|
0209286 -
SURVIVOR TP25-490WS
|
Media support profile (TP) (h = 27mm), 4.9 m, white |
|
|
0209326 -
SURVIVOR TP25-100WS
|
Media support profile (TP) (h = 27mm), 1.0 m, white |
|
|
0209243 -
SURVIVOR BLIND-EPWS
|
End plate for dummy cover, white, 1 piece |
|
|
| 0209338 - SURVIVOR PR-GS | Sliding slide for TP, M16 female thread connection, V2A, 1 piece |
|
|
0209331 -
ZRP-PRH16
|
Pendant tube holder, V2A, 1 piece |
|
|
|
0209329 -
ZRP-PR16X3-100WS
|
Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
|
0209330 -
ZRP-PR16X3-060WS
|
Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
0209244 -
SURVIVOR EM-HWB
|
Wall bracket (45°), double for joint, V2A, 1 piece |
|
|
0209335 -
SURVIVOR BLIND-WFH100WS
|
Dummy cover, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209336 -
SURVIVOR BLIND-WFV100WS
|
Dummy cover, vt. 90° corner, 1.0x1.0 m, white |
|
|
0209257 -
SURVIVOR EM-HWE
|
Wall bracket (45°), easier for termination, V2A, 1 piece |
|
|
0209325 -
SURVIVOR TP60-100WS
|
Media support profile (TP) (h = 60 mm), 1.0 m, white |
|
|
0209237 -
SURVIVOR TP60-490WS
|
Media support profile (TP) (h = 60 mm), 4.9 m, white |
|
|
| 0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
| 0209339 - SURVIVOR PMH-TP25/TP60 WS | Pendulum multi holder media support profiles, white, 1 piece |
|
|
0209246 -
SURVIVOR BLIND-TP60WFH100WS
|
Dummy cover + TP (h = 60 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209337 -
SURVIVOR BLIND-E45WFH100WS
|
Dummy cover + 45° wall bracket, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209333 -
SURVIVOR BLIND-TP25WFH100WS
|
Dummy cover + TP (h = 27 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209340 -
SURVIVOR TP25-EPWS
|
End plate for media support profile (h = 27 mm), white, 1 piece |
|
|
0209236 -
SURVIVOR TP60-EPWS
|
End plate for media support profile (h = 60 mm), white, 1 piece |
|
|
0209256 -
SURVIVOR EM-EPWS
|
End plate for dummy lamp, 45° corner mounting, white, 1 piece |
|
|
0209334 -
SURVIVOR BLIND-TP25WFV100WS
|
Dummy cover + TP (h = 27 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
0209332 -
SURVIVOR BLIND-TP60WFV100WS
|
Dummy cover + TP (h = 60 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
Ceiling light from the SURVIVOR product family. Optical control via Cover longitudinal prismatic, beam pattern asymmetric, angled beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5510 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 6068090 |
| GTIN | 4029299070101 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1600 mm |
| Dimension B | 240 mm |
| Dimension H | 73 mm |
| Dimension A1 | 1562 mm |
| Dimension A2 | 150 mm |
| Net weight | 13.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 100 J |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–45 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | II |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| Rated luminous flux | 5510 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

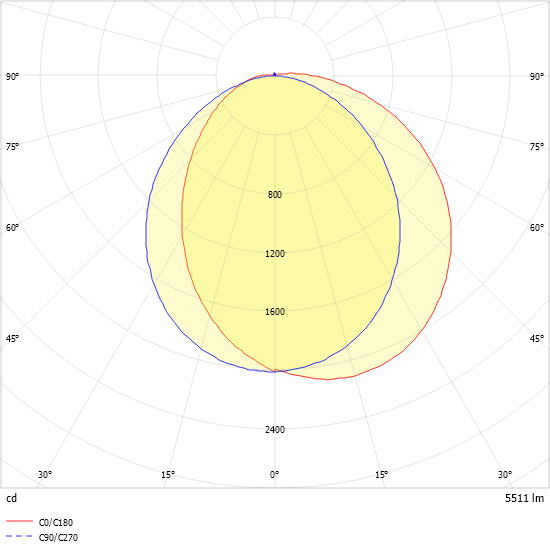

Light distribution curve
