RT360 055/8W 130M865 GF / 0206927GF
Product Description
Design: LED lamp RIDI-TUBE 360, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial), IP20 protection rating. LED modules configured as a linear circuit board, fitted on both sides with 70% direct light and 30% indirect light component. Mid-power LEDs for even illumination and maximum efficiency. Lampholder in durable PC, white. Operation with an external LED driver (mounted in the luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).
Order Information
| Item number | 0206927GF |
| GTIN | 4029299494563 |
Dimensions
| Dimension L | 550 mm |
| Net weight | 0.088 kg |
Technical data
| Colour temperature | 6500 K |
| Illuminant luminous flux | 1300 lm |
| Lamp wattage | 8 W |
| Luminaire efficiency | 162 |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.56 mA |
| Energy consumption | 9 kWh/1.000 h |
| Energy efficiency class | D |
Download Center
Approvals:
<P><B>Design:</B> LED lamp RIDI-TUBE 360, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial), IP20 protection rating. LED modules configured as a linear circuit board, fitted on both sides with 70% direct light and 30% indirect light component. Mid-power LEDs for even illumination and maximum efficiency. Lampholder in durable PC, white. Operation with an external LED driver (mounted in the luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).</P>
Order Information
| Item number | 0206927GF |
| GTIN | 4029299494563 |
Dimensions
| Dimension L | 550 mm |
| Net weight | 0.088 kg |
Technical data
| Colour temperature | 6500 K |
| Illuminant luminous flux | 1300 lm |
| Lamp wattage | 8 W |
| Luminaire efficiency | 162 |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.56 mA |
| Energy consumption | 9 kWh/1.000 h |
| Energy efficiency class | D |
Download Center

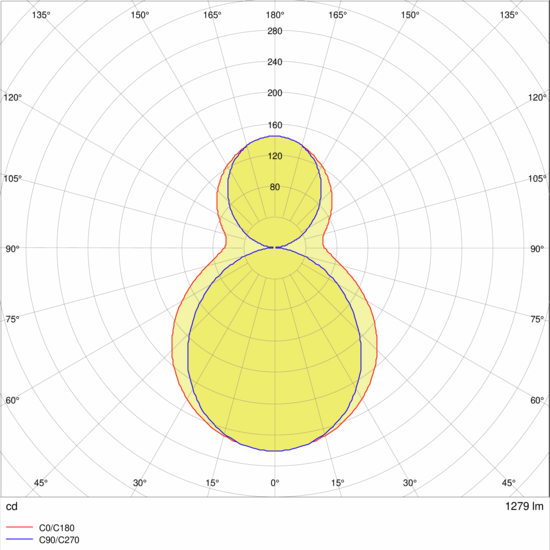

Light distribution curve
Approvals:
Attributes:
