AB2-AS1565FLWS840MPO0400 / 1627923
Product Description
Ceiling light from the AB2 product family. The microprismatic cover, which is held in a frame, ensures pleasant and glare-free illumination of computer workstations and classrooms thanks to its symmetrical wide beam characteristic. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4080 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 2390 - 4080 lm. Rectangular, angular housing made of powder-coated steel, white. Break-out openings at the front allow through wiring of the luminaire in a strip arrangement. Direct ceiling mounting using the supplied ceiling cams and slotted discs for fixing. 4-point fixing. When using the mounting brackets supplied as accessories, the luminaire can be fixed to 2 ceiling mounting points by pre-mounting the mounting bracket to the ceiling and fixing the luminaire to it. LED driver built into luminaire, can be replaced by a qualified electrician. Connector block suitable for through wiring. Switchable design AB-...FL can be set to the required light level using a DIP switch on the driver. DALI designs for TouchDim or DALI applications.
Order Information
| Item number | 1627923 |
| GTIN | 4029299941647 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1565 mm |
| Dimension B | 200 mm |
| Dimension H | 55 mm |
| Dimension A1 | 1250 mm |
| Net weight | 6.800 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Glare control | Microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4080 lm |
| Maximum rated luminous flux | 2390 - 4080 lm |
| Luminaire efficiency | 128 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 79.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
|
0200638 -
ZIDV 58/5/2.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 5x2.5mm², max. 16A |
|
|
| 0218442 - ZBS-AS-AB2 | Fall protection for cover strip of AB2-A... |
|
|
| 0218441 - ZBS AB-AS | Mounting kit for 2 mounting points for luminaire AB-AS... |
|
|
Ceiling light from the AB2 product family. The microprismatic cover, which is held in a frame, ensures pleasant and glare-free illumination of computer workstations and classrooms thanks to its symmetrical wide beam characteristic. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4080 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 2390 - 4080 lm. Rectangular, angular housing made of powder-coated steel, white. Break-out openings at the front allow through wiring of the luminaire in a strip arrangement. Direct ceiling mounting using the supplied ceiling cams and slotted discs for fixing. 4-point fixing. When using the mounting brackets supplied as accessories, the luminaire can be fixed to 2 ceiling mounting points by pre-mounting the mounting bracket to the ceiling and fixing the luminaire to it. LED driver built into luminaire, can be replaced by a qualified electrician. Connector block suitable for through wiring. Switchable design AB-...FL can be set to the required light level using a DIP switch on the driver. DALI designs for TouchDim or DALI applications.
Order Information
| Item number | 1627923 |
| GTIN | 4029299941647 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1565 mm |
| Dimension B | 200 mm |
| Dimension H | 55 mm |
| Dimension A1 | 1250 mm |
| Net weight | 6.800 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Glare control | Microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4080 lm |
| Maximum rated luminous flux | 2390 - 4080 lm |
| Luminaire efficiency | 128 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 79.000 h |
Download Center

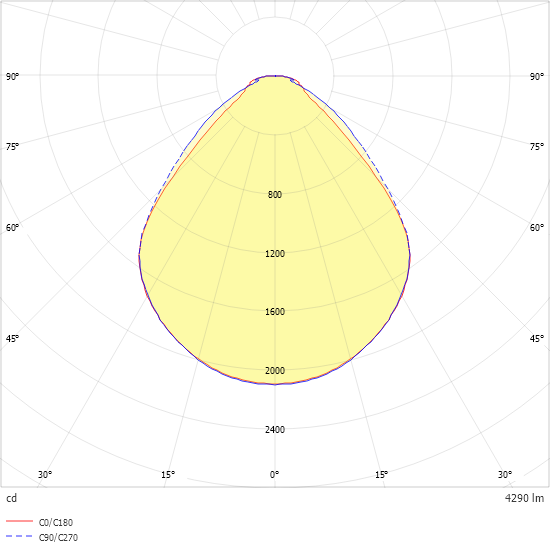

Light distribution curve
