ABR-L 280/1240-840 T-DA / 0660153
Product Description
Ceiling light from the ABR product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 11260 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant mounting with corresponding fixing kits. Ceiling mounting using the enclosed slotted discs. Rail mounting on TRAS or VLTO trunking. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ABR. 180, 280: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ABR. 380: central lamp wired to L2, outer lamps to L1. (3 devices). ABR. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0660153 |
| GTIN | 4029299418620 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1549 mm |
| Dimension B | 308 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1250 mm |
| Dimension A2 | 132 mm |
| Dimension AB | 300 mm |
| Net weight | 13.020 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 7 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 87.6 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11260 lm |
| Luminaire efficiency | 129 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:

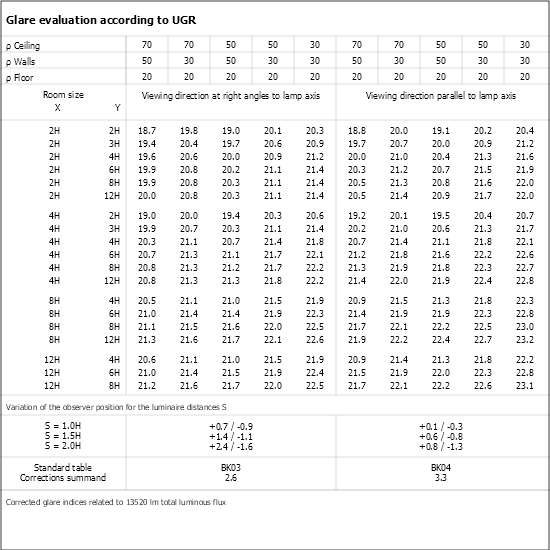

Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
1207288 -
VLBKM 1500
|
Dummy cover, L=1500mm, IP20, white plastic |
|
|
|
1207289 -
VLBKM 4500
|
Dummy cover, L=4500mm, IP20, white plastic |
|
|
0207868 -
TRAS-HD
|
Hanger with 6.0 dia. for ceiling mounting, 1 pc |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0205222 -
VLTHDS AUFHÄNGER + HAKEN KURZ
|
Chain suspension hanger, angular mounting, max 20kg, 1 pc |
|
|
0207867 -
TRAS-HA
|
Chain suspension hanger adjustable nut, 1 pc |
|
|
0207083 -
TRAS-AB
|
Fixing plate for ball resistant mounting of TRAS-A |
|
|
0205224 -
VLTHDB AUFHÄNGER
|
Ceiling fixture with cross screw for securing, max. 20 kg, 1 piece |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205761 -
VLTLI
|
Internal cable retainer, 10 units, observe instructions |
|
|
0207870 -
TRAS-B
|
Luminaire fixing for surface mounted luminaires |
|
|
1205260 -
VLTB LEUCHTENBEFESTIGER
|
For luminaire fixing at VLT-… screw M5, max. 20 kg, 1 pc |
|
|
0200223 -
TRA 002 M5X20
|
Luminaire hanger M5 x 20 swing hooks, galvanized steel |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
0207851 -
TRAS 3000
|
Galvanized steel trunking, L=3.0m, weight 3.9 kg |
|
|
|
0207852 -
TRAS 4500
|
Galvanized steel trunking, L=4.5m, weight 5.9 kg |
|
|
1500004 -
VLTO 581
|
Trunking, 1-length, L=1537 mm, without through wiring, white |
|
|
|
1500005 -
VLTO 582
|
Trunking, 2-length, L=3074 mm, without through wiring, white |
|
|
|
1500006 -
VLTO 583
|
Trunking, 3-length, L=4611 mm, without through wiring, white |
|
|
0207944 -
TRAS-HAS
|
Angular chain suspension hanger, 1 pc |
|
|
1205790 -
VLTV TRAGSCHIENENVERBINDER
|
IP20 and IP54 trunking connector, 1 pc |
|
|
0206548 -
VLTVA TRAGSCHIENENVERBINDER
|
External trunking connector IP20 |
|
|
0207860 -
TRAS-V
|
Trunking connector for TRAS, 1pc |
|
|
0200252 -
TRA 132 TRAVERSE- ABR/EBR 2..
|
Cross bar for ABR/EBR 2-lamp, fixing distance 132 + 149mm |
|
|
0200253 -
TRA 298 TRAVERSE- ABR/EBR 3..
|
Cross bar for ABR/EBR 3-lamp, fixing distance 298mm |
|
|
0200256 -
TRA 435 TRAVERSE- ABR/EBR 4..
|
Cross bar for ABR/EBR 4-lamp, fixing distance 435mm |
|
|
0206905 -
VLG-KB
|
Safety clamp for VLB, white, 1 pc. |
|
|
0207853 -
TRAS-A 1500
|
Galv. cover for TRAS, L=1.5m, ball resistant with TRAS-AB |
|
|
0205791 -
VLTE TRAGSCHIENEN ENDDECKEL
|
Trunking end cap, white, plastic, 1 pc |
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
|
0200638 -
ZIDV 58/5/2.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 5x2.5mm², max. 16A |
|
|
Ceiling light from the ABR product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 11260 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant mounting with corresponding fixing kits. Ceiling mounting using the enclosed slotted discs. Rail mounting on TRAS or VLTO trunking. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ABR. 180, 280: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ABR. 380: central lamp wired to L2, outer lamps to L1. (3 devices). ABR. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0660153 |
| GTIN | 4029299418620 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1549 mm |
| Dimension B | 308 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1250 mm |
| Dimension A2 | 132 mm |
| Dimension AB | 300 mm |
| Net weight | 13.020 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Trunking |
| Connection type | plug-in terminal |
| Number of poles | 7 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 87.6 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11260 lm |
| Luminaire efficiency | 129 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

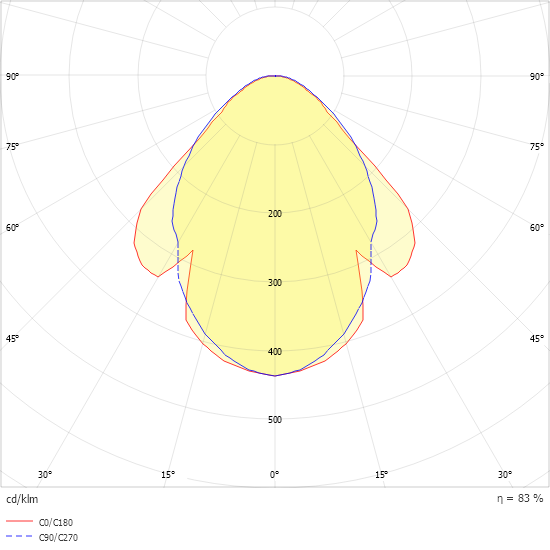

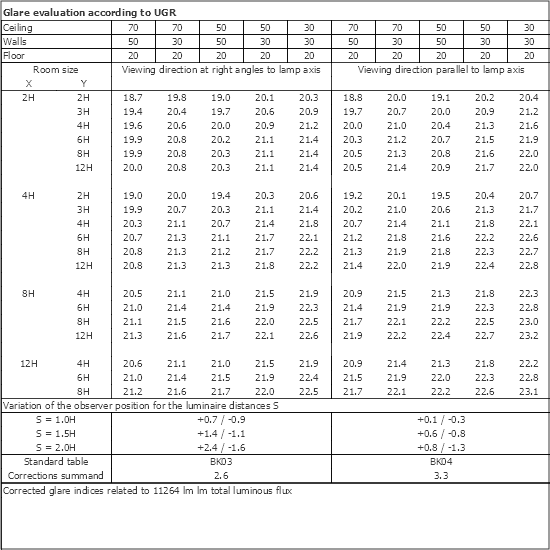

Light distribution curve
