ABRB-R2X115/30ND-SM-SET / 0650329//676
Product Description
Ceiling light from the ABRB product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 8320 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single and continuous luminaire mounting via simple toolless quick mounting system for significantly reduced installation time. Fixing clips provide a distance of 7.5 mm from ceiling to luminaire. Electrical connection from the outside on the top of the luminaire. The top of the luminaire is recessed to accommodate the connecting cable and through wiring. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650329//676 |
| GTIN | 4029299466515 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1180 mm |
| Dimension B | 215 mm |
| Dimension H | 60 mm |
| Dimension AB | 1180 mm |
| Dimension AE | 1000 mm |
| Net weight | 4.140 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 68.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

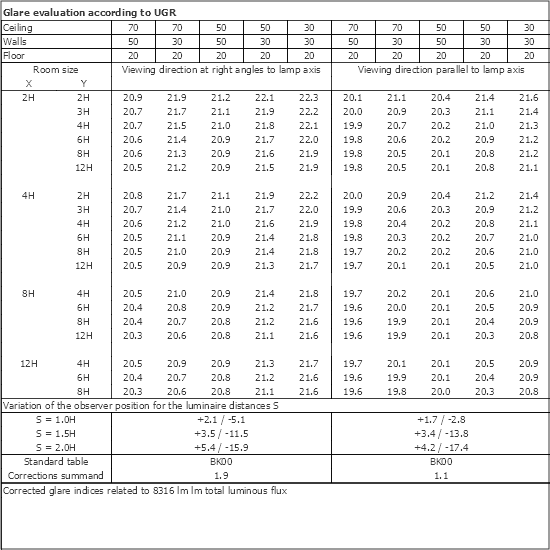

| UGR class | ≤ 22 |
| Rated luminous flux | 8320 lm |
| Luminaire efficiency | 122 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0201201 -
ZIDV 36/3/1.5 DURCHVERDR.
|
Through wiring T26-36W + T16-28/54W, 3x1.5mm², max.10A |
|
|
|
0200254 -
ZIDV 36/5/1.5 DURCHVERDR.
|
Through wiring T26-36W + T16-28/54W, 5x1.5mm², max.10A |
|
|
| 0202961 - ZADV .28/54/3/1.5 DURCHVERDR. | External through wiring T16-.28/54 W, 3x1.5mm², max.10A |
|
|
| 0202968 - ZADV .58/5/1.5 DURCHVERDR. | External through wiring T26-.58 W, 5x1.5mm², max.10A |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0202950 -
ABRBE 2 ENDDECKEL 2 LAMPIG
|
End cap for ABRB 2.., white, 1 pc |
|
|
0202952 -
ABRBV 2 VERBINDER 2 LAMPIG
|
Luminaire connector for ABRB 2.., white, 1 pc |
|
|
0201619 -
ZSPH
|
Wire pendant, domed canopy, white, wire clamp 1.5m, 1 pc |
|
|
|
0205027 -
ZSPHS MIT SCHRAUBKLEMME 1.5M
|
Wire pendant, domed canopy, white, man. clamp 1.5m, 1 pc |
|
|
0202867 -
ZSPE
|
Wire pendant, rect. canopy white, wire clamp, 1.5m, 1 pc |
|
|
0202926 -
ZSPTSE BALDACHIN+SEILP. 1.5M
|
Wire pendant rectangular canopy, white, wire clamp, 1.5m |
|
|
0202927 -
ZSPTSH BALDACHIN+SEILP. 1.5M
|
Wire pendant domed canopy, white, wire clamp, 1.5m |
|
|
0205017 -
ZSP /AUTOM.-KLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp, 1.5m, 1 set = 2pc |
|
|
|
0205018 -
ZSPS SCHRAUBKLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp man., 1.5m, 1set=2pc |
|
|
0203537 -
ZSPTS SEILPENDEL TRAPEZ 1.5M
|
Y' wire pendant w. ceiling fixture, manual clamp, 1.5m, 1 pc |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
Ceiling light from the ABRB product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 8320 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single and continuous luminaire mounting via simple toolless quick mounting system for significantly reduced installation time. Fixing clips provide a distance of 7.5 mm from ceiling to luminaire. Electrical connection from the outside on the top of the luminaire. The top of the luminaire is recessed to accommodate the connecting cable and through wiring. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650329//676 |
| GTIN | 4029299466515 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1180 mm |
| Dimension B | 215 mm |
| Dimension H | 60 mm |
| Dimension AB | 1180 mm |
| Dimension AE | 1000 mm |
| Net weight | 4.140 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 68.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 8320 lm |
| Luminaire efficiency | 122 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

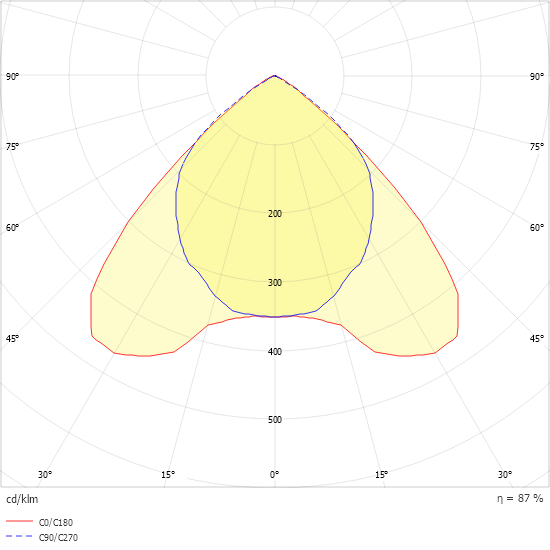

Light distribution curve
