ABRBI-RT1X145/25ND-SM-SET / 0650628//673683
Product Description
Pendant luminaire from the ABRB product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3150 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant luminaire for single and continuous luminaire mounting. Electrical connection from the outside on the top of the luminaire. Through wiring runs inside the luminaire. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650628//673683 |
| GTIN | 4029299489873 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 130 mm |
| Dimension H | 60 mm |
| Dimension AB | 1480 mm |
| Dimension AE | 1400 mm |
| Net weight | 3.160 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 3150 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
0202951 -
ABRBV 1 VERBINDER 1 LAMPIG
|
Luminaire connector for ABRB 1.., white, 1 piece |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring, length 1700 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring, length 1700 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0202962 - ZADV .35/49/3/1.5 DURCHVERDR. | External through wiring, length 1700 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0202968 - ZADV .58/5/1.5 DURCHVERDR. | External through wiring, length 1700 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Transparent connection cable, 3 x 1.5 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Transparent connection cable, 5 x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Transparent connection cable, 5 x 0.75 mm², 1.5 m |
|
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Transparent connection cable, 3 x 0.75 mm², 1.5 m |
|
|
Housings, Covers, and Design
| Item number - Designation | Product Description | Download | Wishlist |
0202949 -
ABRBE 1 ENDDECKEL 1 LAMPIG
|
End cap for ABRB 1.., white, 1 piece |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0202927 -
ZSPTSH BALDACHIN+SEILP. 1.5M
|
Wire pendant with semi-circular canopy, white, wire clamp, 1.5 m |
|
|
0203537 -
ZSPTS SEILPENDEL TRAPEZ 1.5M
|
Y-wire pendant, ceiling fixture, manual wire clamp, 1.5 m, 1 piece |
|
|
0204332 -
ZDBE
|
Square canopy, white, for wire pendant mounting, ZUSP and UKNS |
|
|
0201619 -
ZSPH
|
Wire pendant, round canopy, white, wire clamp, 1.5 m, 1 piece |
|
|
0202867 -
ZSPE
|
Wire pendant, square canopy, white, wire clamp, 1.5 m, 1 piece |
|
|
|
0205027 -
ZSPHS MIT SCHRAUBKLEMME 1.5M
|
Wire pendant, round canopy, white, manual wire clamp, 1.5 m, 1 piece |
|
|
0202926 -
ZSPTSE BALDACHIN+SEILP. 1.5M
|
Wire pendant with square canopy, white, wire clamp, 1.5 m |
|
|
0205018 -
ZSPS SCHRAUBKLEMME 1.5M
|
Wire pendant, ceiling fixture, manual wire clamp, 1.5 m, 1 set = 2 pieces |
|
|
|
0205017 -
ZSP /AUTOM.-KLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp, 1.5 m, 1 set = 2 pieces |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206943LF - RT360 145-840M0350 LF | 1443 | 4000 K | matt |
|
|
Pendant luminaire from the ABRB product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3150 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Pendant luminaire for single and continuous luminaire mounting. Electrical connection from the outside on the top of the luminaire. Through wiring runs inside the luminaire. Continuous luminaire mounting with luminaire connector ABRBV made of UV-stabilised plastic, to be ordered separately (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650628//673683 |
| GTIN | 4029299489873 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 130 mm |
| Dimension H | 60 mm |
| Dimension AB | 1480 mm |
| Dimension AE | 1400 mm |
| Net weight | 3.160 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 3150 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

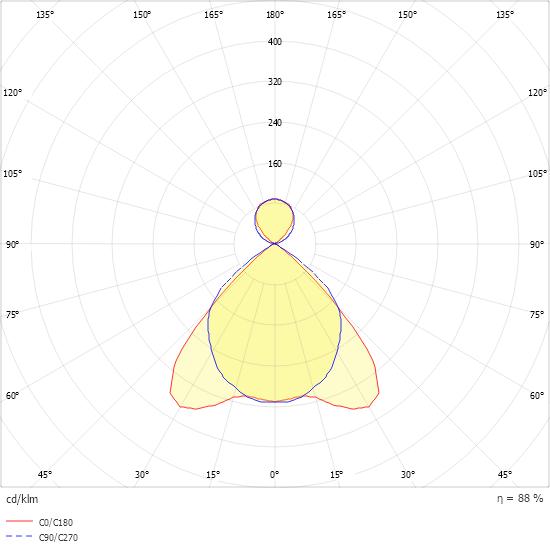

Light distribution curve
