ABRFB-R1X115/30ND-SM / 0650007
Product Description
Ceiling light from the ABRFB product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4160 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single or continuous luminaire mounting. Ceiling mounting with enclosed accessories or pendant mounting with corresponding fixing kits (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0650007 |
| GTIN | 4029299419993 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1180 mm |
| Dimension B | 131 mm |
| Dimension H | 60 mm |
| Dimension A1 | 900 mm |
| Dimension AB | 1180 mm |
| Dimension AE | 1100 mm |
| Net weight | 3.250 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

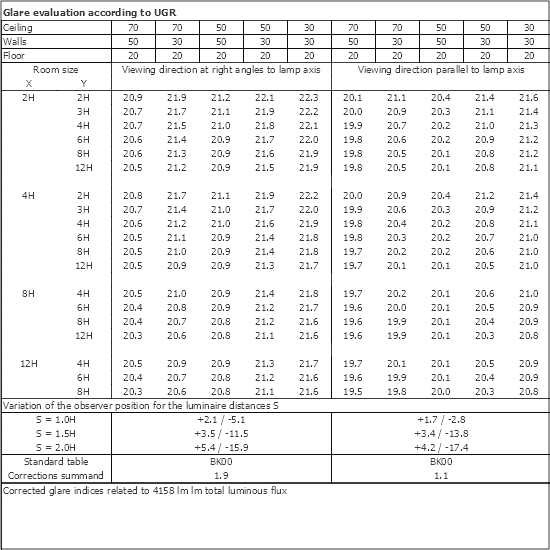

| UGR class | ≤ 22 |
| Rated luminous flux | 4160 lm |
| Luminaire efficiency | 122 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
0215933 -
UKNA-ABRFB
|
Univ. junction adapter for ABRFB, white, TW |
|
|
0203581 -
ABRFBE LEUCHTENSTIRNTEIL
|
End cap for ABRFB, ABRFBI, white, sheet steel, 1 pc |
|
|
|
0203584 -
ABRFBKE LEUCHTENSTIRNTEIL
|
End cap for ABRFB, ABRFBI, white, plastic, 1 pc |
|
|
0203585 -
ABRFBKN
|
Junction point for ABRFB/ABRFBI |
|
|
0203586 -
ABRFBKNE KNOTENSTIRNTEIL
|
Cover plate for junction, 1 pc |
|
|
0201619 -
ZSPH
|
Wire pendant, domed canopy, white, wire clamp 1.5m, 1 pc |
|
|
|
0205027 -
ZSPHS MIT SCHRAUBKLEMME 1.5M
|
Wire pendant, domed canopy, white, man. clamp 1.5m, 1 pc |
|
|
0203537 -
ZSPTS SEILPENDEL TRAPEZ 1.5M
|
Y' wire pendant w. ceiling fixture, manual clamp, 1.5m, 1 pc |
|
|
0202926 -
ZSPTSE BALDACHIN+SEILP. 1.5M
|
Wire pendant rectangular canopy, white, wire clamp, 1.5m |
|
|
0202927 -
ZSPTSH BALDACHIN+SEILP. 1.5M
|
Wire pendant domed canopy, white, wire clamp, 1.5m |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0203253 -
UKN
|
Universal junction, D=120, H=60, white 1 pc |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
|
0215942 -
UKNS 3.0M
|
Wire pendant w. ceiling fixing and wire clamp 3.0m, 1 pc |
|
|
|
0215943 -
UKNS 5.0M
|
Wire pendant w. ceiling fixing and wire clamp 5.0m, 1 pc |
|
|
0202867 -
ZSPE
|
Wire pendant, rect. canopy white, wire clamp, 1.5m, 1 pc |
|
|
0202879 -
UKNSE SEILP.KLEMME+BALD1.5M
|
Wire pendant w. rect. canopy, white, 1.5m, 1 pc |
|
|
0208105 -
UKND
|
Ceiling fixing kit for UKN |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0210959 -
UKNSB SEILP.KLEMME+BALD. 1.5M
|
Wire pendant w. domed canopy, white, wire clamp, 1.5m, 1 pc |
|
|
0205018 -
ZSPS SCHRAUBKLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp man., 1.5m, 1set=2pc |
|
|
|
0205017 -
ZSP /AUTOM.-KLEMME 1.5M
|
Wire pendant, ceiling fixture, wire clamp, 1.5m, 1 set = 2pc |
|
|
Ceiling light from the ABRFB product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4160 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single or continuous luminaire mounting. Ceiling mounting with enclosed accessories or pendant mounting with corresponding fixing kits (see accessories). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
