ADLQ 195/2000-840 SM / 0321934
Product Description
Downlight from the ADLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2000 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Direct ceiling mounting or with accessories for suspending from wire pendants. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0321934 |
| GTIN | 4029299468694 |
General
| Product category | Downlight |
| Range of application | Education | Office |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 194 mm |
| Dimension A1 | 160 mm |
| Dimension A2 | 145 mm |
| Dimension Q | 195 mm |
| Net weight | 2.460 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 16.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

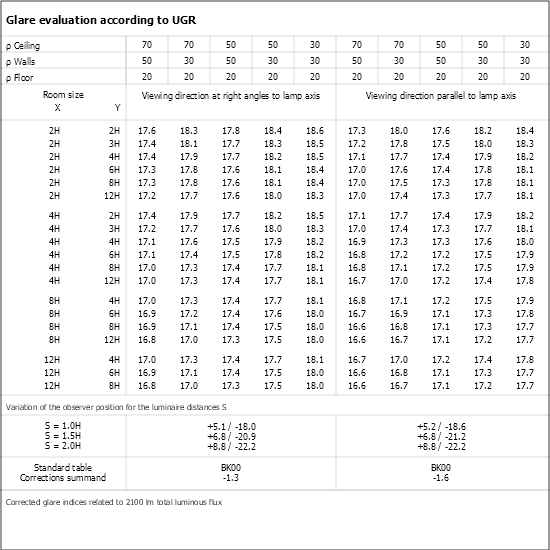

| UGR class | ≤ 19 |
| Rated luminous flux | 2000 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0208876 - DQ195-ASLP-K-D-W | PMMA panel, longitudinal prisms for asym. light distribution, white |
|
|
| 0209013 - DQ195-DPS-K-D-W | Panel PMMA, embossed micro-prisms, white decorative frame |
|
|
| 0204176 - DQ195-RM-G-SB-W | Decorative glass ESG, interior open, matt finish, white decorative frame |
|
|
| 0204445 - ZSP-1P-ABDQ 1.5M | Wire pendant for ABDQ, 1.5m, 1 pc |
|
|
0204889 -
DQ195-MPS-G-D-W
|
Decor. float glass disc, microprisms with frame white |
|
|
| 0209010 - DQ195-DPO-K-D-W | Panel PMMA, embossed opal micro-prisms, white decorative frame |
|
|
0204436 -
DQ195-SK-G-D-W
|
Transparent float glass disc with white decorative ring |
|
|
| 0209019 - DQ195-MPS-K-D-W | Panel PMMA, protruding micro-prisms, white decorative frame |
|
|
0204421 -
DQ195-SPM-G-SB-W
|
Decorative safety glass, matt interior, white decor frame |
|
|
0204164 -
DQ195-SO-G-D-W
|
Opal float glass disc with white decorative ring |
|
|
| 0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
0204426 -
DQ195-DR-B-W
|
Decor frame, white |
|
|
0201239 -
ZUSP SEILPENDEL UNIV. 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
0204431 -
DQ195-SM-G-D-W
|
Float glass disc, matt finish, with white decorative frame |
|
|
| 0209016 - DQ195-SOM-K-D-W | Panel PMMA, opal satin finish, white decorative frame |
|
|
Downlight from the ADLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2000 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Direct ceiling mounting or with accessories for suspending from wire pendants. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0321934 |
| GTIN | 4029299468694 |
General
| Product category | Downlight |
| Range of application | Education | Office |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 194 mm |
| Dimension A1 | 160 mm |
| Dimension A2 | 145 mm |
| Dimension Q | 195 mm |
| Net weight | 2.460 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 16.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 2000 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

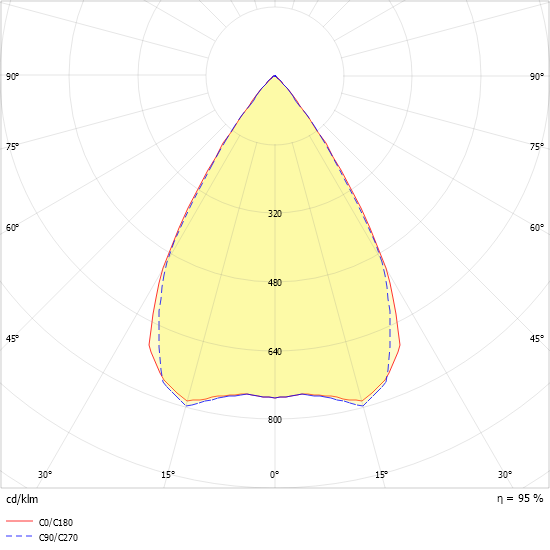

Light distribution curve
