ADLR 150/2000-830 SMT-DALI / 0332077
Product Description
Downlight from the ADLR product family. Optical control via Reflector, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1880 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaire is intended for individual mounting on the ceiling. Screws and the like must be procured on site. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0332077 |
| GTIN | 4029299573053 |
General
| Product category | Downlight |
| Range of application | Education | Office |
Dimensions
| Dimension H | 160 mm |
| Dimension D | 150 mm |
| Dimension D2 | 150 mm |
| Dimension A1 | 130 mm |
| Net weight | 1.395 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 16.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 1880 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0208860 - DR150-SOM-K-D-W | Panel PMMA, opal satin finish, white decorative ring |
|
|
0202682 -
DR150-SPM-G-SB-W
|
Decorative safety glass, matt int., white decorative ring |
|
|
0202928 -
ZES EBD 150-235/80
|
Fixing kit EBD 150 - 235, for ceiling thicknesses to 80 mm |
|
|
0202782 -
PES EBD. 150/100/200
|
Plank ceiling mounting kit, module 100 and 200 ceilings |
|
|
|
0202783 -
PES EBD. 150/150
|
Plank ceiling mounting kit, module 150 ceilings |
|
|
0202691 -
DR150-RM-G-SB-W
|
Decor. safety glass, matt, int.open, white ring |
|
|
| 0208872 - DR150-ASLP-K-D-W | PMMA panel, longitudinal prisms for asym. light distribution, white |
|
|
0202738 -
DR150-SO-G-D-W
|
Float glass disc, opal finish, with white decorative ring |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
0202674//636 -
DR150-DR-K-ES
|
Decorative ring, brushed stainless steel |
|
|
|
0202674RAL -
DR150-DR-K-RAL
|
Decorative ring painted plastic, optional RAL colour |
|
|
|
0202674//634 -
DR150-DR-K-AL
|
Decorative ring, brushed aluminium |
|
|
|
0202674 -
DR150-DR-K-W
|
Decorative ring, white plastic |
|
|
0202919 -
VP EBD. 150-625
|
Strengthening plate for non-rigid module 625 ceilings |
|
|
|
0202792 -
VP EBD. 150-600
|
Strengthening plate for non-rigid module 600 ceilings |
|
|
0202733 -
DR150-SM-G-D-W
|
Float glass disc, matt finish, with white decorative ring |
|
|
0202718 -
DR150-SBDR-G-SB-W
|
Decorative safety glass, printed, with white decorative ring |
|
|
| 0204861 - DR150-SM-K-D-W | Decorative panel PMMA, satin finish, white decorative ring |
|
|
0202700 -
DR150-SPMA-G-SB-W
|
Decorative safety glass, matt exterior, white ring |
|
|
| 0209006 - DR150-MPS-K-D-W | Panel PMMA, protruding micro-prisms, white decorative ring |
|
|
| 0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
|
0204883 -
DR150-MPS-G-D-W
|
Decor. float glass disc, microprisms with decor ring white |
|
|
| 0208865 - DR150-DPO-K-D-W | Panel PMMA, embossed opal micro-prisms, white decorative ring |
|
|
| 0202900 - PES EBD... UGEBD | Mounting bracket for gear tray UGEBD with PES EBD... |
|
|
0201069 -
UGEBD ... -UR
|
Changeover relay for EBD..., (not for HIT lamps) |
|
|
Downlight from the ADLR product family. Optical control via Reflector, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1880 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaire is intended for individual mounting on the ceiling. Screws and the like must be procured on site. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0332077 |
| GTIN | 4029299573053 |
General
| Product category | Downlight |
| Range of application | Education | Office |
Dimensions
| Dimension H | 160 mm |
| Dimension D | 150 mm |
| Dimension D2 | 150 mm |
| Dimension A1 | 130 mm |
| Net weight | 1.395 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 16.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 1880 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

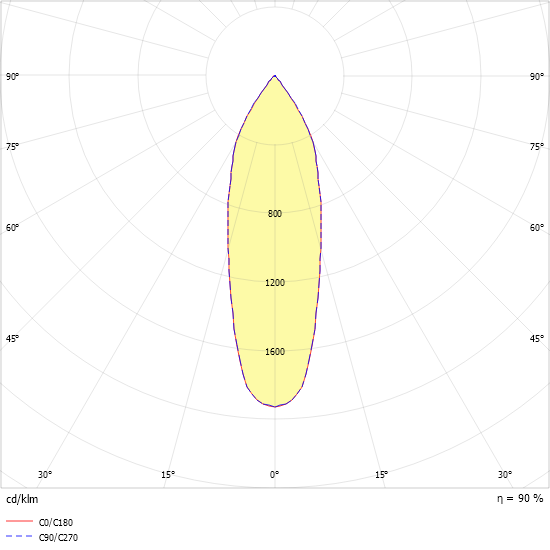

Light distribution curve
