ALBA R150E DAHG8TWSF0225OS / 0332622
Product Description
Downlight from the ALBA product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2180 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, similar to RAL 9010, protection rating IP20 IP44 room side. Recessed mounting in a minimalist, timeless double halo design. Sturdy mounting ring made of polycarbonate. Toolless pre-assembly with hinged fixing sliders with anti-slip function for quick fixing of the light unit using a plug-in fastener. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0332622 |
| GTIN | 4029299922684 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 97 mm |
| Dimension D | 160 mm |
| Dimension B4 | 58 mm |
| Dimension DE max | 155 mm |
| Dimension DE min | 150 mm |
| Dimension H4 | 23 mm |
| Dimension HE | 105 mm |
| Dimension L4 | 192 mm |
| Dimension S | 1 mm |
| Net weight | 0.650 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| System dimension | D 150 |
| Colour | white, similar to RAL 9010 |
| Protection class | IP20 | IP44 room side |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 20.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Lens |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Super Flood |

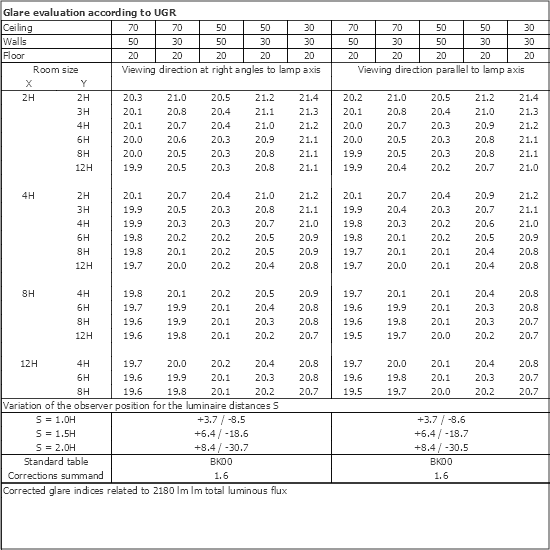

| UGR class | ≤ 22 |
| Rated luminous flux | 2180 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209530 - ZADR-ALBA150-DM220 | Cover ring for ALBA R150E up to ceiling opening DM 210 |
|
|
| 0209529 - ZADR-ALBA150-DM200 | Cover ring for ALBA R150E up to ceiling opening DM 190 |
|
|
