ALBA R200E NDHG940F0250 / 0322397
Product Description
Downlight from the ALBA product family. Optical control via Lens, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2320 lm in light colour 940, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, similar to RAL 9010, protection rating IP20 IP44 room side. Recessed mounting in a minimalist, timeless double halo design. Sturdy mounting ring made of polycarbonate. Toolless pre-assembly with hinged fixing sliders with anti-slip function for quick fixing of the light unit using a plug-in fastener. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0322397 |
| GTIN | 4029299020854 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 103 mm |
| Dimension D | 208 mm |
| Dimension B4 | 58 mm |
| Dimension DE max | 205 mm |
| Dimension DE min | 200 mm |
| Dimension H4 | 24 mm |
| Dimension HE | 108 mm |
| Dimension L4 | 192 mm |
| Dimension S | 1 mm |
| Dimension S max | 25 mm |
| Net weight | 0.810 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| System dimension | D 200 |
| Colour | white, similar to RAL 9010 |
| Protection class | IP20 | IP44 room side |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Plastic |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 17.3 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | II |
Lighting technology
| Light distributor | Lens |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Flood |

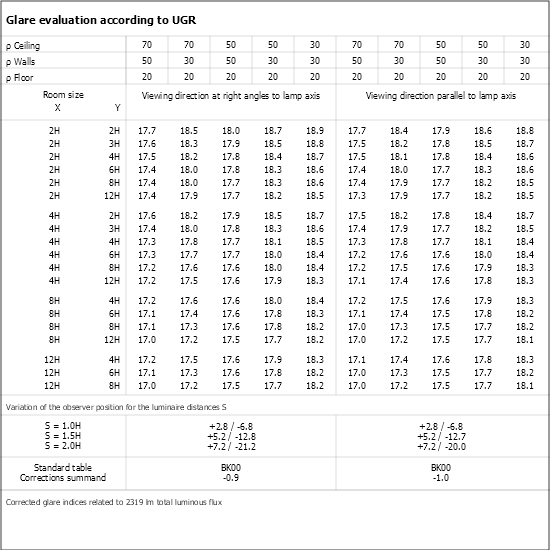

| UGR class | ≤ 19 |
| Rated luminous flux | 2320 lm |
| Luminaire efficiency | 134 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Farbwiedergabeindex R9 | 50 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 78.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Housings, Covers, and Design
| Item number - Designation | Product Description | Download | Wishlist |
| 0209531 - ZADR-ALBA200-DM250 | Cover ring for ALBA R200E, for ceiling openings with a diameter of 235 mm |
|
|
| 0209532 - ZADR-ALBA200-DM270 | Cover ring for ALBA R200E, for ceiling openings with a diameter of 255 mm |
|
|
| 0209612 - ZADR-ALBA200-DM310 | Cover ring for ALBA R200E, for ceiling openings with a diameter of 300 mm |
|
|
| 0209613 - ZADR-ALBA200-DM350 | Cover ring for ALBA R200E, for ceiling openings with a diameter of 340 mm |
|
|
| 0209614 - ZADR-ALBA200-DM410 | Cover ring for ALBA R200E, for ceiling openings with a diameter of 400 mm |
|
|
