ALBA R68A NDSW840SF0040OS / 0322661
Product Description
Downlight from the ALBA product family. Optical control via Diffuser, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 400 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0322661 |
| GTIN | 4029299937732 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 170 mm |
| Dimension D | 66 mm |
| Net weight | 0.409 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| System dimension | D 68 |
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 8.2 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Reflector | black |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Super Flood |

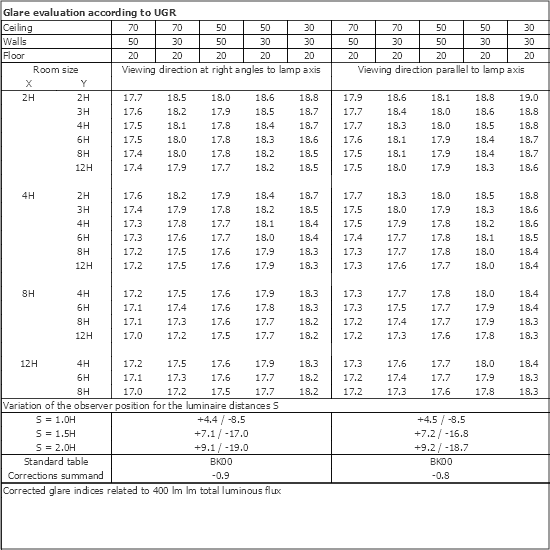

| UGR class | ≤ 19 |
| Rated luminous flux | 400 lm |
| Luminaire efficiency | 49 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
