APCON BLE-HYBRIDBOX-MINI-WS / 0209557

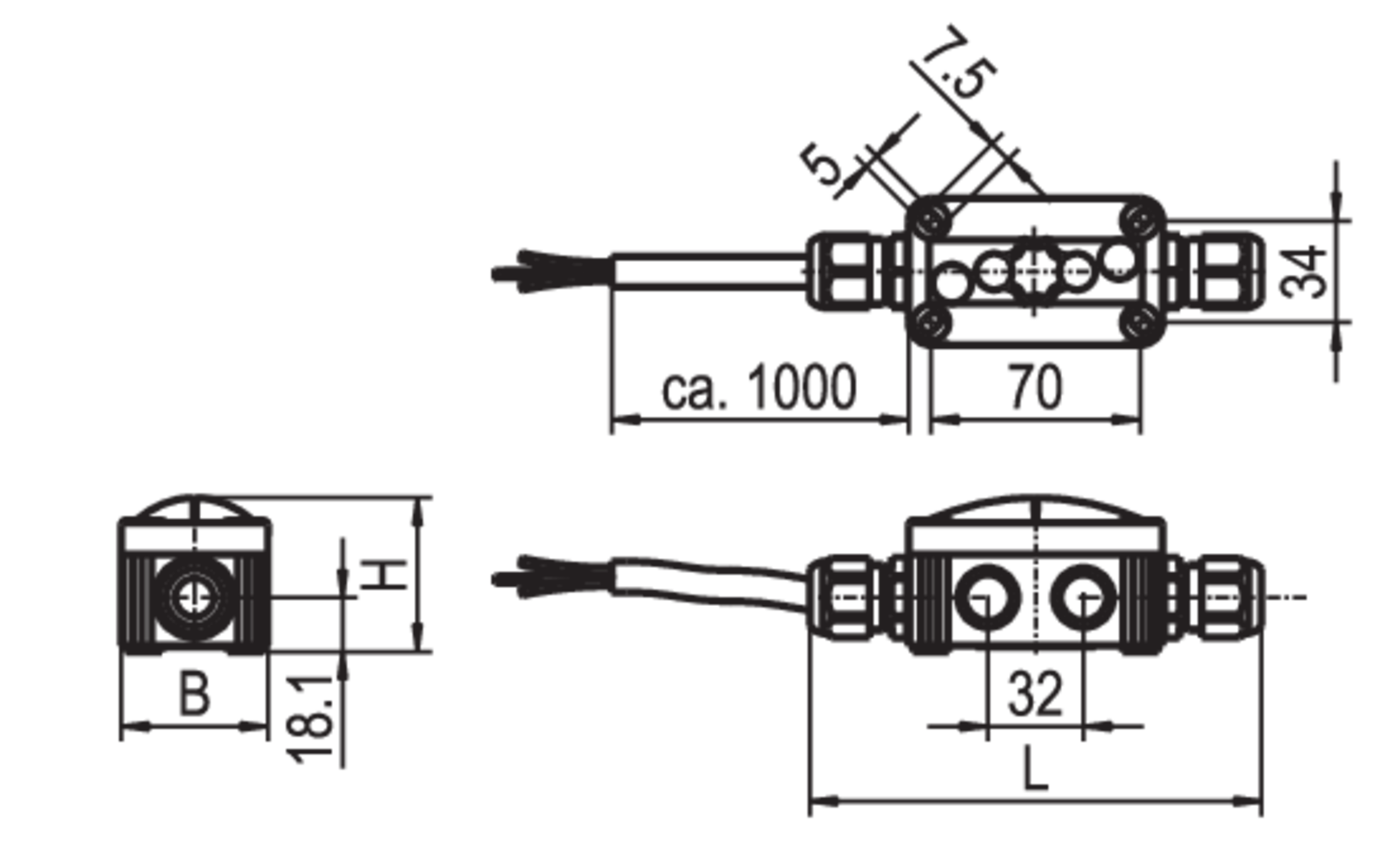

Bluetooth Low Energy (2.4-2.483 GHz )/ DALI Hybridbox Mini for connecting up to 4 dimmable DALI luminaires/addresses Device Type 6 (DT6) or DALI Tunable White Device Type 8 (DT8). Housing made of Plastic, white. Protection rating IP66 IP67, protection class I. Design for surface-mounted, recessed, inset and free-hanging. 2 M20 cable entries with strain relief. 5-core connection cable 1.5 mm² in length 1000 mm for luminaire connection. The device is connected upstream of one or up to 4 standard DALI luminaires and combines them into a Casambi address (maintenance-friendly broadcast operation). This means that they can be integrated into a Casambi network and configured via the Casambi APP. The luminaires can be controlled together in broadcast mode via other control components such as push-buttons, push-button couplers, sensors and via the Casambi app interface. Daily, weekly and annual schedules for controlling the connected luminaires can be configured. Depending on the luminaire version, connected Tunable White luminaires can be controlled directly to the selected colour temperature between 2700-6500 K. In addition, a circadian daylight sequence (Human Centric Lighting - HCL) can be individually configured within this range, which the connected luminaires follow together.
