APCON SEN15-SM | 0209551
Product Description

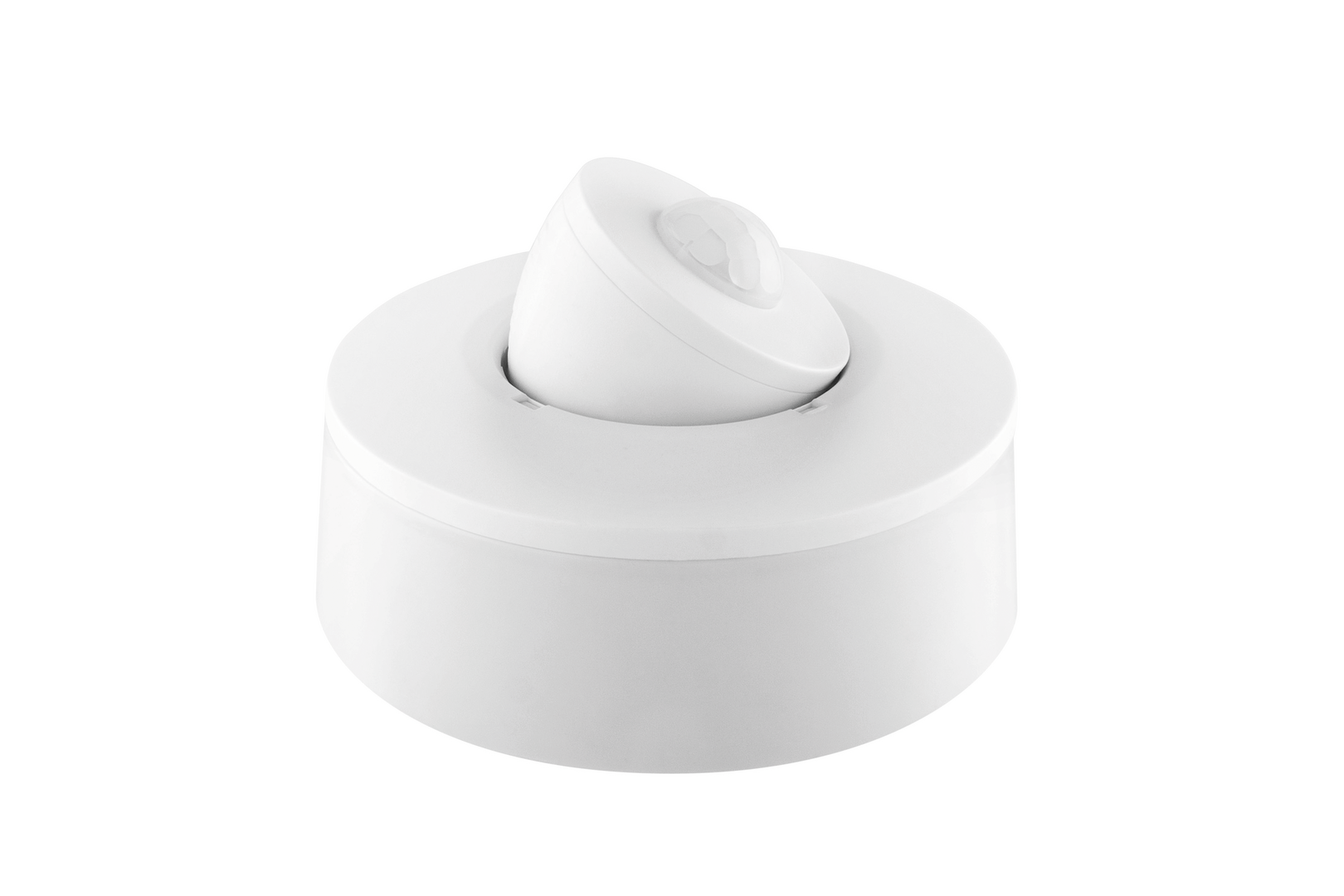

Combined DALI Light and motion sensor. {9836} Plastic, traffic white, similar to RAL 9016. Suitable for ceiling installation. Max. Mounting height 12 m. Configuration via the "DALI Cockpit" PC software. With light and motion detector. Detection range crosswise Ø 16.5 m, detection field 214 m².
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 0209551 |
| GTIN | 4029299914641 |
| Delivery promise |
2 working days (ex warehouse Jungingen)
i
The specified delivery promise applies to standard commercial quantities. It may vary for larger purchase quantities. |
General
| Product category | Light and motion sensor |
| Sensor | Light | Movement | Temperature |
Dimensions
| Dimension L | 104 mm |
| Dimension B | 104 mm |
| Dimension H | 47 mm |
| Net weight | 0.089 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Permissible ambient temperature | -20–70 °C |
| Housing material | Plastic |
Electrical version
| Type of control | DALI |
| Nominal voltage | 9.5–22.5 V, |
| Power consumption | 0.1 W |
| Protection class | II |
Sensor technology
| Transverse detection range | Ø 16.5 m |
| Angle of coverage | 360° |
| Detection field | 214 m² |
| Optimum mounting height | 12 m |
| Maximum mounting height | 12 m |
| Brightness setpoint | 0 - 2500 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
