ARKA-A1135DAWS830MPO0400 / 0637926
Product Description
Ceiling light made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Linear LED module, light colour 830, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Cover made of PMMA clear. Surface-mounted as single or continuous luminaire, end caps to be ordered separately. Luminaire connector required for continuous mounting. Through wiring available as accessory. With electronic electrical component. Replacement by specialist possible. Rated power 30.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0637926 |
| GTIN | 4029299666281 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1131 mm |
| Dimension B | 167 mm |
| Dimension H | 48 mm |
| Dimension A1 | 950 mm |
| Dimension AB | 1131 mm |
| Net weight | 4.100 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 30.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

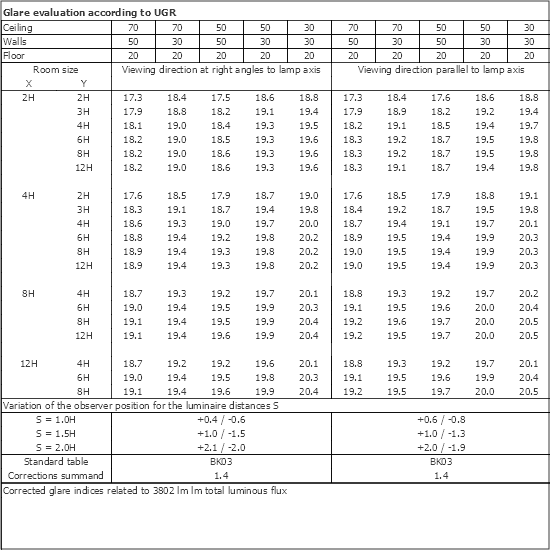

| UGR class | ≤ 19 |
| Rated luminous flux | 3800 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0209520 -
ARKA-ED-WS
|
White plastic end cap for ARKA surface-mounted and pendant luminaires, set of 2 pieces |
|
|
0209564 -
ARKA-AP-EWM565.5WS
|
ARKA extension module, white, 1 piece, for mounting and pendulum |
|
|
0209565 -
ARKA-AP-EWM705.5WS
|
ARKA extension module, white, 1 piece, for mounting and pendulum |
|
|
0209566 -
ARKA-AP-EWM1411WS
|
ARKA extension module, white, 1 piece, for mounting and pendulum |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0209521 -
ARKA-VS
|
Luminaire connector ARKA, 1 piece |
|
|
| 0209593 - AG ARKA-AP | Counterweight for ARKA-A with pendulum |
|
|
0209542 -
ZNADS-ARKA
|
Loop-through / strain relief and choke plugs |
|
|
0209536 -
ZIDV-ARKA 1135/5/1.5
|
Through wiring 5 x 1.5 mm² for ARKA-A1135/ARKA-P1135, maximum 10 A |
|
|
|
0209537 -
ZIDV-ARKA 1415/5/1.5
|
Through wiring 5 x 1.5 mm² for ARKA-A1415/ARKA-P1415, maximum 10 A |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
