ARKA-E1497DAWS8TWMPO0500 / 0833041
Product Description
Ceiling light made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Linear LED module, light colour 8TW, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Cover made of PMMA clear. Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 38.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0833041 |
| GTIN | 4029299960570 |
General
| Product category | Ceiling light |
| Range of application | Office | Education |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1497 mm |
| Dimension B | 184 mm |
| Dimension H | 85 mm |
| Dimension AE | 1230 mm |
| Net weight | 6.000 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 185 x 1500 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 5060 lm |
| Luminaire efficiency | 133 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209624 - ZBS-P ARKA-E 1500-1550 | Fixing kit for panel ceilings for ARKA-E1497 and ARKA-E1547 |
|
|
0210770 -
ZBS-E UNI CLIP 10-770
|
Fixing clip EBR..clamping thickn. T16: 12-25mm, T26: 12-50mm |
|
|
0210713 -
ZBS-E UNI 10-713
|
Universal fixing kit, 23 to 55mm clamping thickness |
|
|
0210717 -
ZBS-E UNI 10-717
|
Universal fixing kit, 45 to 80mm clamping thickness |
|
|
| 0209603 - ZPB-K ARKA-E | Snap hooks, DIN 5299-C, dimensions 40 mm x 4 mm, max. load capacity 50 kg, 2 pieces |
|
|
0209408 -
ZEW
|
Unlocking tool for easy opening of the luminaire |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Ceiling light made of steel with microprismatic diffuser. Optical control by Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Linear LED module, light colour 8TW, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Cover made of PMMA clear. Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 38.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0833041 |
| GTIN | 4029299960570 |
General
| Product category | Ceiling light |
| Range of application | Office | Education |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1497 mm |
| Dimension B | 184 mm |
| Dimension H | 85 mm |
| Dimension AE | 1230 mm |
| Net weight | 6.000 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 185 x 1500 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 5060 lm |
| Luminaire efficiency | 133 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

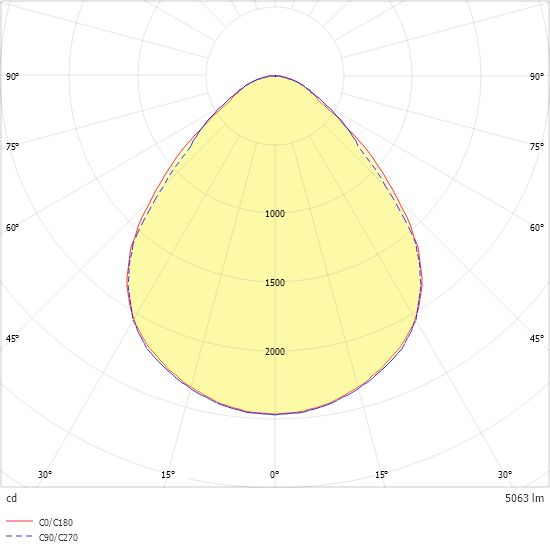

Light distribution curve
