BELA-EBS1720DAWS840MPS0400-SEN | 0838208
Product Description
With motion detector. Detection range crosswise 3,6 x 5,4 m, detection field 60 m².
Order Information
| Item number | 0838208 |
| GTIN | 4071222255192 |
| Delivery commitment | on demand |
General
| Product category | Ceiling light |
| Range of application | Office |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1720 mm |
| Dimension B | 147 mm |
| Dimension H | 66 mm |
| Net weight | 6.500 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | Plug |
| Number of poles | 5 |
| Conductor cross-section | 0.75–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–35 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

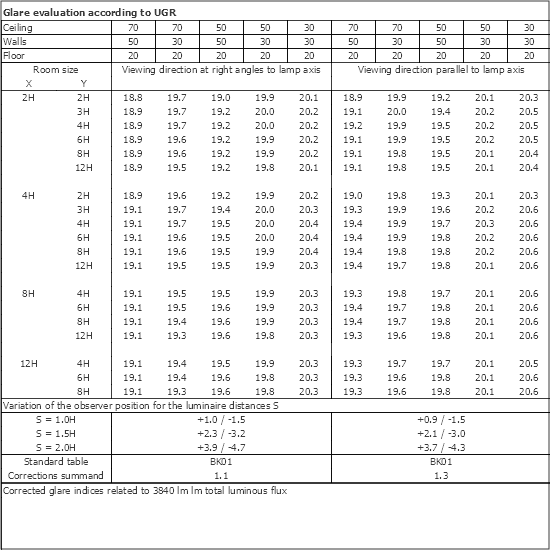

| UGR class | ≤ 19 |
| Rated luminous flux | 3840 lm |
| Luminaire efficiency | 160 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | 3,6 x 5,4 m |
| Frontal detection range | 3,6 x 5,4 m |
| Presence detection range | 2,4 x 3,6 m |
| Angle of coverage | 360° (oval) |
| Detection field | 60 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 3 m |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
| 0218443 - ZEL-BU-GESIS-TOP-3-POL 18I3 | Terminal block, 3-pole, spring-loaded connection, rated voltage 250 V, rated current 20 A, black |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
| 0212526 - ZEL-BU-GESIS-TOP-2-POL-DA | WIELAND-GESIS adapter socket, BST14i2, 2-pin, blue, for DALI control line, 1 piece |
|
|
With motion detector. Detection range crosswise 3,6 x 5,4 m, detection field 60 m².
Order Information
| Item number | 0838208 |
| GTIN | 4071222255192 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1720 mm |
| Dimension B | 147 mm |
| Dimension H | 66 mm |
| Net weight | 6.500 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | Plug |
| Number of poles | 5 |
| Conductor cross-section | 0.75–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–35 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3840 lm |
| Luminaire efficiency | 160 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | 3,6 x 5,4 m |
| Frontal detection range | 3,6 x 5,4 m |
| Presence detection range | 2,4 x 3,6 m |
| Angle of coverage | 360° (oval) |
| Detection field | 60 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 3 m |
Download Center
Light distribution curve
Approvals:
Attributes:
Connectivity and System Integration
Terminal block, 3-pole, spring-loaded connection, rated voltage 250 V, rated current 20 A, black
Electrical connection
WIELAND-GESIS adapter socket, BST14i2, 2-pin, blue, for DALI control line, 1 piece
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 m
