BRITT-EQ 0597DAWS835B0850 / 0838017
Product Description

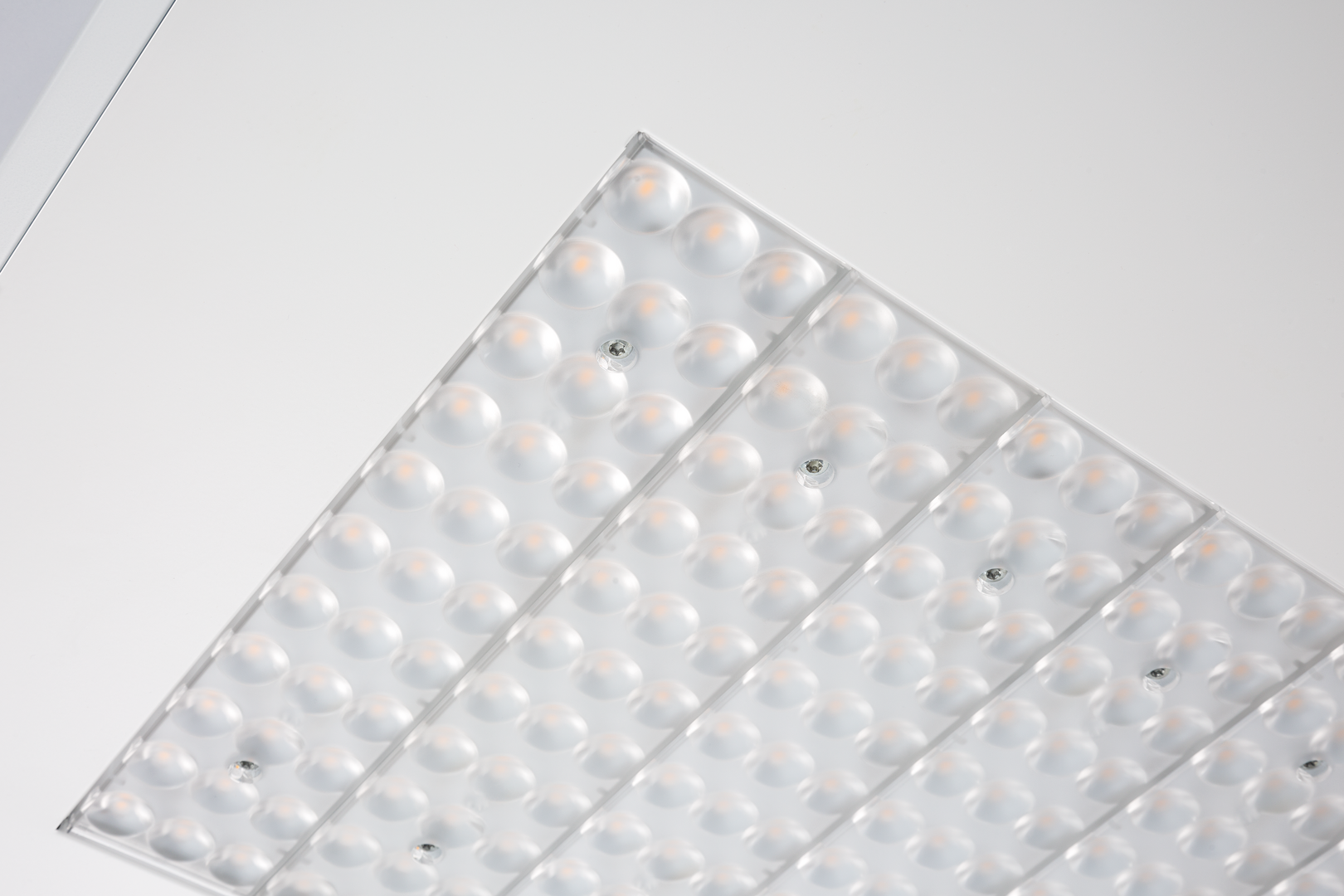

Ceiling light from the BRITT product family. Optical control via Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8590 lm in light colour 835, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0838017 |
| GTIN | 4029299558036 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Retail |
| Technology | driver@optic |
| Guarantee | 5 years |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 60 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 5.090 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| System dimension | 600 x 600 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 62.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 8590 lm |
| Luminaire efficiency | 139 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 3500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210777 -
ZBS-E ECOPHON
|
Fixing kit for Ecophon Focus Ds/Dg, height 14 mm |
|
|
|
0210778 -
ZBS-E OWA S31
|
Fixing kit for OWA TECTA S31, height 19.50 mm |
|
|
|
0210779 -
ZBS-E DIPLING
|
Fixing kit for Dipling KP, OWA S1, height 8 mm |
|
|
0210713 -
ZBS-E UNI 10-713
|
Fixing kit for universal swivel brackets, clamping thickness 23–55 mm |
|
|
0210717 -
ZBS-E UNI 10-717
|
Fixing kit for universal swivel bracket, clamping thickness 45–80 mm |
|
|
0210770 -
ZBS-E UNI CLIP 10-770
|
Installation of fixing clips, clamping thickness H60: 12–25 mm, H90: 12–50 mm |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
Ceiling light from the BRITT product family. Optical control via Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8590 lm in light colour 835, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0838017 |
| GTIN | 4029299558036 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Retail |
| Technology | driver@optic |
| Guarantee | 5 years |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 60 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 5.090 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| System dimension | 600 x 600 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 62.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 8590 lm |
| Luminaire efficiency | 139 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

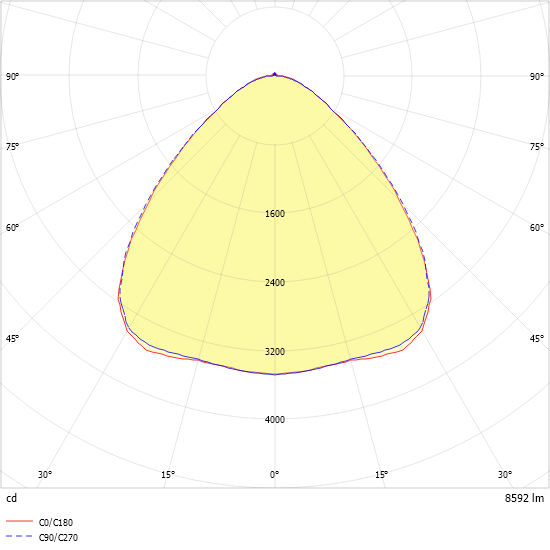

Light distribution curve
