EBRE-LED 414/6200-840 MPOD-DA | 0832917
Product Description
Ceiling light from the EBRE product family. Optical control via Microprismatic cover with an opal diffuser, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4240 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP54. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0832917 |
| GTIN | 4029299460988 |
| Delivery commitment | on demand |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Food |
| Range of application HACCP | Production | Unpackaged food |
Dimensions
| Dimension L | 622 mm |
| Dimension B | 622 mm |
| Dimension H | 66 mm |
| Dimension BE | 604 mm |
| Dimension LE | 604 mm |
| Net weight | 6.700 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 39.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4240 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 75.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0210163 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal mounting kit, IP54, clamping thickness 23 to 55 mm |
|
|
0210174 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal mounting kit, IP54, clamping thickness 45 to 80 mm |
|
|
| 0210780 - ZBS-E OWA S31 IP54 10-780 | Fixing kit EBR... IP54 for OWA TECTA S31, height 19.50 mm |
|
|
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Universal mounting kit, IP54 installation, for OWA S32, height 10 mm |
|
|
| 0210781 - ZBS-E DIPLING IP54 10-781 | Fixing kit, IP54 installation, for Dipling KP, height 8 mm |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0203626 -
ZGH GLASHEBER
|
Rubber suction cup for lifting the protective glass |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
Light control
| Item number - Designation | Product Description | Download | Wishlist |
0209500
-
APCON BLE SOLUTION PACKAGE ONE
|
Bluetooth Low Energy / BLE room solution package for connecting up to 20 dimmable Device Type 6 (DT6) and Tunable White DALI luminaires Device Type 8 (DT8). Consisting of an APCON hybrid box and a combined light and presence sensor DALI-2 Hybrid box for recessed ceiling installation or surface mounting. Light and presence sensor for recessed ceiling mounting. 14x break-out cable entries M16/20 and 4x double membrane connectors M20 included. Bluetooth Low Energy 2.4-2.483 GHz. The maximum cable length of the push-button input is 5 m. Connection of a daylight sensor and many presence sensors possible up to the power limit of the DALI supply. Room solution package featuring presence detection and daylight-dependent control, as well as the option to connect a push-button switch for switching the connected luminaires on and off and dimming them. Easy-to-maintain broadcast mode; all luminaires behave in the same way. Can be combined and expanded with other control elements such as push-button switches, Push-button couplers and sensors. Configuration and operation via the Casambi app. Daily, weekly and annual schedules for controlling the connected luminaires can be configured. Depending on the luminaire model, connected Tunable White luminaires can be controlled directly to the selected colour temperature within the range of 2700–6500 K. Furthermore, a circadian daylight profile (Human Centric Lighting – HCL) can be individually configured and stored within this range, which the connected luminaires then follow in unison. |
|
|
Ceiling light from the EBRE product family. Optical control via Microprismatic cover with an opal diffuser, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4240 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP54. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0832917 |
| GTIN | 4029299460988 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Food |
| Range of application HACCP | Production | Unpackaged food |
Dimensions
| Dimension L | 622 mm |
| Dimension B | 622 mm |
| Dimension H | 66 mm |
| Dimension BE | 604 mm |
| Dimension LE | 604 mm |
| Net weight | 6.700 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 39.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4240 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 75.000 h |
Download Center

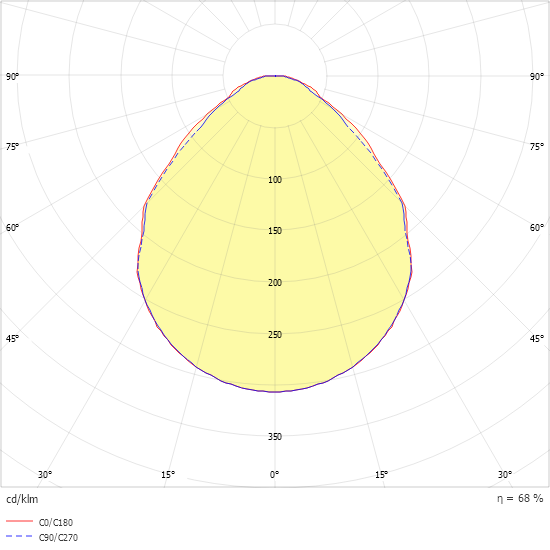

Light distribution curve
