EBRE9-R2X115/30ND-OS / 0850273
Product Description
Ceiling light from the EBRE product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 7380 lm in light colour 40, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0850273 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1247 mm |
| Dimension B | 310 mm |
| Dimension H | 95 mm |
| Dimension BE | 292 mm |
| Dimension LE | 1229 mm |
| Net weight | 7.1 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 68.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |

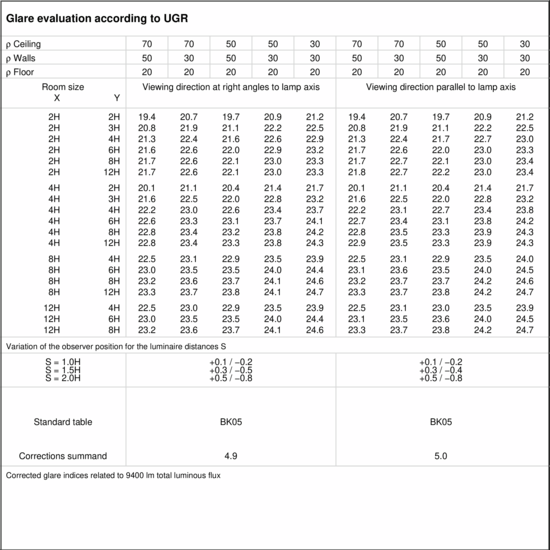

| UGR class | ≤ 25 |
| Rated luminous flux | 7380 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210717 -
ZBS-E UNI 10-717
|
Universal fixing kit, 45 to 80mm clamping thickness |
|
|
0210713 -
ZBS-E UNI 10-713
|
Universal fixing kit, 23 to 55mm clamping thickness |
|
|
0210770 -
ZBS-E UNI CLIP 10-770
|
Fixing clip EBR..clamping thickn. T16: 12-25mm, T26: 12-50mm |
|
|
0210127 -
ZBS-E BR 10-127
|
Fixing kit for trim strip ceilings |
|
|
0210777 -
ZBS-E ECOPHON
|
Fixing kit EBR... for Ecophon Focus Ds/Dg, height 14 mm |
|
|
|
0210779 -
ZBS-E DIPLING
|
Fixing kit EBR... for Dipling KP, height 8 mm |
|
|
|
0210782 -
BEF.-SATZ EBR.. OWA S32
|
Fixing kit EBR... for OWA S32, height 10.0 mm |
|
|
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Fixing kit EBR... IP54 for OWA S32, height 10.0 mm |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
