EBRME-LED 418/5200-840 OSR-DA / 0832830
Product Description
Ceiling light from the EBRME product family. Optical control via , beam pattern symmetric, , light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4072 lm in light colour 40, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP54 room side. With electronic electrical component DALI. . Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 0832830 |
| GTIN | 4029299400625 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Industry | Food |
| HACCP certified |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 90 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 6.200 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP54 room side |
| Glow-wire test | 650 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Rated luminous flux | 4072 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210770 -
ZBS-E UNI CLIP 10-770
|
Fixing clip EBR..clamping thickn. T16: 12-25mm, T26: 12-50mm |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
| 0210781 - ZBS-E DIPLING IP54 10-781 | Fixing kit for installation IP54 for Dipling KP, height 8.0 mm |
|
|
0210127 -
ZBS-E BR 10-127
|
Fixing kit for trim strip ceilings |
|
|
0210163 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 23 to 55mm clamping thickness |
|
|
0210174 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 45 to 80mm clamping thickness |
|
|
Ceiling light from the EBRME product family. Optical control via , beam pattern symmetric, , light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 4072 lm in light colour 40, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP54 room side. With electronic electrical component DALI. . Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 0832830 |
| GTIN | 4029299400625 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Industry | Food |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 90 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 6.200 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP54 room side |
| Glow-wire test | 650 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Rated luminous flux | 4072 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center

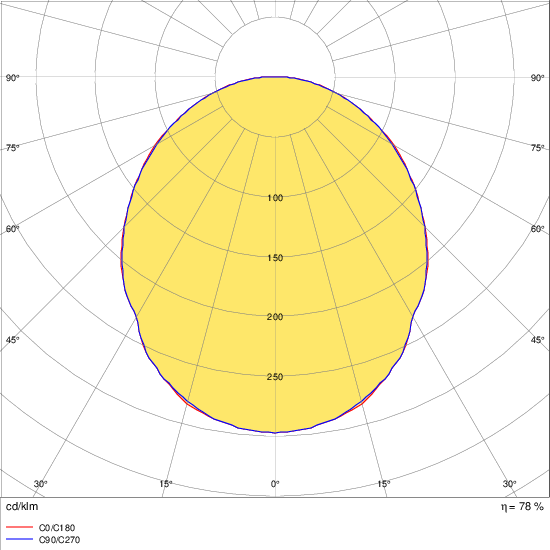

Light distribution curve
