EBW-R1X115/30DA / 0860395
Product Description
Ceiling light from the EBW product family. Optical control via Reflector, beam pattern asymmetric, angled beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3730 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Installation with corresponding fixing kit (accessories, to be ordered separately) in metal panelled ceilings or sawn ceiling openings. Recommended wall clearance: 1/3 of the room height. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0860395 |
| GTIN | 4029299491340 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1251 mm |
| Dimension B | 214 mm |
| Dimension H | 72 mm |
| Dimension BE | 196 mm |
| Dimension L1 | 1226 mm |
| Net weight | 5.600 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| Rated luminous flux | 3730 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210017 -
BEF.-SATZ UNIV. 45-80MM/10-017
|
Universal fixing kit, clamping range 45-80mm |
|
|
0210013 -
BEF.-SATZ UNIV. 23-55MM/10-013
|
Universal fixing kit, clamping range 23-55 mm |
|
|
0210921 -
ABSCHLUSSWINKEL KPL. EBW
|
EBW end trim kit, for single lum. or start/end of cont. run |
|
|
Ceiling light from the EBW product family. Optical control via Reflector, beam pattern asymmetric, angled beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3730 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Installation with corresponding fixing kit (accessories, to be ordered separately) in metal panelled ceilings or sawn ceiling openings. Recommended wall clearance: 1/3 of the room height. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0860395 |
| GTIN | 4029299491340 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1251 mm |
| Dimension B | 214 mm |
| Dimension H | 72 mm |
| Dimension BE | 196 mm |
| Dimension L1 | 1226 mm |
| Net weight | 5.600 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| Rated luminous flux | 3730 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

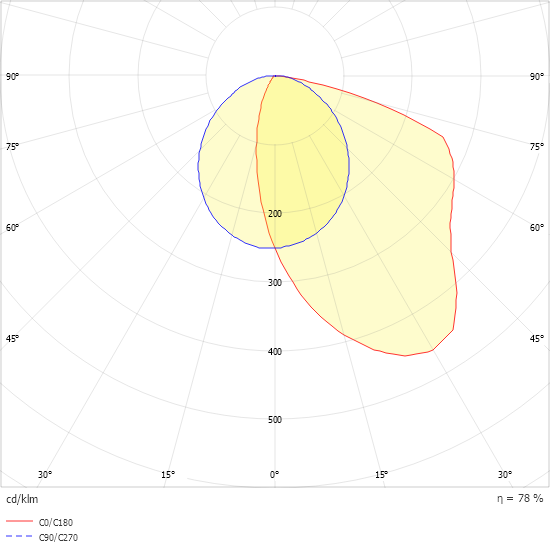

Light distribution curve
