EDLQ 195/3000-TW-SM / 0336730
Product Description
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3550 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 25 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336730 |
| GTIN | 4029299542028 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 150 mm |
| Dimension B1 | 90 mm |
| Dimension BA max | 170 mm |
| Dimension BA min | 167 mm |
| Dimension HE | 155 mm |
| Dimension L1 | 245 mm |
| Dimension L4 | 265 mm |
| Dimension Q | 195 mm |
| Dimension S | 25 mm |
| Net weight | 1.44 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3550 lm |
| Luminaire efficiency | 154 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0201069 -
UGEBD ... -UR
|
Changeover relay for EBD... (not HIT configuration) |
|
|
Housings, Covers, and Design
| Item number - Designation | Product Description | Download | Wishlist |
| 0209010 - DQ195-DPO-K-D-W | Opal microprism panel, white PC frame for downlight, edge length 195 mm |
|
|
| 0209013 - DQ195-DPS-K-D-W | Microprism panel, PC frame, white, for downlight, edge length 195 mm |
|
|
0204426 -
DQ195-DR-B-W
|
White decorative metal frame, for EBDQ 195 |
|
|
0204889 -
DQ195-MPS-G-D-W
|
Decorative float glass pane with microprisms to reduce glare, white frame for EBDQ / ABDQ 195 |
|
|
| 0209019 - DQ195-MPS-K-D-W | Microprism panel, PC frame, white, for downlight, edge length 195 mm |
|
|
| 0204176 - DQ195-RM-G-SB-W | Frosted tempered glass panel, white polycarbonate frame for a downlight with a side length of 150 mm |
|
|
0204431 -
DQ195-SM-G-D-W
|
Decorative glass pane made of float glass, matt-finished on the outside, frame in white EBDQ / ABDQ 195 |
|
|
0204164 -
DQ195-SO-G-D-W
|
Decorative glass panel made of opal float glass, frame in white EBDQ / ABDQ 195 |
|
|
| 0209016 - DQ195-SOM-K-D-W | Opal satin-finished panel, white PC frame for downlight, edge length 195 mm |
|
|
0204421 -
DQ195-SPM-G-SB-W
|
Decorative glass pane made of toughened safety glass (ESG), frosted on the inside, white frame EBDQ / ABDQ 195 |
|
|
Lighting Technology and Optics
| Item number - Designation | Product Description | Download | Wishlist |
| 0208876 - DQ195-ASLP-K-D-W | PMMA panel, longitudinal prisms for asymmetrical light distribution, white, for downlights, edge length 195 mm |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens for LED board, transparent PC, 60° beam angle |
|
|
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3550 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 25 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336730 |
| GTIN | 4029299542028 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 150 mm |
| Dimension B1 | 90 mm |
| Dimension BA max | 170 mm |
| Dimension BA min | 167 mm |
| Dimension HE | 155 mm |
| Dimension L1 | 245 mm |
| Dimension L4 | 265 mm |
| Dimension Q | 195 mm |
| Dimension S | 25 mm |
| Net weight | 1.44 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3550 lm |
| Luminaire efficiency | 154 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

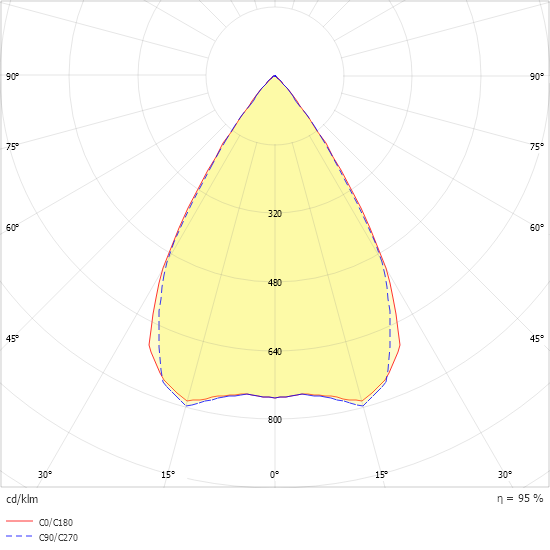

Light distribution curve
