EDLQ 195/3000-TW-W / 0336731
Product Description
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3700 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 25 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336731 |
| GTIN | 4029299542035 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 100 mm |
| Dimension B1 | 90 mm |
| Dimension BA max | 170 mm |
| Dimension BA min | 167 mm |
| Dimension HE | 105 mm |
| Dimension L1 | 245 mm |
| Dimension L4 | 265 mm |
| Dimension Q | 195 mm |
| Dimension S | 25 mm |
| Net weight | 1.44 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

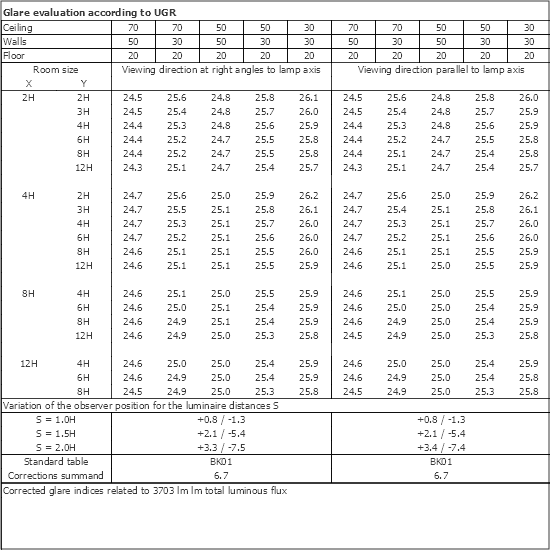

| UGR class | ≤ 25 |
| Rated luminous flux | 3700 lm |
| Luminaire efficiency | 161 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
| 0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
| 0209016 - DQ195-SOM-K-D-W | Panel PMMA, opal satin finish, white decorative frame |
|
|
| 0204176 - DQ195-RM-G-SB-W | Decorative glass ESG, interior open, matt finish, white decorative frame |
|
|
| 0209019 - DQ195-MPS-K-D-W | Panel PMMA, protruding micro-prisms, white decorative frame |
|
|
| 0209013 - DQ195-DPS-K-D-W | Panel PMMA, embossed micro-prisms, white decorative frame |
|
|
| 0209010 - DQ195-DPO-K-D-W | Panel PMMA, embossed opal micro-prisms, white decorative frame |
|
|
0204889 -
DQ195-MPS-G-D-W
|
Decor. float glass disc, microprisms with frame white |
|
|
0204164 -
DQ195-SO-G-D-W
|
Opal float glass disc with white decorative ring |
|
|
0204436 -
DQ195-SK-G-D-W
|
Transparent float glass disc with white decorative ring |
|
|
0204431 -
DQ195-SM-G-D-W
|
Float glass disc, matt finish, with white decorative frame |
|
|
0204421 -
DQ195-SPM-G-SB-W
|
Decorative safety glass, matt interior, white decor frame |
|
|
0201069 -
UGEBD ... -UR
|
Changeover relay for EBD..., (not for HIT lamps) |
|
|
0204426 -
DQ195-DR-B-W
|
Decor frame, white |
|
|
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3700 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 25 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0336731 |
| GTIN | 4029299542035 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 195 mm |
| Dimension B | 195 mm |
| Dimension H | 100 mm |
| Dimension B1 | 90 mm |
| Dimension BA max | 170 mm |
| Dimension BA min | 167 mm |
| Dimension HE | 105 mm |
| Dimension L1 | 245 mm |
| Dimension L4 | 265 mm |
| Dimension Q | 195 mm |
| Dimension S | 25 mm |
| Net weight | 1.44 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3700 lm |
| Luminaire efficiency | 161 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

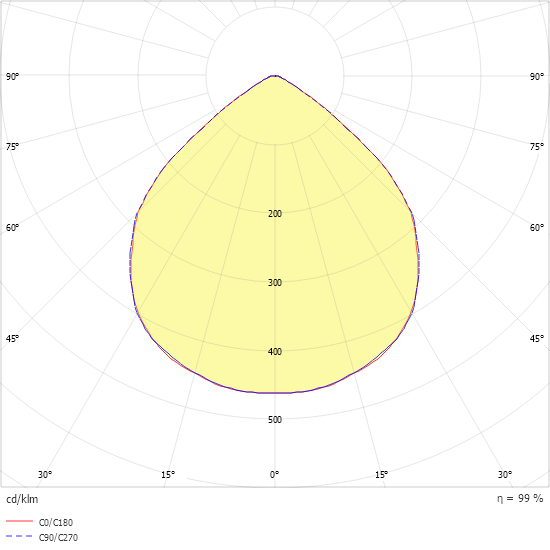

Light distribution curve
