EDLQ 235 ... W

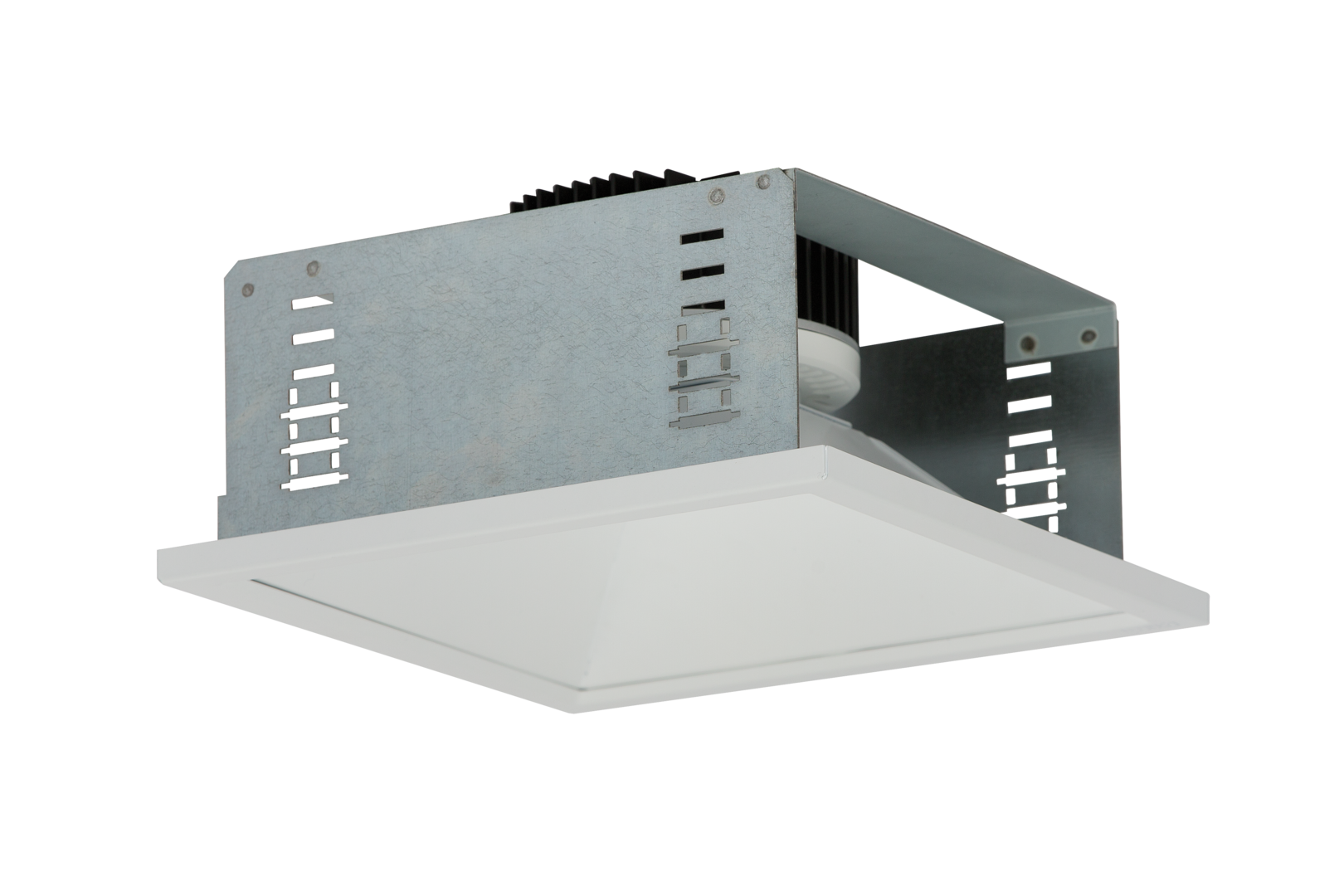

Design: Square recessed downlighter, edge length 235 mm with LED module, comprising of reflector housing and gear tray. Fitted with RIDI LED module, 2000, 3000, 4000 and 5000 lumen with passive heat sink. Protection rating on the room side IP 40, ceiling side IP20
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2080
Power (W): 16
Efficiency (lm/W): 130
0331348 - EDLQ 235/2000-830 W-DALI
Control:
DALI-2
Colour temperature:
3000 K
Luminous flux (lm): 2080
Power (W): 16
Efficiency (lm/W): 130
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2080
Power (W): 16
Efficiency (lm/W): 130
0331347 - EDLQ 235/2000-840 W-DALI
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 2080
Power (W): 16
Efficiency (lm/W): 130
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 3260
Power (W): 23
Efficiency (lm/W): 142
0331350 - EDLQ 235/3000-830 W-DALI
Control:
DALI-2
Colour temperature:
3000 K
Luminous flux (lm): 3260
Power (W): 23
Efficiency (lm/W): 142
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3260
Power (W): 23
Efficiency (lm/W): 142
0331349 - EDLQ 235/3000-840 W-DALI
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 3260
Power (W): 23
Efficiency (lm/W): 142
Control:
DALI-2
Colour temperature:
3000–6500 K
Luminous flux (lm): 3290
Power (W): 28
Efficiency (lm/W): 118
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 4200
Power (W): 31
Efficiency (lm/W): 135
0331352 - EDLQ 235/4000-830 W-DALI
Control:
DALI-2
Colour temperature:
3000 K
Luminous flux (lm): 4200
Power (W): 31
Efficiency (lm/W): 135
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 4200
Power (W): 31
Efficiency (lm/W): 135
0331351 - EDLQ 235/4000-840 W-DALI
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 4200
Power (W): 31
Efficiency (lm/W): 135
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 5340
Power (W): 44
Efficiency (lm/W): 121
0331468 - EDLQ 235/5000-830 W-DALI
Control:
DALI-2
Colour temperature:
3000 K
Luminous flux (lm): 5340
Power (W): 44
Efficiency (lm/W): 121
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5340
Power (W): 44
Efficiency (lm/W): 121
0331467 - EDLQ 235/5000-840 W-DALI
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 5340
Power (W): 44
Efficiency (lm/W): 121
