EDLR-E2 195/1100-840 W / 0321511

Product Description

Downlight from the EDLR-E2 product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1350 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.

Note: Connector blocks for a cable max.1.5 mm². Luminaire-to-luminaire through wiring requires separate options to be ordered: connecting cable and T-connector.

show more show less

Add to wishlist

Order Information

Item number	0321511
GTIN	4029299502985

General

Product category	Downlight
Range of application	Education \| Retail

Dimensions

Dimension H	65 mm
Dimension D	195 mm
Dimension D2	195 mm
Dimension B4	45 mm
Dimension DE max	185 mm
Dimension DE min	181 mm
Dimension H4	25 mm
Dimension HE	70 mm
Dimension L4	115 mm
Net weight	0.330 kg

Dimension drawing

Mounting

Mounting type	Installation
Mounting position	Ceiling

Housing

System dimension	D 195
Colour	traffic white, similar to RAL 9016
Protection class	IP20 \| IP44 room side
Impact resistance	IK07
Glow-wire test	650 °C
Permissible ambient temperature	-20–25 °C
Housing material	Plastic
Cover material	PC clear

Electrical version

Type of control	On/Off
Nominal voltage	220–240 V, 50–60 Hz
Rated power	9.0 W
Protection class	II

Lighting technology

Light distributor	Reflector
Reflector	white
Light emission	direct
Light distribution	symmetric
Beam characteristics	extremely wide beam
UGR class	≤ 22
Rated luminous flux	1350 lm
Luminaire efficiency	150 lm/W

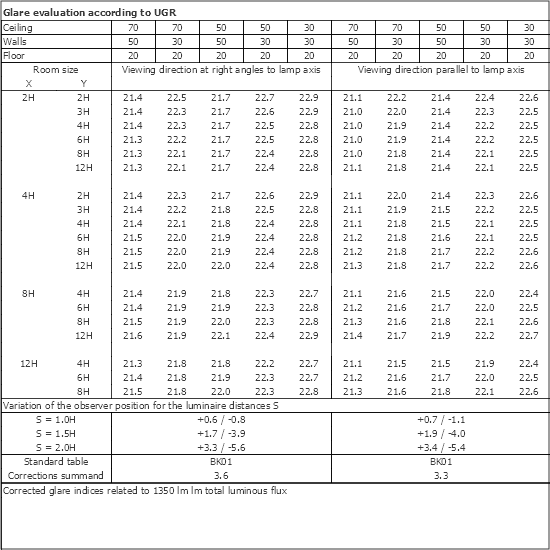

UGR table

Light source

Lamp	LED-M
Lamp included	Yes
Colour rendering index Ra	≥ 80
Colour temperature	4000 K
Colour location tolerance (SDCM)	< 3 SDCM
Rated life L80B50 (tq = 25 °C)	50.000 h

Download Center

Approvals:

Item number - Designation	Produktbeschreibung	Download
0203035 - ZAL-ST-GST18I3-SKI SW/0.3	Black, 3-pole, Wieland GST18i3 connector 0.3m long, Protection Class I	Data sheet Mounting information
0203021 - ZEL-T-GST18I3 SW	Black, 3 pole Wieland GST18i3 T-distributor	Data sheet Mounting information
0203014 - ZAL-ST-GST18I3-SKII SW/0.3	Black, 3 pole, Wieland GST18i3 connector 0.3m long, Protection Class II	Data sheet Mounting information
0202497 - ZV-EDLR-B90	Fresnel lens, half-peak angle of 90 degrees, PC	Data sheet Mounting information
0202496 - ZV-EDLR-T60	Fresnel lens, half-peak angle of 60 degrees, PC	Data sheet Mounting information
0209456 - ZADR-EDLR195-DM210	Cover ring for EDLR195 up to ceiling opening DM 200	Product image Data sheet
0209457 - ZADR-EDLR195-DM230	Cover ring for EDLR195 up to ceiling opening DM 220	Product image Data sheet
0202784 - PES EBD. 195/100/150	Plank ceiling mounting kit, for module 100 and 150 ceilings	Product image Data sheet Mounting information
0202785 - PES EBD. 195/100/200	Plank ceiling mounting kit, for module 100 and 200 ceilings	Product image Data sheet Mounting information
