EDLR-E2 195/3000-840 WS-EDS3 / 0326621//377
Product Description
Downlight from the EDLR-E2 product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3180 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Note: Luminous flux in emergency mode: app. 500 lm
Order Information
| Item number | 0326621//377 |
| GTIN | 4029299530032 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 85 mm |
| Dimension D | 195 mm |
| Dimension D2 | 195 mm |
| Dimension B1 | 115 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 181 mm |
| Dimension HE | 110 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Net weight | 1.500 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | D 195 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–25 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

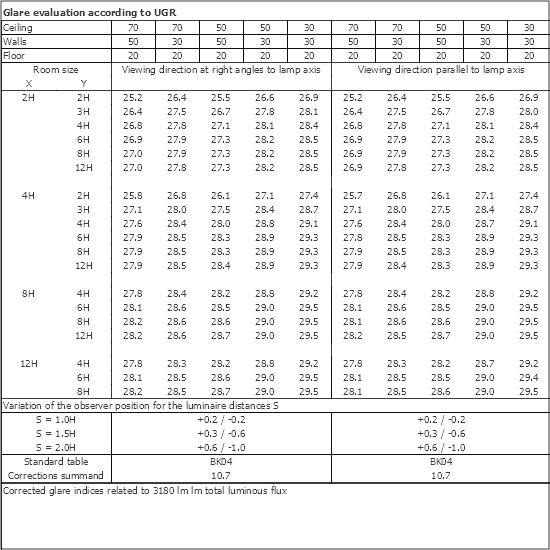

| UGR class | > 25 |
| Rated luminous flux | 3180 lm |
| Luminaire efficiency | 138 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 500 lm |
| Automatic self-test | Yes |
| Battery type | LiFePO4 |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
