EDLR-E2 235/1100-840 W-DALI / 0331515
Product Description
Downlight from the EDLR-E2 product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1340 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331515 |
| GTIN | 4029299511321 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 75 mm |
| Dimension D | 235 mm |
| Dimension D2 | 235 mm |
| Dimension B4 | 70 mm |
| Dimension DE max | 225 mm |
| Dimension DE min | 223 mm |
| Dimension H4 | 31 mm |
| Dimension HE | 90 mm |
| Dimension L4 | 200 mm |
| Net weight | 0.490 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
Housing
| System dimension | D 235 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

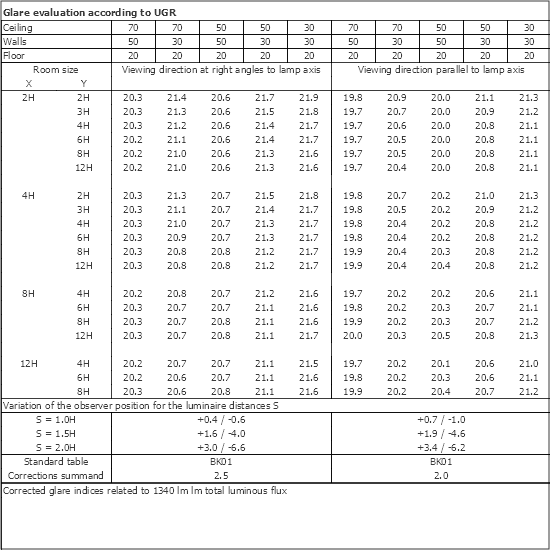

| UGR class | ≤ 22 |
| Rated luminous flux | 1340 lm |
| Luminaire efficiency | 149 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
| 0203035 - ZAL-ST-GST18I3-SKI SW/0.3 | Black, 3-pole, Wieland GST18i3 connector 0.3m long, Protection Class I |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
| 0203021 - ZEL-T-GST18I3 SW | Black, 3 pole Wieland GST18i3 T-distributor |
|
|
| 0203014 - ZAL-ST-GST18I3-SKII SW/0.3 | Black, 3 pole, Wieland GST18i3 connector 0.3m long, Protection Class II |
|
|
0209458 -
ZADR-EDLR235-DM250
|
Cover ring for EDLR235 up to ceiling opening DM 240 |
|
|
0209459 -
ZADR-EDLR235-DM270
|
Cover ring for EDLR235 up to ceiling opening DM 260 |
|
|
0202786 -
PES EBD. 235/100/150
|
Plank ceiling mounting kit, module 100 and 150 |
|
|
|
0202787 -
PES EBD. 235/200
|
Plank ceiling mounting kit, module 200 |
|
|
Downlight from the EDLR-E2 product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 1340 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Fixing clips for clamping thicknesses from 0 to 20 mm pre-assembled to the luminaire housing as standard. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331515 |
| GTIN | 4029299511321 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension H | 75 mm |
| Dimension D | 235 mm |
| Dimension D2 | 235 mm |
| Dimension B4 | 70 mm |
| Dimension DE max | 225 mm |
| Dimension DE min | 223 mm |
| Dimension H4 | 31 mm |
| Dimension HE | 90 mm |
| Dimension L4 | 200 mm |
| Net weight | 0.490 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
Housing
| System dimension | D 235 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 1340 lm |
| Luminaire efficiency | 149 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

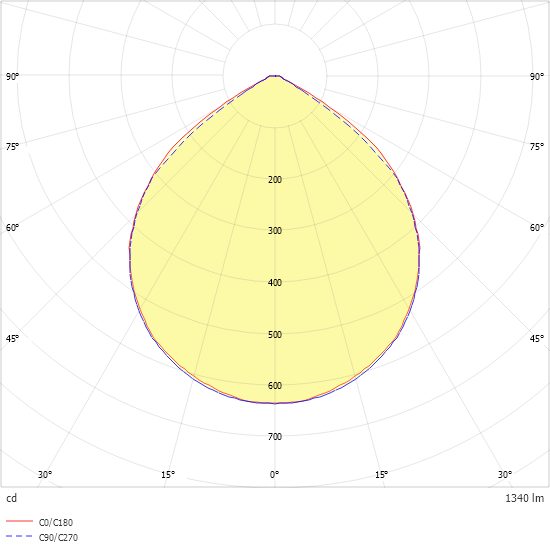

Light distribution curve
