EDLR 195/3000-830 W-ED3 / 0321322//375
Product Description
Downlight from the EDLR product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3250 lm in light colour 830, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. In addition to the standard fixing clamps for clamping thicknesses from 0 to 25 mm, special fixing kits such as panel mounting kits, reinforcement plates, concrete casting boxes, plaster rings, angled and semi-recessed mounting kits are available as accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: Luminous flux in emergency mode: app. 500 lm
Order Information
| Item number | 0321322//375 |
| GTIN | 4029299417630 |
General
| Product category | Downlight |
Dimensions
| Dimension H | 105 mm |
| Dimension D | 195 mm |
| Dimension D2 | 195 mm |
| Dimension B1 | 115 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 181 mm |
| Dimension HE | 125 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Net weight | 1.920 kg |
Mounting
| Mounting type | Installation |
Housing
| System dimension | D 195 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

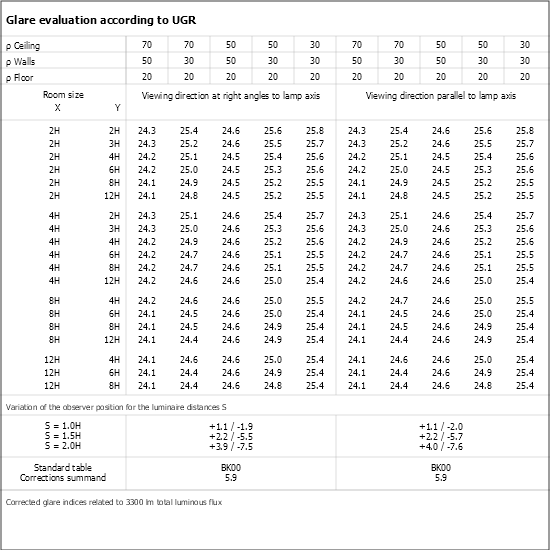

| UGR class | ≤ 25 |
| Rated luminous flux | 3250 lm |
| Luminaire efficiency | 141 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 500 lm |
| Automatic self-test | Yes |
| Battery type | NiCd |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0203006 -
BET EDLR 195
|
Concrete casting box for EDLR 195 -in-situ concrete only- |
|
|
0202675//636 -
DR195-DR-K-ES
|
Decorative ring, brushed stainless steel |
|
|
|
0202675//609 -
DR195-DR-K-SG
|
Decorative ring, specular aluminium, silver |
|
|
0202802//701 -
DR195-HWNR1-K-D-W
|
Information sign No.1 with white decorative ring |
|
|
| 0202802//711 - DR195-HWNR11-K-D-W | Information sign No.11 with white decorative ring |
|
|
| 0202802//712 - DR195-HWNR12-K-D-W | Information sign No.12 with white decorative ring |
|
|
|
0202802//724 -
DR195-HWNR24-K-D-W
|
Information sign No.24 with white decorative ring |
|
|
| 0202802//704 - DR195-HWNR4-K-D-W | Information sign No.4 with white decorative ring |
|
|
| 0202802//705 - DR195-HWNR5-K-D-W | Information sign No.5 with white decorative ring |
|
|
| 0202802//708 - DR195-HWNR8-K-D-W | Information sign No.8 with white decorative ring |
|
|
0204884 -
DR195-MPS-G-D-W
|
Decor. float glass disc, microprisms with decor ring white |
|
|
0202692 -
DR195-RM-G-SB-W
|
Decor. safety glass, matt, int.open, white ring |
|
|
0202863 -
DR195-SK-G-D-W
|
Transparent float glass disc with white decorative ring |
|
|
|
0202734 -
DR195-SM-G-D-W
|
Float glass disc, matt finish, with white decorative ring |
|
|
0202739 -
DR195-SO-G-D-W
|
Float glass disc, opal finish, with white decorative ring |
|
|
| 0208861 - DR195-SOM-K-D-W | Panel PMMA, opal satin finish, white decorative ring |
|
|
0202809 -
HES EBD 195/50
|
Semi-recessed mounting kit, H = 50mm |
|
|
0202784 -
PES EBD. 195/100/150
|
Plank ceiling mounting kit, for module 100 and 150 ceilings |
|
|
|
0202785 -
PES EBD. 195/100/200
|
Plank ceiling mounting kit, for module 100 and 200 ceilings |
|
|
| 0202900 - PES EBD... UGEBD | Mounting bracket for gear tray UGEBD with PES EBD... |
|
|
0202793 -
VP EBD. 195-600
|
Strengthening plate for non-rigid module 600 ceilings |
|
|
|
0202920 -
VP EBD. 195-625
|
Strengthening plate for non-rigid module 625 ceilings |
|
|
0202928 -
ZES EBD 150-235/80
|
Fixing kit EBD 150 - 235, for ceiling thicknesses to 80 mm |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
0209456 -
ZADR-EDLR195-DM210
|
Cover ring for EDLR195 up to ceiling opening DM 200 |
|
|
0209457 -
ZADR-EDLR195-DM230
|
Cover ring for EDLR195 up to ceiling opening DM 220 |
|
|
Downlight from the EDLR product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3250 lm in light colour 830, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. In addition to the standard fixing clamps for clamping thicknesses from 0 to 25 mm, special fixing kits such as panel mounting kits, reinforcement plates, concrete casting boxes, plaster rings, angled and semi-recessed mounting kits are available as accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: Luminous flux in emergency mode: app. 500 lm
Order Information
| Item number | 0321322//375 |
| GTIN | 4029299417630 |
General
| Product category | Downlight |
Dimensions
| Dimension H | 105 mm |
| Dimension D | 195 mm |
| Dimension D2 | 195 mm |
| Dimension B1 | 115 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 181 mm |
| Dimension HE | 125 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Net weight | 1.920 kg |
Mounting
| Mounting type | Installation |
Housing
| System dimension | D 195 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 23.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3250 lm |
| Luminaire efficiency | 141 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 500 lm |
| Automatic self-test | Yes |
| Battery type | NiCd |
