EIHLS-L 480/3360-840 OS / 0850633
Product Description
Ceiling light from the EIHLS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 26060 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP54 IP64 room side. Prepared for installation in various ceiling systems with corresponding fixing kit (accessory). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
EIHLS-L 154, 180, 254, 280, 424: all lamps are wired to L1. . EIHLS-L 354, 380: central lamp wired to L1, outer lamps to L2. . EIHLS-L 454, 480: both central lamps wired to L1, outer lamps to L2. . Other wiring arrangements are available on request.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0850633 |
| GTIN | 4029299491159 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food | Sports and multipurpose halls |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1548 mm |
| Dimension B | 624 mm |
| Dimension H | 81 mm |
| Dimension A1 | 1250 mm |
| Dimension A2 | 435 mm |
| Dimension A3 | |
| Dimension BE | 604 mm |
| Dimension H2 | |
| Dimension LE | 1529 mm |
| Net weight | 24.700 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 | IP64 room side |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 244.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 26060 lm |
| Luminaire efficiency | 107 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210995 -
ZBS-SP.36-40
|
Fixing kit .36W f. hall plank ceilings, trunk. ht. 40 mm |
|
|
|
0210994 -
ZBS-SP.36-35
|
Fixing kit .36W f. hall plank ceilings, trunk. ht. 35 mm |
|
|
|
0210078 -
ZBS-SP.58-35
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 35 mm |
|
|
|
0210076 -
ZBS-SP.58-30
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 30 mm |
|
|
|
0210993 -
ZBS-SP.36-30
|
Fixing kit .36W f. hall plank ceilings, trunk. ht. 30 mm |
|
|
|
0210079 -
ZBS-SP.58-40
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 40 mm |
|
|
0210174 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 45 to 80mm clamping thickness |
|
|
0210163 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 23 to 55mm clamping thickness |
|
|
0203626 -
ZGH GLASHEBER
|
Rubber suction device for removal of the protective glass |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Ceiling light from the EIHLS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 26060 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP54 IP64 room side. Prepared for installation in various ceiling systems with corresponding fixing kit (accessory). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
EIHLS-L 154, 180, 254, 280, 424: all lamps are wired to L1. . EIHLS-L 354, 380: central lamp wired to L1, outer lamps to L2. . EIHLS-L 454, 480: both central lamps wired to L1, outer lamps to L2. . Other wiring arrangements are available on request.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0850633 |
| GTIN | 4029299491159 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food | Sports and multipurpose halls |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1548 mm |
| Dimension B | 624 mm |
| Dimension H | 81 mm |
| Dimension A1 | 1250 mm |
| Dimension A2 | 435 mm |
| Dimension BE | 604 mm |
| Dimension LE | 1529 mm |
| Net weight | 24.700 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 | IP64 room side |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 244.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 26060 lm |
| Luminaire efficiency | 107 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

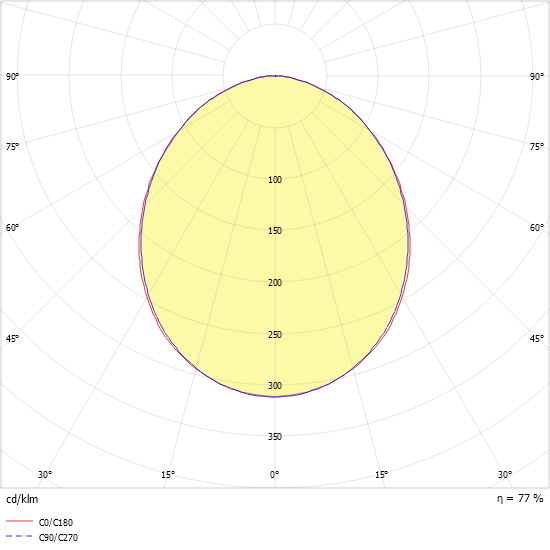

Light distribution curve
