ESHL-L 180/935-840 PSB / 0850614
Product Description
Ceiling light from the ESHL product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 7230 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Prepared for installation in various ceiling systems with the corresponding fixing kit (accessory).6-point fixing is required for installation with fixing kit 10-713 or 10-717 from a 3-lamp fitting. As there are 4 parts in the set, the corresponding number X must be determined:X = (n x 6) / 4, where n = number of luminaires and the result X is rounded to the next higher number. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ESHL. 180, 280 all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ESHL. 380: central lamp wired to L2, outer lamps to L1. (3 devices) . ESHL. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0850614 |
| GTIN | 4029299491005 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
Dimensions
| Dimension L | 1548 mm |
| Dimension B | 185 mm |
| Dimension H | 89 mm |
| Dimension A1 | 1250 mm |
| Dimension A2 | |
| Dimension BE | 165 mm |
| Dimension LE | 1529 mm |
| Net weight | 8.200 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 69.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 7230 lm |
| Luminaire efficiency | 105 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210713 -
ZBS-E UNI 10-713
|
Universal fixing kit, 23 to 55mm clamping thickness |
|
|
0210717 -
ZBS-E UNI 10-717
|
Universal fixing kit, 45 to 80mm clamping thickness |
|
|
0200255 -
ZIDV 58/5/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W,5x1.5mm², max.10A |
|
|
|
0200638 -
ZIDV 58/5/2.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 5x2.5mm², max. 16A |
|
|
|
0201202 -
ZIDV 58/3/1.5 DURCHVERDR.
|
Through wiring T26-58W+T16-35/49/80W, 3x1.5mm², max. 10A |
|
|
0210989 -
ZBS-SP158-40
|
Fixing kit 158W f. hall plank ceilings, trunk. ht. 40 mm |
|
|
|
0210988 -
ZBS-SP158-35
|
Fixing kit 158W f. hall plank ceilings, trunk. ht. 35 mm |
|
|
|
0210076 -
ZBS-SP.58-30
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 30 mm |
|
|
|
0210078 -
ZBS-SP.58-35
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 35 mm |
|
|
|
0210079 -
ZBS-SP.58-40
|
Fixing kit .58W f. hall plank ceilings, trunk. ht. = 40 mm |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Ceiling light from the ESHL product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 7230 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Prepared for installation in various ceiling systems with the corresponding fixing kit (accessory).6-point fixing is required for installation with fixing kit 10-713 or 10-717 from a 3-lamp fitting. As there are 4 parts in the set, the corresponding number X must be determined:X = (n x 6) / 4, where n = number of luminaires and the result X is rounded to the next higher number. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
ESHL. 180, 280 all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). ESHL. 380: central lamp wired to L2, outer lamps to L1. (3 devices) . ESHL. 480: both central lamps wired to L2, outer lamps to L1. (4 devices). Other wiring arrangements are available on request.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0850614 |
| GTIN | 4029299491005 |
General
| Product category | Ceiling light |
| Range of application | Sports and multipurpose halls |
Dimensions
| Dimension L | 1548 mm |
| Dimension B | 185 mm |
| Dimension H | 89 mm |
| Dimension A1 | 1250 mm |
| Dimension BE | 165 mm |
| Dimension LE | 1529 mm |
| Net weight | 8.200 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 69.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 7230 lm |
| Luminaire efficiency | 105 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

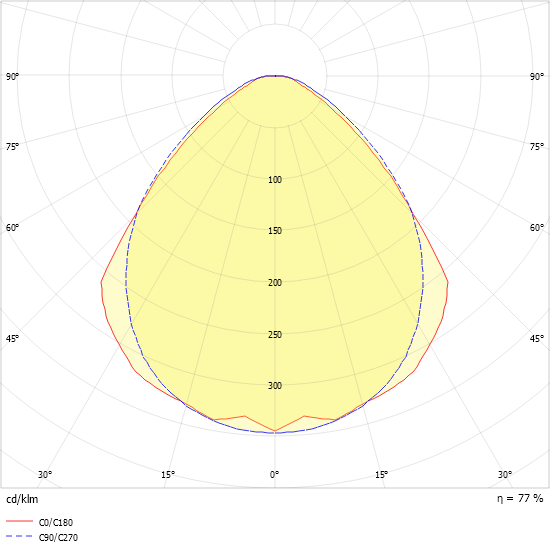

Light distribution curve
