ESLE1247FLWS840M9S0550 | 0828174
Product Description
Ceiling light from the ESLE product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5570 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3710 - 6500 lm. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0828174 |
| GTIN | 4029299614145 |
| Delivery commitment | on demand |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1247 mm |
| Dimension B | 310 mm |
| Dimension H | 58 mm |
| Dimension B2 | 167 mm |
| Dimension L2 | 1122 mm |
| Net weight | 6.400 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–43 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 38.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

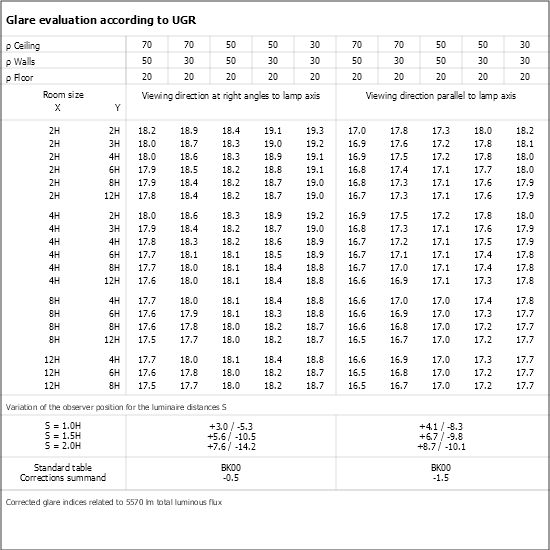

| UGR class | ≤ 19 |
| Rated luminous flux | 5570 lm |
| Maximum rated luminous flux | 3710 - 6500 lm |
| Luminaire efficiency | 147 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
